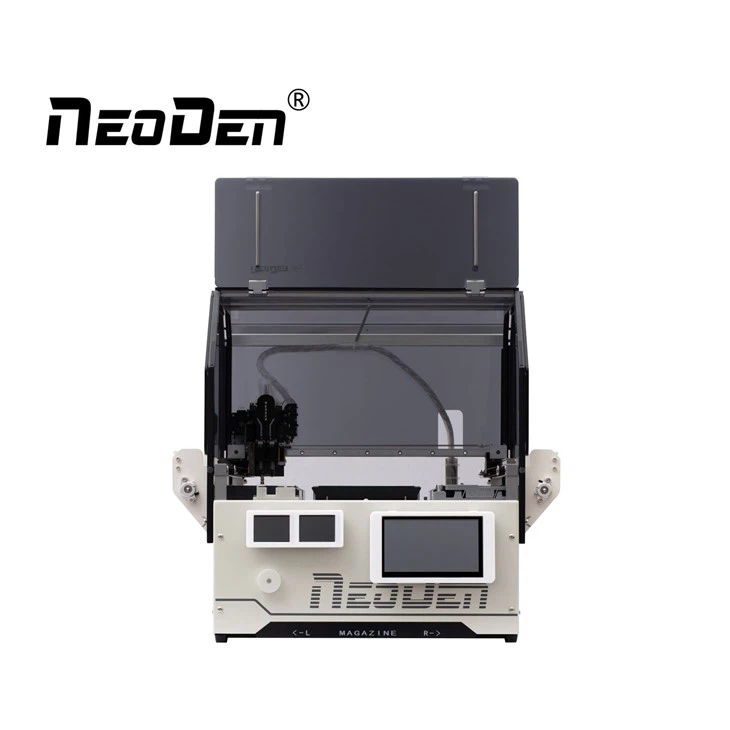

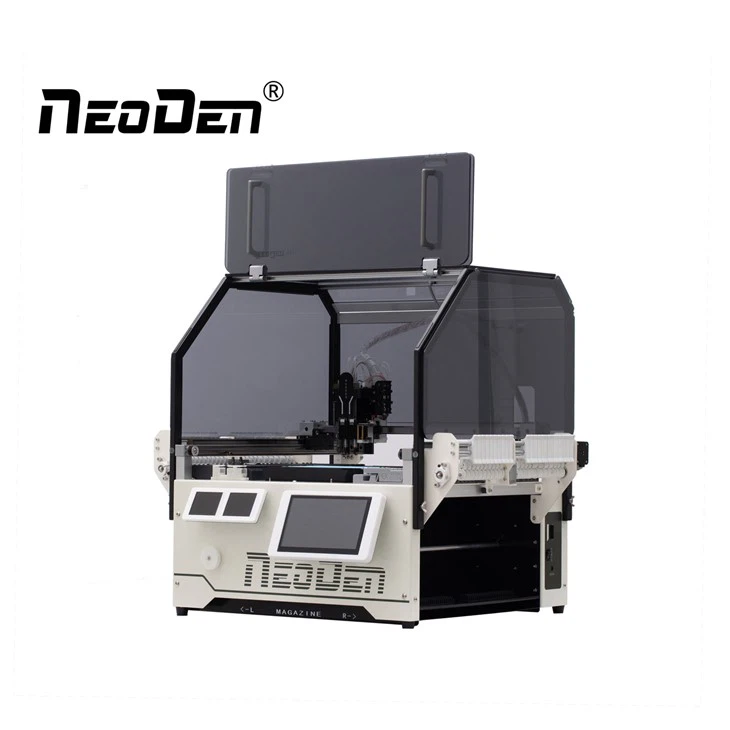

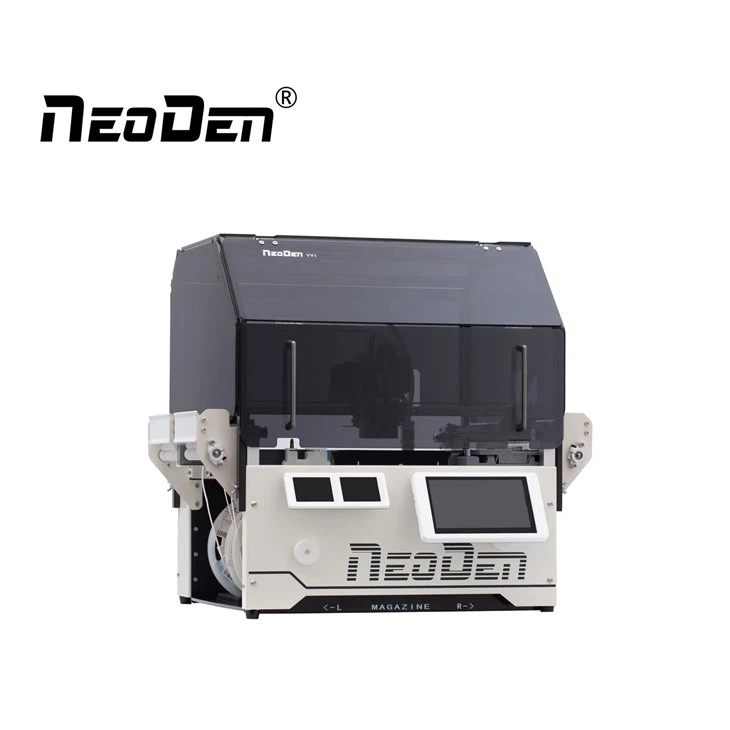

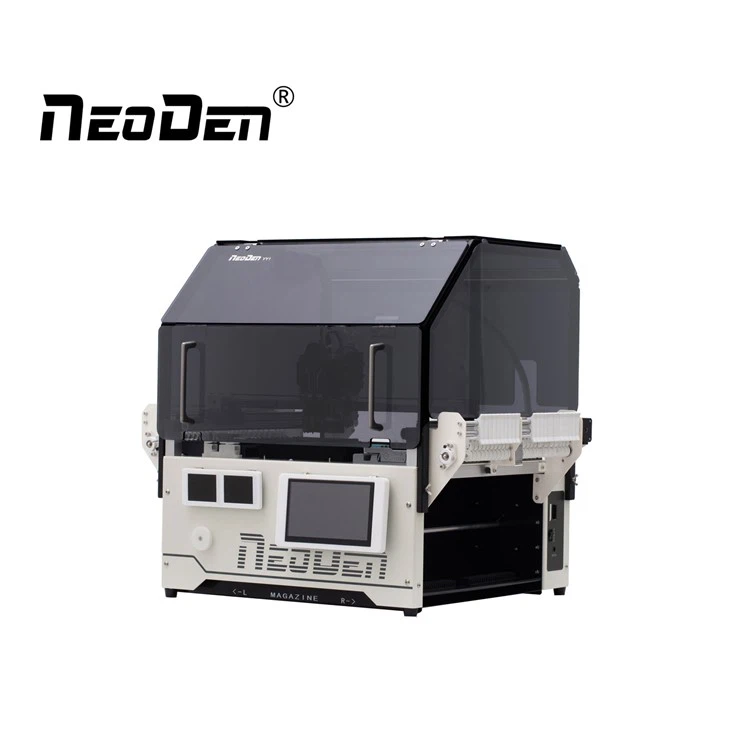

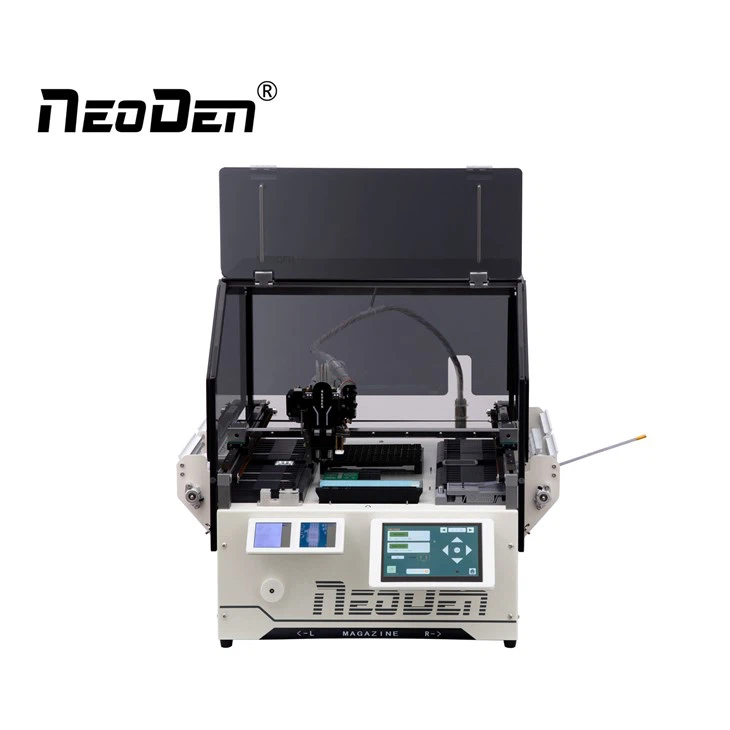

NeoDen YY1 Mini SMT Machine
neoDen YY1 mini SMT machine
Feature

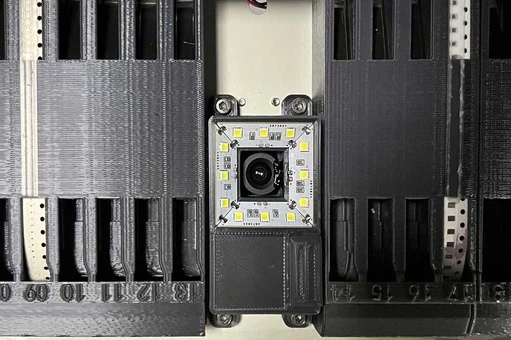

1. Dual vision system with built-in IC
Independent high-definition & high-speed dual vision recognition systems, as well as two cameras for real-time display the working status., the speed of processing components' photos becomes more efficient and accurate.

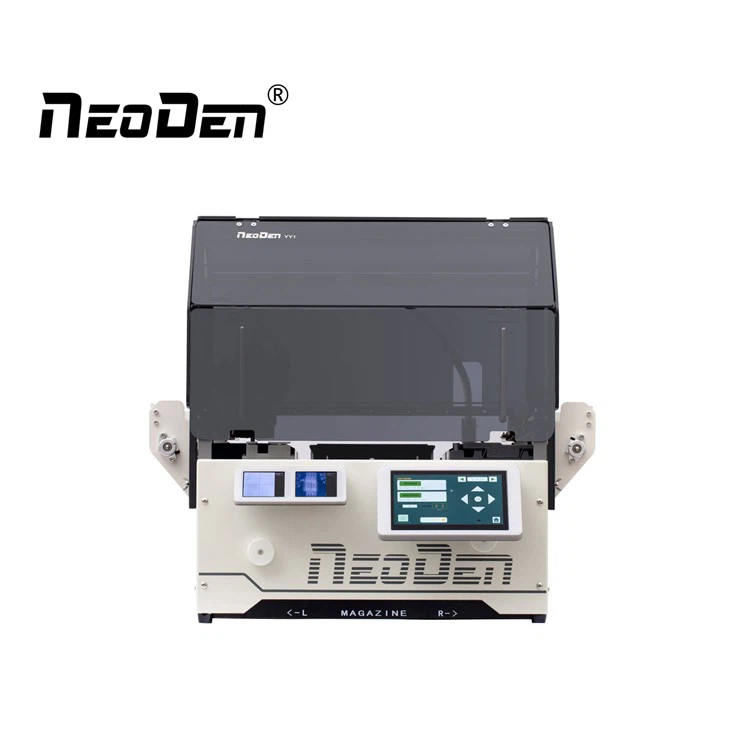

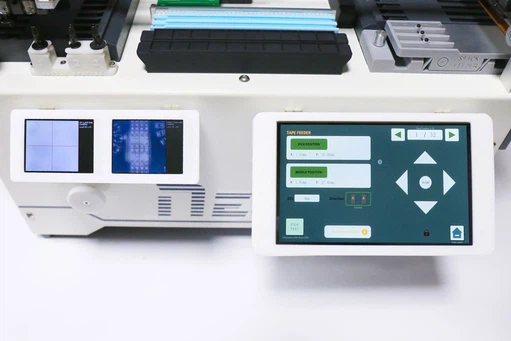

2. User friendly touch screen
It comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.
3. Easy to do maintenance
The whole machine is highly integrated one-board design, easy maintenance and debugging.
Few boards and pumps on the side of machine, very clear and simple cables.
The side acrylic covers are fixed on the machine with magnetic, which can be easily removed.
There are 4 flexible screws can be loosened to lower the height of machine's frame for shipping.
Specification

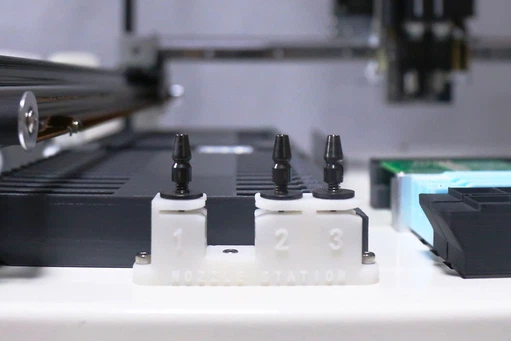

| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |

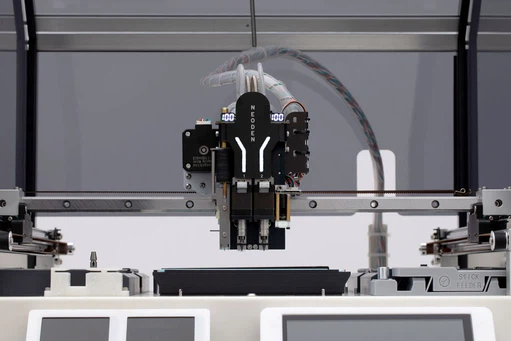

Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
|
Bulk Feeder: 19 |
Details
Why choose NeoDen?
1) The customer who operates on a small-to-medium
scale will tend to opt for such a small desktop automatic pick and place system which is very convenient and easy use even without a technical assistance.
2) If the number of boards does not exceed a few hundred per working day, such a small desktop placement may well be the best choice.
3) Consider about the cost efficiency, the small desktop placement reaches its maximum cost efficiency in the middle range of production volume, particularly where full-time working is not always guaranteed.
4) A further factor which affects the choice of system is the product mix: if the boards are all customer-specific boards, each with a short or unpredictable length of run, and if production must be flexible and capable of coping with frequent changes, such small desktop placement may be best.
5) Avoid human error, more accurate and faster.
Shipping Details
Packing: Non-fumigation Wooden case
Delivery: DHL/FEDEX/UPS/EMS/by sea/by air or customer appointed.
Payment: 100% T/T before shipment.
Warranty
NeoDen pick and place machines carry two years warranty.
This item is guaranteed to be as described. You must notify us within 14 days of receipt if there is a problem.
About Us
factory
Zhejiang Neoden Technology is a professional supplier with 10 years experience and provides one-stop SMT solutions for customers, key products are pick&place machine, reflow oven and solder printer. Currently, we have sold 10000+ sets of machines and exported to 130+ countries in the world, and have built good reputation in the market.
