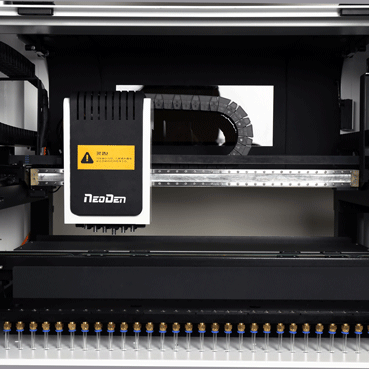

High Speed 6 Heads Pick And Place Machine
NeoDen7 has been discontinued. Looking for an upgrade?
Discover the NeoDen9 - a more powerful and superior alternative that's the ideal choice for your needs.
Feature of NeoDen7 High Speed 6 Heads Pick and Place Machine
1. 6 integrated flying vision + 2 fixed cameras.
2. Panasonic servo motor, position feedback from 2 micron linear scales coupled with a precision placement head
3. 6 simultaneous pick-up heads
4. Max speed up to 14,000cph
5. The GUI (graphical user interface) in its class using Windows based software allows programming in minutes
6. YAMAHA pneumatic feeders 8mm/ 12mm/ 16mm/ 24mm
7. Max. 64pcs tape feeders available
8. Support a wide range of compoents from 0402' to 40X40mm IC (lead pitch 0.4mm), kinds of LED, connectors etc.
9. Support cut tape, tube package or tray package component.
High Speed 6 Heads Pick and Place Machine Technical Parameters
| Nozzle head qty | 6 | Alignment | Flying vision camera |
| Drive motor | Panasonic servo motor A6 | Max speed | 14,000CPH |
| Max tape feeder capacity | 64 | Smallest component | 0402' |
| Other feeder | Tray feeder, vibration feeder (selectable) | Largest size | 40*40mm (lead pitch 0.4mm) |
| Placement area | 630*300mm (1200mm optional) | Max height | 10mm |
| Air source | 0.6Mpa | Power supply | 220v/ 110v |
| Packing size | 142*122*166.5cm | N.W/ G.W. | 280KG/ 360KG |
| Model | NeoDen7 |
High Speed 6 Heads Pick and Place Machine Placement videos
Main differences between NeoDen4 and NeoDen7
This new model is high Speed 6 Heads Pick and Place Machine which equipped with 6 flying cameras and 2 fixed cameras, the machines could take pictures of pickup components while moving, which saves a lot of time, so it moves in higher speed(13,000CPH to 4,000CPH), which is suitable for medium-mass production.
The NeoDen4 could handle 0201; the smallest component NeoDen7 could handle is 0402.
NeoDen4 supports 48 8mm electric feeders; NeoDen7 supports 64 8mm Yamaha pneumatic feeders.
No extra air compressor is required for NeoDen4, but an air compressor is necessary for NeoDen7.
NeoDen4 could support 48*8mm feeders as the maximum, but NeoDen7 could support 64*8mm as the maximum.
The NeoDen4 could handle 5mm high components, the NeoDen7 could do 10mm.
NeoDen provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, High Speed 6 Heads Pick And Place Machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need.
