SMT Machinery with Vision System NeoDen4
SMT Machinery With Vision System NeoDen4
Introduction
NeoDen4 is a flexible pick and place machine for all types of production.
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.
Application industry
household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc..
Check out video on YouTube
Spotlights
1. Vision system
An up-looking camera and a down-looking camera identifies and calibrates the different components simultaneously, and tremendously improves the accuracy of placement from 0201 to BGA.
2. Four precision heads
4 high-precision placement heads with ±180° rotation that adopts suspended, fully symmetric and high degree of coupling way, to ensure it can mount components with higher space, more gentle and more accurate.
3. Auto Electronic Feeders
Adopts feeding error corrections technique to help smooth the picking and reduce the deviation.
4. Auto Rails Achieve Continuous Placement
1.5m auto rails could be connected with universal conveyors to achieve continuous placement.
5. General conveyor is supported
With a conveyor port, One-Stop SMT production line can be setup, which is more time-saving and labor-saving.
6. Supports remote system upgrade
NeoDen will provide a life-long technical service and system upgrade.
Specification
| Model | SMT Machinery With Vision System NeoDen4 | Feeder Capacity | Tape feeder: 48(all 8mm) |
| Machine style | Single gantry with 4 heads | Vibration feeder: 5 | |
| Placement Rate | Vision on: 5,000CPH | Tray feeder: 5 | |
| Vision off: 10,000CPH(Optimum) | Component Range | Smallest Size: 0201 | |
| Alignment | Stage Vision | Largest Size: 32x32mm (Lead Pitch 0.5mm) | |
| Max Height | 5mm | Board Dimension | Maximum: 310 x 1500mm |
| Rotation | ±180° | 140 x1500mm (With 1 waffle Tray) | |
| Main Control | GUI | Electricity Supply | 110V/220V |
| Power | 180W | Weight | Net Weight: 60kgs |
| External Dimensions | Machine size: 870(L)x680(W)x480(H)mm | Gross Weight: 80kgs | |
| Packing size | 940(L)x740(W)x600(H) |

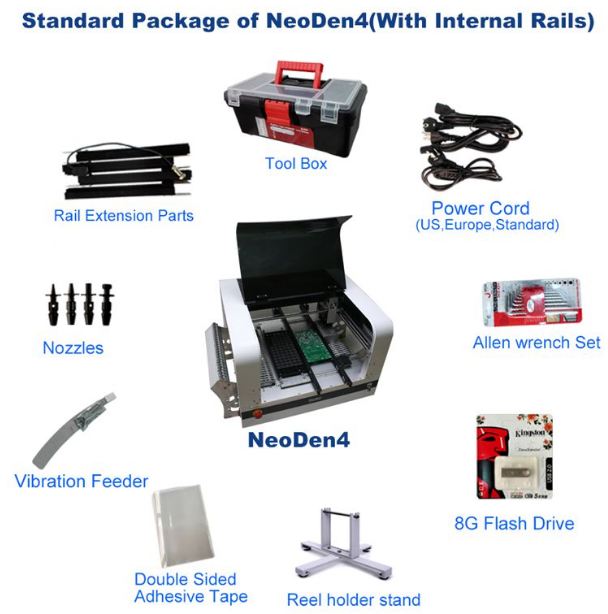

Accessories
Packaging
Payment and Delivery
Payment method: PayPal or Wire transfer
The default delivery method is via DHL (door to door), unless specific requirement from customer.
Delivery time: 7 - 10 working days.
Warranty
The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply. NeoDen will provide online Q/A and troubleshooting support and technical advice service.
