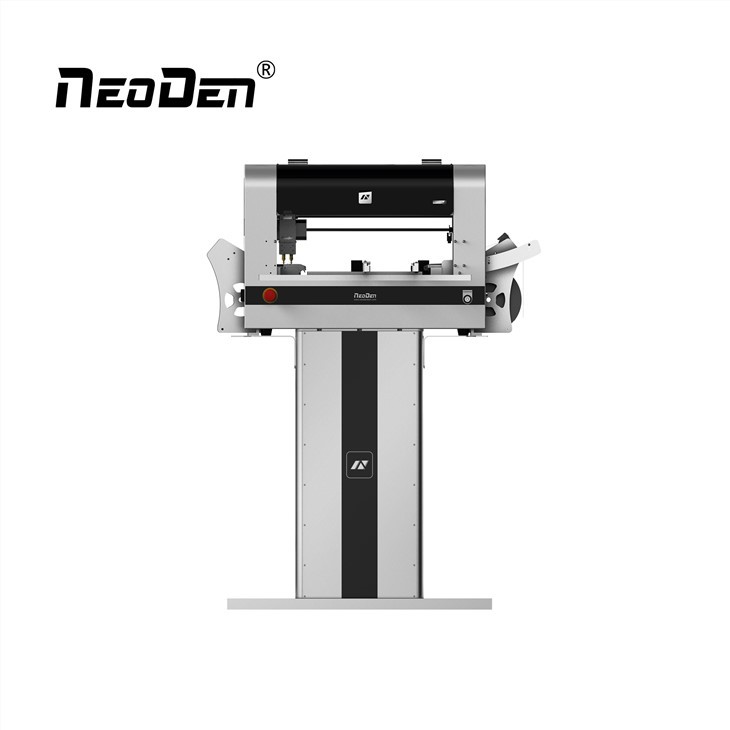

Automatic SMT Desktop Pick and Place Machine
■ Placement Rate up to 4,000CPH
■ Smallest size of 0201 to a largest size of TQFP240
■ Feeder Capacity of 48 pcs Feeders
NeoDen4 is designed to satisfy demands for high precision, high capacity, stable performance, and low cost. Its low cost makes it a great breakthrough for small and medium-sized enterprises with a limited budget.
The device has a lightweight body and occupies a small area. It features a user-friendly interface that does not require a professional SMT engineer, making it an entry-level device. This makes it especially suitable for laboratory research and development, samples, and prototyping.
Product Details ofAutomatic SMT Desktop Pick and Place Machine
Description
NeoDen4 chip mounter is a high precision SMT pick& place equipment for electronic components placement on kinds of printed circuit board.
It's a newly-designed benchtop machine, superly welcomed in Europe and USA, no matter state key labs, universities education or personal electronic hobbyist.
We have supplied service to more than 110 countries with good feedback about machine and NeoDen professional service.
Features
-
Single gantry with 4 smt nozzle heads, no need to replace nozzle frequently.
-
With internal conveyor installed, PCB can be fed into machine automatically. with conveyor you can place overlong LED board 1.2m.
-
Smoothly small and light electronic feeder, not heavy ones like YAMAHA feeder.
-

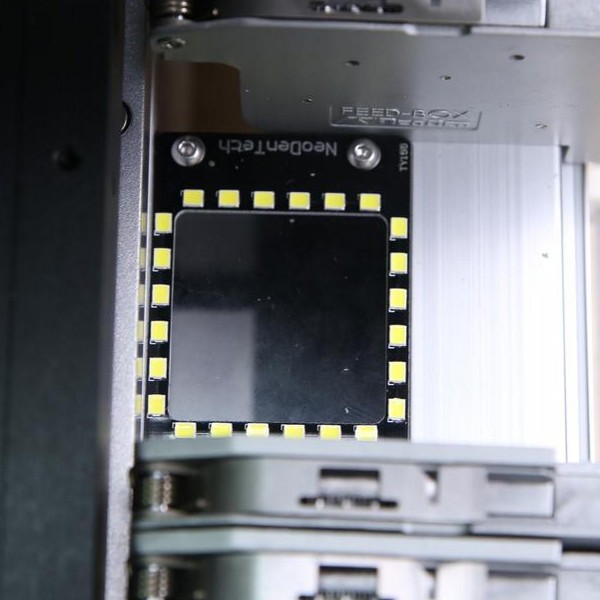

Support smallest 0201, and big IC (BGA, QFN, QFP etc.) with an uplooking camera and a down looking camera.
-
With smt conveyor connector interface, which used to connect with belt conveyor to build up automatic SMT Assembly Line.
Specification
| Product name | NeoDen4 pick and place automation machine | Component Range | Smallest Size: 0201 |
| Machine Style | Single Gantry with 4 Heads | Biggest Size: TQFP240 | |
| Placement Rate | 4,000CPH | Max Height: 5mm | |
| External Dimension | L 680*W 870*H 460 mm | Feeders | 48pcs |
| Max applicable PCB | 290 * 1200 mm | Average working power | 220V/160W |

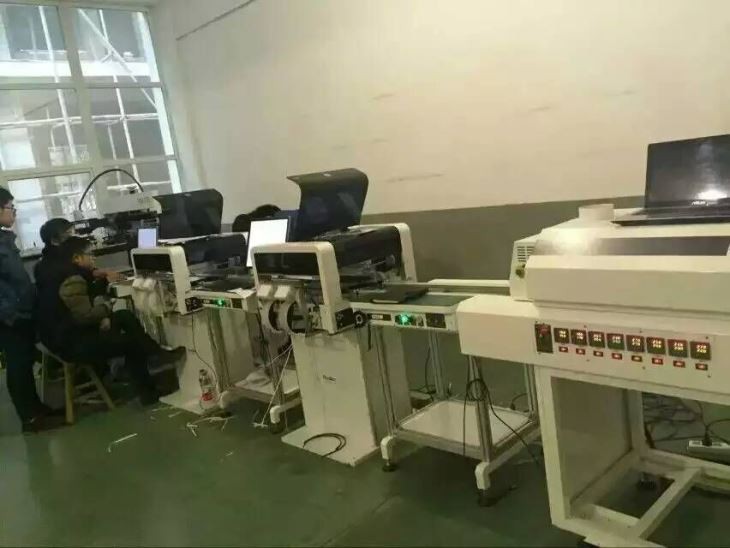

NeoDen4 SMT production line video
About Us
Factory
certification
exhibition
FAQ
Q1: Which language is the software?
A: English or Chinese.
Q2: Do you provide software updates?
A: Customers who buy our machine, we can offer free upgrades software for you.
Q3: What is the system of the machine?
A: WindowXP for NeoDen3V and NeoDen4.
Linux for NeoDen K1830.
Q4: What is the payment term?
A: We accept: T/T, VISA, PAYPAL, WEST UNION, BANK TRANSFER.
Q5: What about the lead time?
A: 5-7days for NeoDen3V and NeoDen4.
20-25days for NeoDen K1830.
Q6: What is the shipping method?
A: We support shipping by sea/by air/by door to door express.
Q7: What is the package of the machine?
A: Packing: fumigation-free wooden case package. Carton for accessories.
Q8: What about the warranty?
A: The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply.
