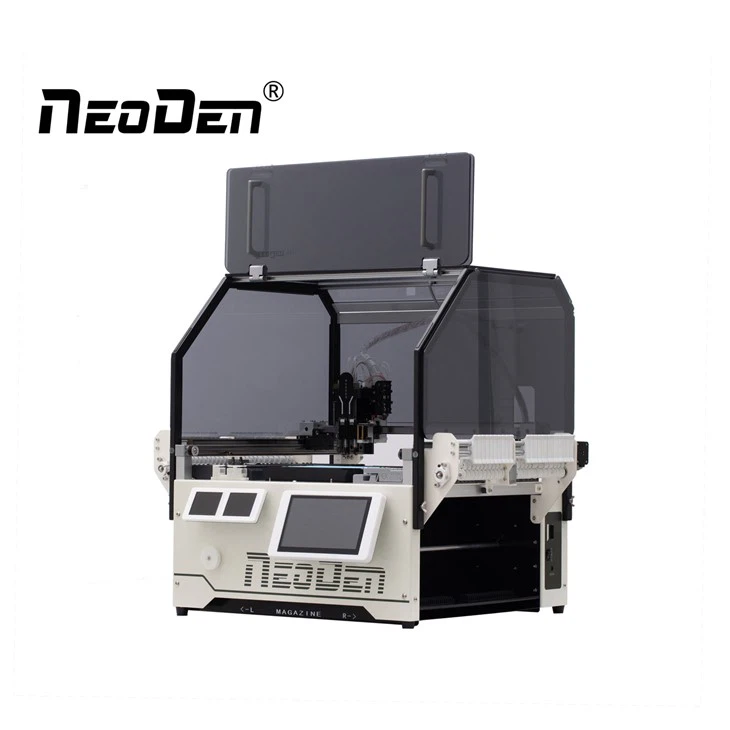

DIY Manual Pick and Place Machine
DIY Manual pick and place machine
Description
Automatic nozzle changer help realizing nozzles changed flexibly.
Patent-protected & new needle module is specially designed based on the linear rail with high reliability and durability.
Fully transparent acrylic covers with magnetic mode for a high level of ease of disassembly.
The newly-designed stick feeder with its compact shape, is perfectly compatible with the tape feeder system.
Technical parameter
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm(wooden box) | ||
|
Bulk Feeder: 19 |
Payment & Delivery
1) Payment method: PayPal, T/T.
2) The default delivery method is via DHL (door to door), unless specific requirements from the customer.
3) Delivery time: 3 - 4 working days.
Warranty
The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply.
NeoDen will provide an online Q/A and troubleshooting support and technical advice service.
Why Choose NeoDen
1. Key products: PNP Machine, Reflow Oven, Stencil Printer, and Accessories.
2. Production Lines: 8 Sets Production Lines with 300 Sets Monthly Capacity
3. R&D Team: 30 Engineers with more than 50 patents
4. Oversea Agents: India, Japan, Netherlands, South Korean, Iran, Turkey, Brazil, and Chile, Neoden's sales network has covered more than 110 countries.
5. Strict QC: We have a strictly QC system to ensure its stable and consistent quality, before shipping to you we will also for last QC to help you control it.
About Us
factory
certification
exhibition
Hot Tags: diy manual pick and place machine, China, manufacturers, suppliers, wholesale
