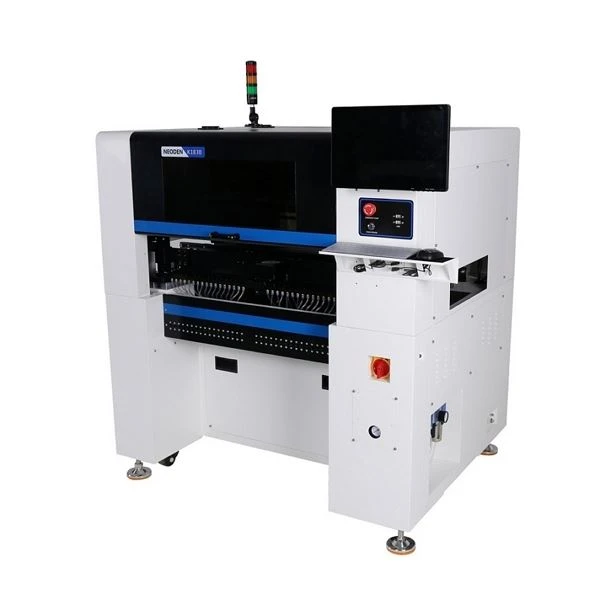

8 Heads High Accuracy SMT Pick and Place Machine
Feature
8 heads high accuracy SMT pick and place machine NeoDen K1830 runs on highly stable and secure Linux operating system.
Double mark cameras to reach at extreme end feeders for better calibration.
High resolution and high speed component camera system improves the overall speed of the machine.
8 working heads
The machine runs on a Linux operating system
Double mark cameras to reach at extreme end feeders for better calibration
High resolution and speed component camera system
Ethernet communication interface for all internal signal travel
Closed-loop servo control system with feedback
Picking location of pneumatic feeder can be calibrated automatically and promptly
PCB location can be calibrated automatically and promptly
Specification
| Product name | NeoDen K1830 8 heads high accuracy SMT pick and place machine | Max Placement Speed | 16,000CPH |
| Nozzle Q'ty | 8pcs | Voltage | 220V/50HZ & 110V/60HZ |
Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) | PCB Transfer Direction | Left→Right |
Max PCB size | 540*300mm (In Single Step) | Net Weight | 280Kgs |
| Placement accuracy | 0.01mm | Gross Weight | 360Kgs |
Details
Warranty
The complete machine has a warranty period of TWO years(Feeder-ONE year)from the time of purchase and lifelong service support as well as a long-term factory price supply.
We provide an online Q/A and troubleshooting support and technical advice service.
About Us
NeoDen Technology Co., Ltd., is a high-tech corporation located in Huzhou, China. Our primary products are desktop automatic pick and place machines.
In China, we are the leader in this technology with CE and more than 30 patents registered.
