Starting From Scratch: Mastering The Complete Process Of NeoDen N10P Import File Programming

In today's rapidly evolving electronics manufacturing landscape, efficient and precise placement processes have become a core competitive advantage for R&D teams and small-to-medium batch production enterprises seeking to boost productivity and yield rates. As a leading SMT equipment brand, NeoDen's N10P pick and place machine stands out for its high precision, exceptional stability, and user-friendly operation logic, making it the ideal choice for engineers, makers, and small-to-medium EMS manufacturers.

This guide will take you from scratch to mastering the complete "import file programming" workflow for the NeoDen N10P SMT placement machine. It empowers you to achieve seamless transition from PCB design to automated placement in the shortest possible time.

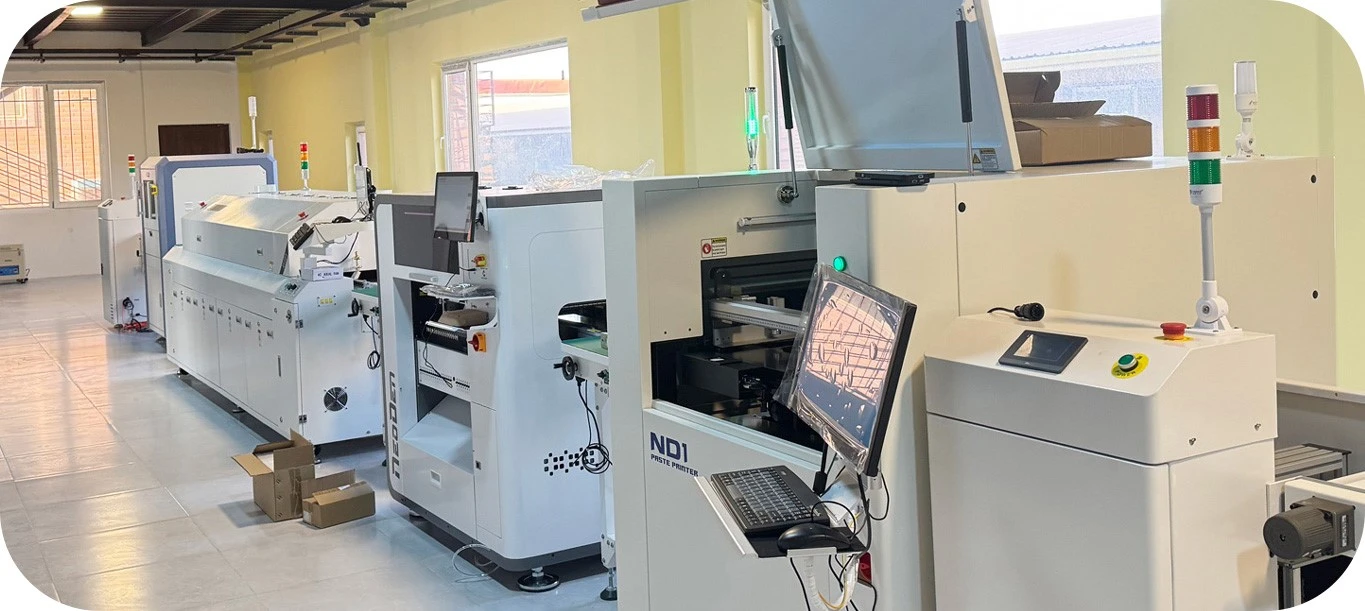

smt-line

NeoDen N10P supports two primary programming methods: manual programming and file import programming. For users possessing PCB design files (such as Gerber or Pick-and-Place files), file import programming is clearly the more efficient and precise choice:

Saves over 90% programming time: Eliminates the need to manually position each component.
Eliminates human positioning errors: Coordinates are directly sourced from design software, ensuring higher precision.
Supports batch modifications and reuse: Quickly adjust parameters via Excel or package libraries.

Next, we will detail the entire process through seven steps: Power-Up Preparation → Coordinate Import → Component Matching → Feeder Placement → Automatic Optimization → First Board Verification → Full Production.

Air supply pressure: Ensure ≥ 0.6 MPa (recommended ≥70L air tank).
Grounding and power: Equipment must be effectively grounded, power supply must meet nameplate specifications.
Remove Transport Protections: Before startup, remove rust-proof protective film and auxiliary securing straps/screws from X/Y-axis lead screws and track width adjustment mechanisms (see Figures A-E in NeoDen N10P User Manual).

Warning: Failure to remove protective film may cause lead screw jamming, equipment alarms, or damage!

Turn on the power switch for self-test.

On the software main interface, perform:

Pick-up head initialization (Applications → Pick-up Head Initialization)
Coordinate initialization (Applications → Coordinate Initialization, i.e., XY-axis homing)

Note: Never manually move the pick-up head before XY-axis homing to prevent magnetic scale data corruption.

Navigate to Applications → Machine Warm-up, select speed, and run for 10 minutes.
Warm-up reduces minor thermal deformation of lead screws/guide rails, enhancing placement accuracy.

On the File List page, click "New," enter the filename (e.g., Project_A_Top).

Enter the "1. Board" editing interface and fill in the following key parameters:

Parameter	Description
PCB Length/Width	Overall board dimensions including process edge (Unit: mm)
Process Edge Width	Enter value if present, enter 0 if absent
Safety Height	Default 4mm, recommended as Thickest Component Height + 0.5mm
Feed Mode	Typically select "Three-Track" (suitable for ≤500mm PCBs)
Track Width	Software automatically calculates as PCB width + 1mm; manually fine-tune if needed
Clamping Delay	Recommended ≥500ms (ensures pins level PCB before clamping)

Tip: For panelized PCBs, specify X/Y direction quantities and offsets in "Panel Settings" and generate a panel list.

N10P supports importing placement coordinate files for both Top and Bottom layers (typically in CSV format).

Export Pick-and-Place files from EDA software such as Altium Designer, KiCad, or PADS.
Ensure the file contains: Pin Number, Package, X/Y Coordinates, Angle.

Insert a USB drive into the device's USB port.
In the file editing interface, click "Import Top Layer" (Front) or "Import Bottom Layer" (Back).
Select the corresponding CSV file and click Open.
Data will automatically populate the "Steps" list and be categorized by package type in the "Components" list.

Tip: Click "Open in Excel" to batch-edit parameters like coordinates and angles directly in the spreadsheet before saving back to the device.

After import, the system attempts to automatically match component parameters from the package library. Unmatched components require manual supplementation.

In the "2. Components" interface, unmatched components display Length/Width/Thickness = 0, Suction Nozzle = Empty.
Delete components not requiring placement (e.g., test pads, dummy components).

For each unmatched component, enter or obtain the following information:

Length, width, thickness: Automatically recognized using the "Photo Inspection" feature (see below).
Nozzle model: Refer to the "Common Nozzle Types" table.

Resistor/capacitor types → Flying probe
SOP/QFP → IC photo capture
High-precision IC → IC pre-rotation

Photo inspection operation:

In the "3. Feeders" interface, click "Pick" to pick up the component.
Click "Photo Detection," adjust Brightness, Exposure, and Aperture until the component is accurately framed.
Click "OK" to automatically populate Length/Width/Brightness values.

Note: Position 33 in the nozzle library is reserved for calibration. Do not place regular production nozzles here.

In the "3. Feeder" interface, double-click the "Package/Spec" column and drag components to corresponding stacks (Front Stacks 1-33, Rear Stacks 34-80).
To lock a specific material position (e.g., for error-proofing), check "Lock".

Use the "Batch Edit Pick-up Position" function for efficient completion:

Check "Auto Open Feeder".
Select the pick-up head (recommended: install CN065 or smaller nozzles on pick-up head 1/8).
Click "Pick-up Head Down", visually adjust the Z-value (pneumatic feeder ≈ -0.5mm, electric ≈ -1.0mm).
Click "Save and Next" to calibrate all feeders sequentially.
Upon completion, a buzzer will sound. Click "Save and Exit".

Note: Tray components require additional setup for the top-right corner position and row/column count.

After completing component and feeder settings, click "Auto Program":

The software will allocate pick-up head resources based on nozzle inventory (39 slots).
Automatically plan the optimal placement sequence to minimize idle time.
Generate nozzle-changing plans to prevent placement head conflicts.

Recommendation: If a placement head malfunctions, disable the corresponding head in the auto-programming interface.

Note: After clicking Auto-Program, the system will rearrange feeder positions based on efficiency optimization. Users must reposition feeders according to the software-generated updated 'Feeder List'.

Go to File Processing Page → Configuration → Check "Simulated Placement".

Click "Start" and observe whether the pick-and-place head's movement trajectory is reasonable.

Cancel simulation and place the first PCB.

Key inspection points:

Component specifications and polarity accuracy.
Placement position offset (verify using Mark camera "View" function).
Presence of tombstoning, component flipping, or ejection failures.
Adjust pick height, placement height, and vision parameters based on issues.

After confirmation, click "Start" to enter continuous placement mode.

Monitor ejection rate and processing logs in real-time to ensure stability.

To ensure the N10P's sustained high-efficiency operation, adhere to these maintenance guidelines:

Daily: Clean nozzles, inspect air pressure, verify no foreign objects on tracks.
Monthly: Clean and lubricate X/Y-axis lead screws and linear guides (refer to Chapter 9 of the manual).

Strictly Prohibited:

Touching the Mark camera, flying camera, or IC camera
Placing magnetic objects near the magnetic scale
Two operators simultaneously using the equipment

Through these 7 steps, you have mastered the entire programming workflow for NeoDen N10P SMT placement machine file import. From coordinate import to first board verification, the entire process can be completed within 30 minutes, significantly reducing manual intervention and enhancing placement consistency.

NeoDen delivers not only exceptional hardware but also ensures seamless SMT production line operation through our global technical support network. Experience the N10P today and elevate your SMT production to new heights of intelligence and efficiency!
