Solder Printing Machine
Specification

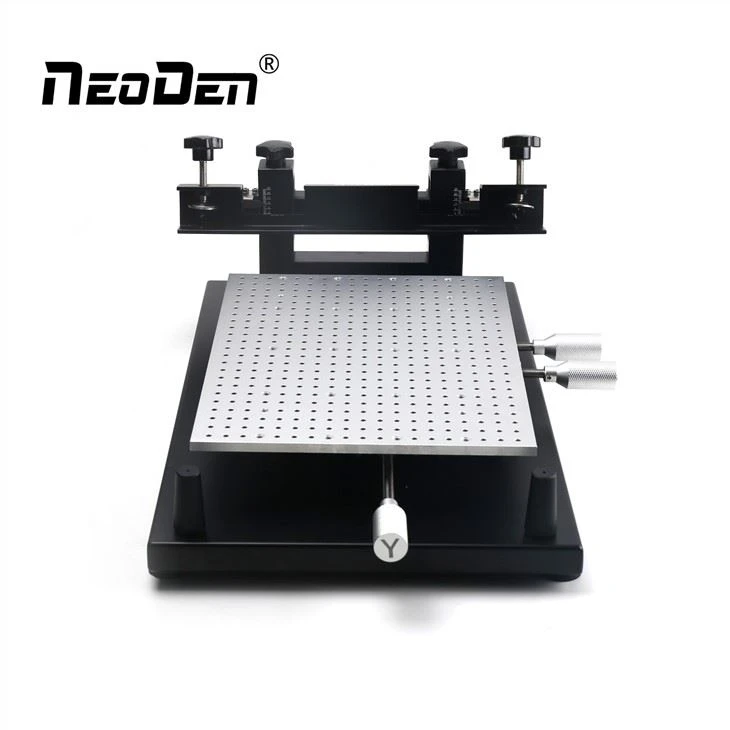

Product name | NeoDen FP2636 Solder Printing Machine |
Max PCB Size | 11"× 15" - 280×380mm |
Min PCB Size | 0.4"× 0.2" - 10×5mm |
Screen Stencil Size | 10"× 14" - 260×360mm |
Printing Speed | Labor control |
PCB Thickness | 0- 0.8" - 0-20mm |
Platform Height | 7.5" - 190mm |
Repeatability | ±0.01mm |
Max Rotation Angle | ±15° |
| Positioning Mode | Outside/Reference Hole |
Features
Adjustment handle
1. T screw rod regulating handle, ensure adjustment accuracy and levelness of PCB fixed plane, minimum lead pitch achieved 1mm.
2. Letter mark for each regulating handle, better and easier to operate.
Convenience operating
1. Straight damping shaft, ensure the stencil fixed frame can be fastened at random angles, to improve convenience while operating.
2. L supports and pins to fix PCB, applicable for multiple types PCBs’ fixation and printing, more flexible and convenient.
Rulers of stencil fixed frame
Rulers of stencil fixed frame for reference lines,ensure the levelness between stencil and PCB.
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery. We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
Related Products
|
|
|
| Pick and place machine NeoDen K1830 | SMT Conveyor | Reflow oven NeoDen IN6 |
Q1: How your quality guarantee?
A: We have 100% quality guarantee to customers.
We will be responsible for any quality problem.
Q2: Can we visit your factory before place the order?
A: Yes, very welcome that must be nice to set up good relationship for business.
Q3: Can l visit your factory?
A: By all means, we warmly welcome your arrival.
Before you take off from your country, please let us know.
We will show you the way and arrange time to pick you up if possible.
