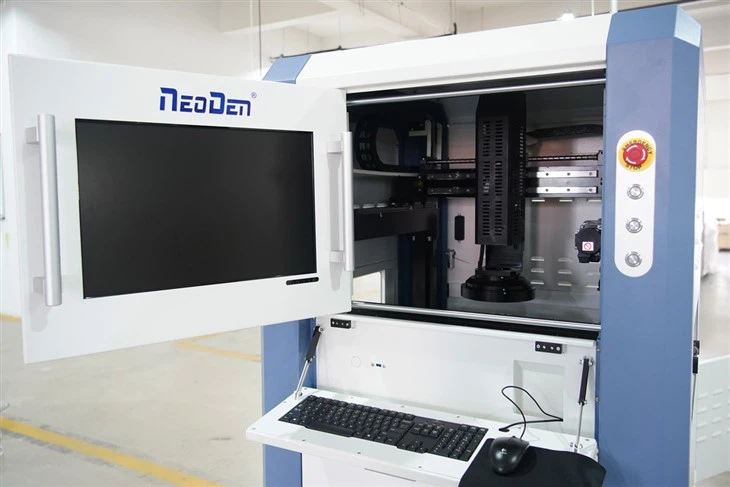

SMT Tester
SMT Tester
Description
Calculation Method
Machine learning, color calculation, color extraction, gray scale operation, image contrast.
Inspection mode
PCB fully covered, with array and bad marking function.
Optical system
Camera: 5 million pix full color high speed industrial digital camera ,20 million pix camera optional.
Lens resolution: 10um/15um/18um/20um/25um, can be custom-made.
Lighting source Annular stereo multi-channel color light, RGB/RGBW/RGBR/RWBR optional.
Computer system: CPU Intel i7 3.40GHz
Specification
| Product name | SMT Tester | Moving speed | 830mm/Sec(Max) |
| Model | ND800 | PCB height from ground | 900±20mm |
| PCB Thickness | 0.3mm~5mm | Machine dimension | L980 * W980 * H1620 mm |
| Max. PCB Size (X x Y) |
400mm x 360mm |
XY positioning accuracy | ≦8um |
| Min. PCB Size (Y x X) | 50mm x 50mm | Power | AC220V, 50/60Hz, 1.5KW |
| Weight | 550Kg |
Details
Our Service
Provide product instructions
YouTube video tutorials
Experienced after-sales technicians, 24 hours online service
With our own manufactory and more than 10 years of experience in SMT industry
We can provide customers with the most cost-effective products.
If you need, please feel free to conatct us for more information.
Provide one-stop SMT assembly production line
