AOI Machines
AOI machines
Description
Calculation Method
Machine learning, color calculation, color extraction, gray scale operation, image contrast.
Inspection mode
PCB fully covered, with array and bad marking function.

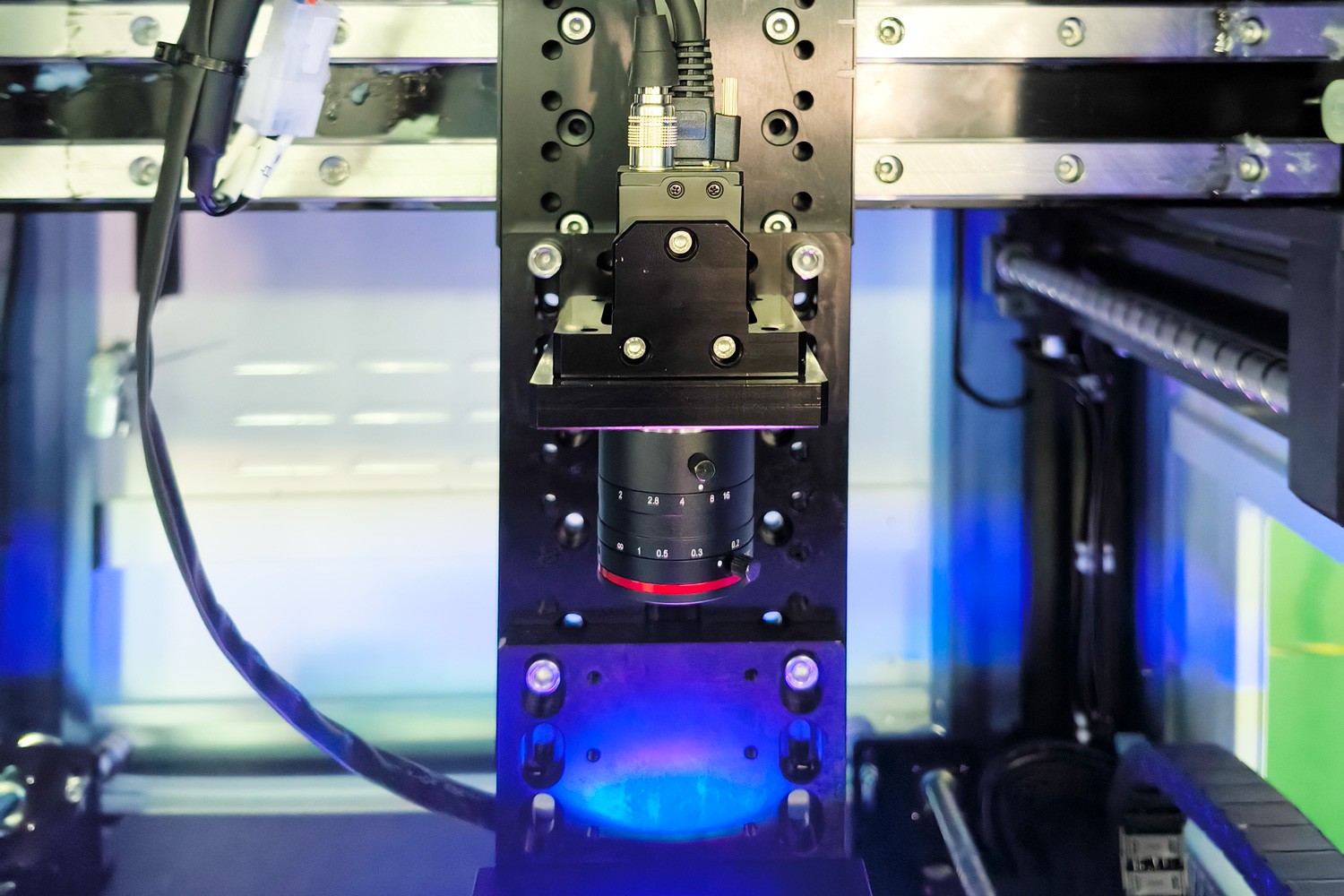

Optical system
Camera: 5 million pix full color high speed industrial digital camera ,20 million pix camera optional.
Lens resolution: 10um/15um/18um/20um/25um, can be custom-made.
Lighting source Annular stereo multi-channel color light, RGB/RGBW/RGBR/RWBR optional.
Computer system: CPU Intel i7 3.40GHz
Specification
| Product name | AOI Machines | Moving speed | 830mm/Sec(Max) |
| Model | ND800 | PCB height from ground | 900±20mm |
| PCB Thickness | 0.3mm~5mm | Machine dimension | L980 * W980 * H1620 mm |
| Max. PCB Size (X x Y) |
400mm x 360mm |
XY positioning accuracy | ≦8um |
| Min. PCB Size (Y x X) | 50mm x 50mm | Power | AC220V, 50/60Hz, 1.5KW |
| Weight | 550Kg |

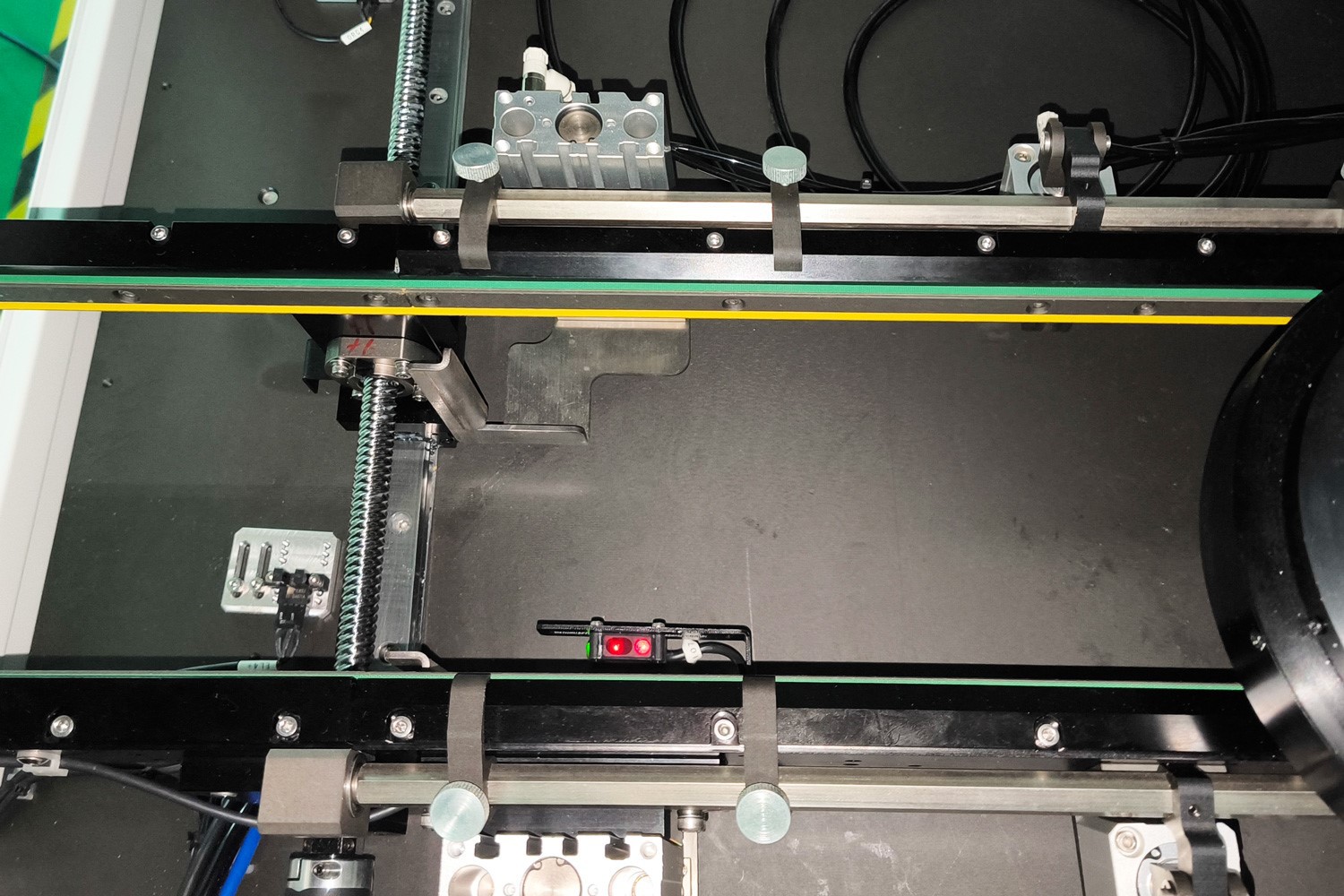

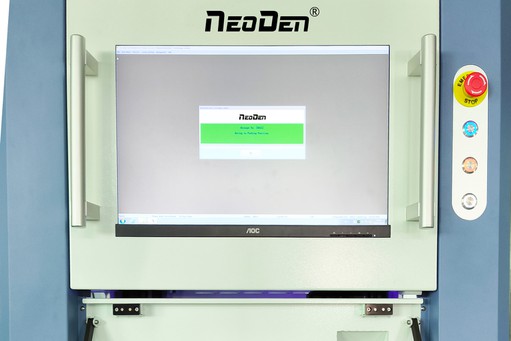

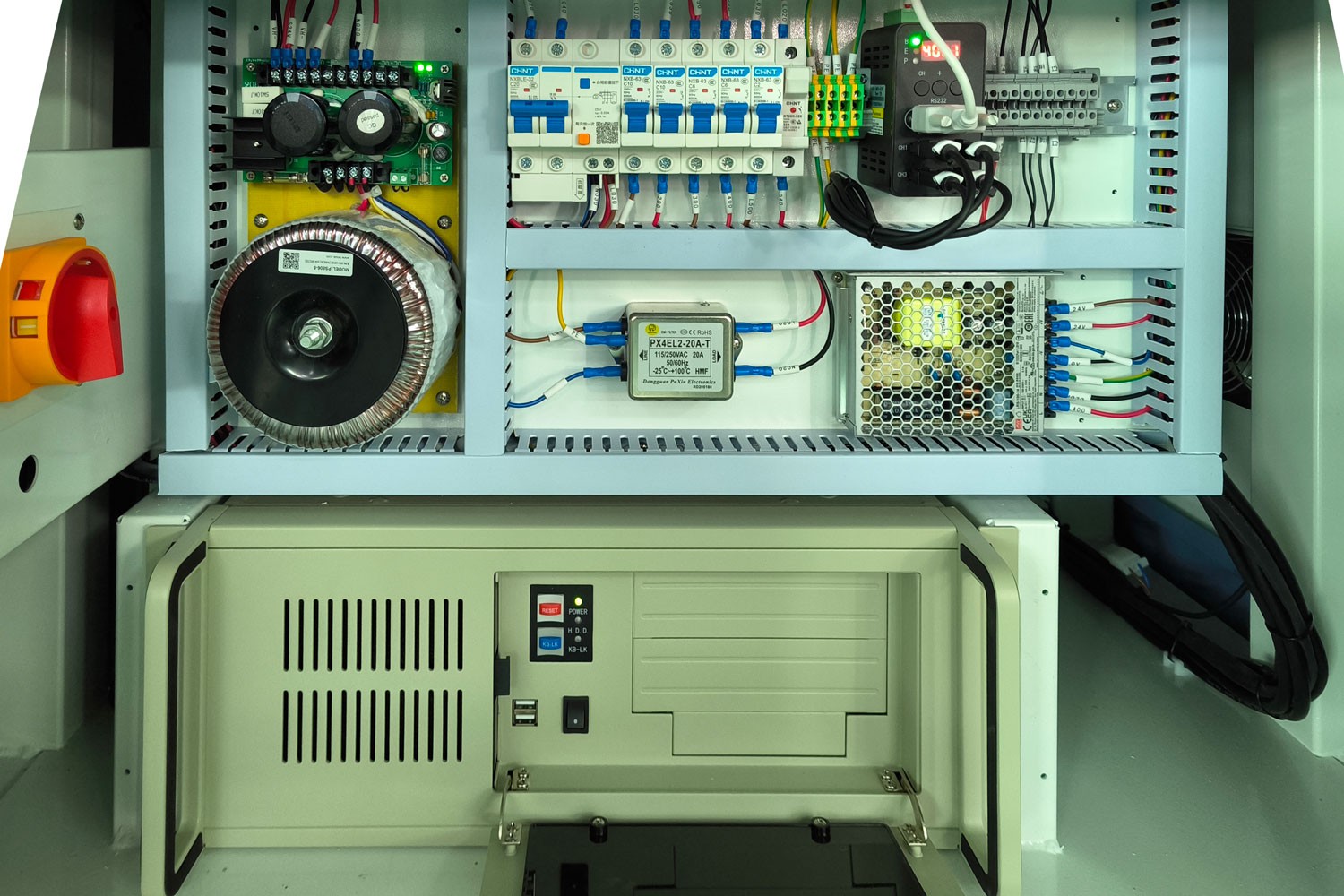

Details
Our Service
Provide product instructions
YouTube video tutorials
Experienced after-sales technicians, 24 hours online service
With our own manufactory and more than 10 years of experience in SMT industry
We can provide customers with the most cost-effective products.
If you need, please feel free to conatct us for more information.
Provide one-stop SMT assembly production line
FAQ
Q1. How long is your delivery time?
A: The general delivery time is 15-30 days after receiving your order confirmation.
Anther, if we have the goods in stock, it will only take 1-2 days.
Q2. Which payment form you can accept?
A: T/T, Western Union, PayPal etc.
We accept any convenient and swift payment term.
Q3. What's is your shipping service?
A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.
About us
exhibition
certification
factory
Company Profile
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
In our global Ecosystem, we collaborate with our best partners to deliver a more closing sales service, high professional and efficient technical support.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist everywhere.
If you need, please feel free to contact us for more information.
