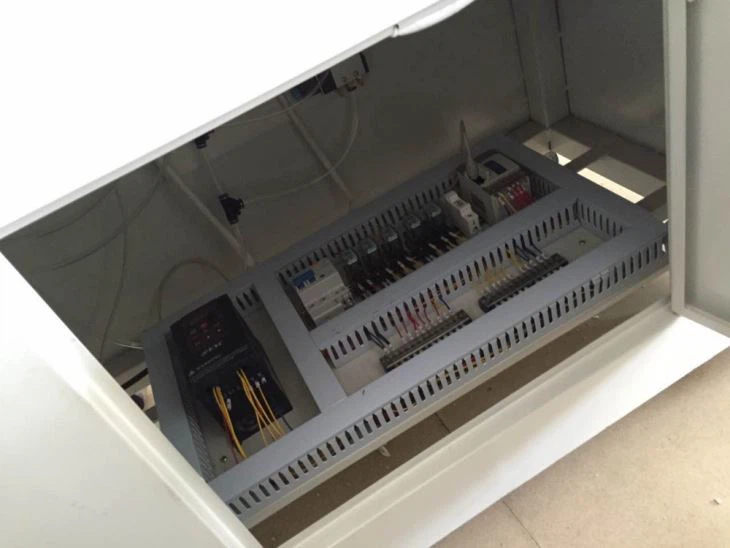

SMT Stencil Printer for PCB Assembly
Technical Data
Items | NeoDen YS350 | Adjusting for table | front/rear±10mm, left/right±10mm |
PCB size | Max: 400*240mm | Printing Accuracy | ±0.2mm |
Printing area | 500*320mm | Repeating Accuracy | ±0.2mm |
PCB fixed system | Pin positioning | PCB thickness | 0.2-2.0mm |
Frame size | L(550-650)*W(370-470) | Air source | 4-6kg/c㎡ |
Power supply | AC220V 50HZ | Net weight | 230kg |
Dimension | L800*W700*H1700 | Gross weight | 280KG |
Packing size | 1050*900*1850 |
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
FAQ
Q1: When can I get the quotation?
A: We usually quote within 8 hours after we get your inquiry.
If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.
Q2: How far is your factory from the airport and train station?
A: from airport about 2 hours by car, and from train station about 30 minutes.
We can pick up you.
Q3: Do you have a export licence?
A: Yes.

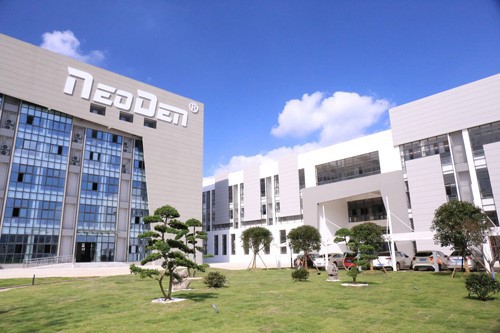

About Us
NeoDen is a reliable manufacturer with 10 years' experience.
Until now, we have exported to more than 130 countries and 10000+ sets of machines all over the world, and have built a good reputation in the market.
We are in a good position not only supply you high-quality machines, but also excellent after-sale service.
Well trained engineer will provide any technical support to you.
