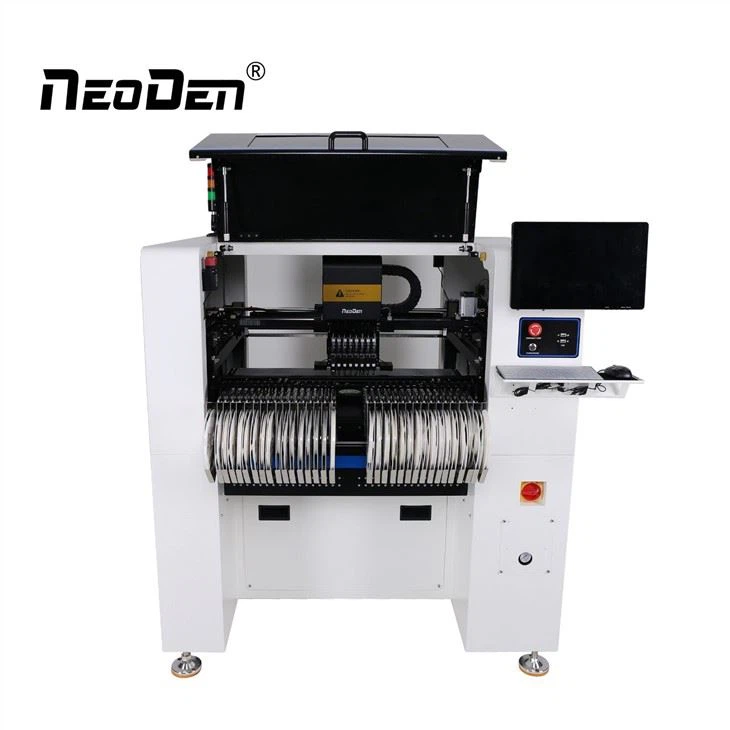

NeoDen K1830 SMT Pick and Place Robot Machine
Detail
| Product name | NeoDen K1830 SMT pick and place robot machine | Max Placement Spee | 16,000CPH |
| Nozzle Q'ty | 8pcs | Voltage | 220V/50HZ & 110V/60HZ |
| Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) | PCB Transfer Direction | Left→Right |
| Max PCB size | 540*300mm(In Single Step) | Net Weight | 280Kgs |
| Placement accuracy | 0.01mm | Gross Weight | 360Kgs |
Specification
1. 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
2. Machine runs on highly stable and secure Linux operating system.
3. Double mark cameras to reach at extreme end feeders for better calibration.
4. High resolution and high speed component camera system improves the overall speed of the machine.
Suggestions on production process
1. First component confirmation: confirm the component angle and polarity, component picking position and mounting position.
2. Start production after confirming solder paste printing and temperature setting.
3. After the production is finished, reset the origin and prepare to shut down.
4. Disconnect the electricity supply after the system being powered off.
5. Keep the machine clean, daily maintenance of the nozzles assures high utility.
Provide one-stop SMT assembly production line
FAQ
Q1: Can we customize the machine?
A: Of course.
All of our machines can be customized.
Q2: How about the warranty?
A: We support one year warranty.
We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
Q3: Which payment form you can accept?
A: T/T, Western Union, PayPal etc.
We accept any convenient and swift payment term.
