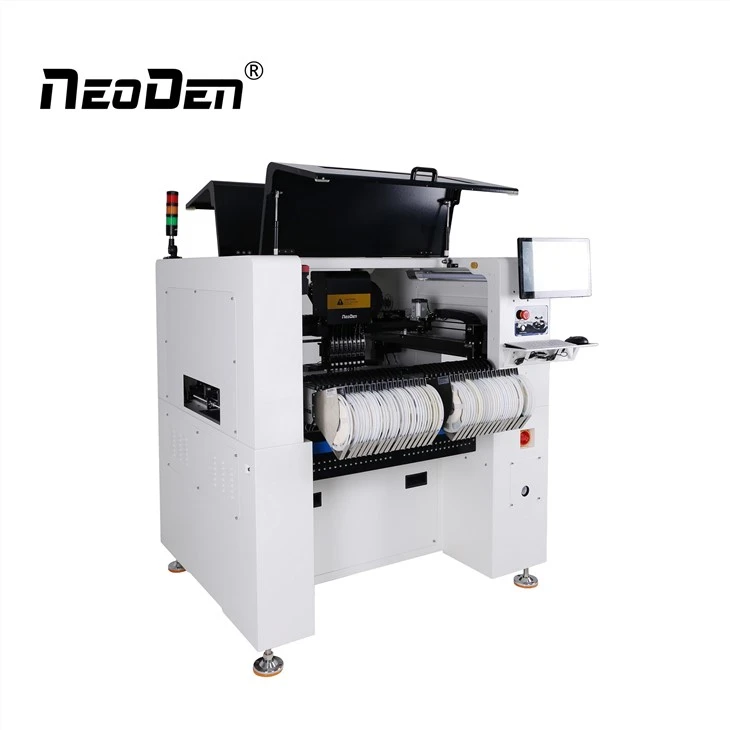

SMT Pick and Place Equipment
NeoDen K1830 SMT pick and place equipment video
Description
Detail
| Product name | NeoDen K1830 SMT pick and place equipment |
| Nozzle Q'ty | 8pcs |
Reel Tape Feeder Q’ty(Max | 66 (Electric / Pneumatic) |
Max PCB size | 540*300mm(In Single Step) |
| Placement accuracy | 0.01mm |
Max Placement Speed | 16,000CPH |
Voltage | 220V/50HZ & 110V/60HZ |
| PCB Transfer Direction | Left→Right |
Net Weight | 280Kgs |
| Gross Weight | 360Kgs |
First trial and test
1. Program first dry run
Usually we would suggest you to have a dry run (no components are loaded) before production test.
After it goes smoothly, you can start to produce few boards.
2. First production test
2.1 Make a programming file
2.2 Test the file to pick and place components.
3. Component Inspection
Inspection items
● Check if the specification, direction, polarity of components is aligned with what they should be.
● Whether the components are damaged or the pins are distorted.
● Whether the component is off beyond allowance.
The inspection methods vary from the equipment that you have.
Except visual inspection, all of amplifier, microscope, online or offline AOI equipment can be applied if the pitch of IC is quite small to check.
Related products
 |  |  |
| Stencil printer FP2636 | Automatic conveyor J12 | Reflow Oven IN6 |
FAQ
Q1. How can I buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping, payment method and other terms.
(3) Send you the perfroma invoice and confirm your order.
(4) Make the payment according to the method put on proforma nvoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
Q2. Do you provide software updates?
A: Customers who buy our machine, we can offer free upgrades software for you.
Q3. How about the warranty?
A: We support one year warranty.
We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
About Us
Zhejiang NeoDen Technology Co., LTD., founded in 2010, in this decade, we independently developed NeoDen4, NeoDen IN6, NeoDen K1830, NeoDen FP2636 and other SMT products, which sold well all over the world. So far, we have sold more than 10,000pcs machines and exported them to over 130 countries around the world, establishing a good reputation in the market. In our global Ecosystem, we collaborate with our best partner to deliver a more closing sales service, high professional and efficient technical support.
① Established in 2010, 200+ employees, 8000+ Sq.m. factory
② 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours
