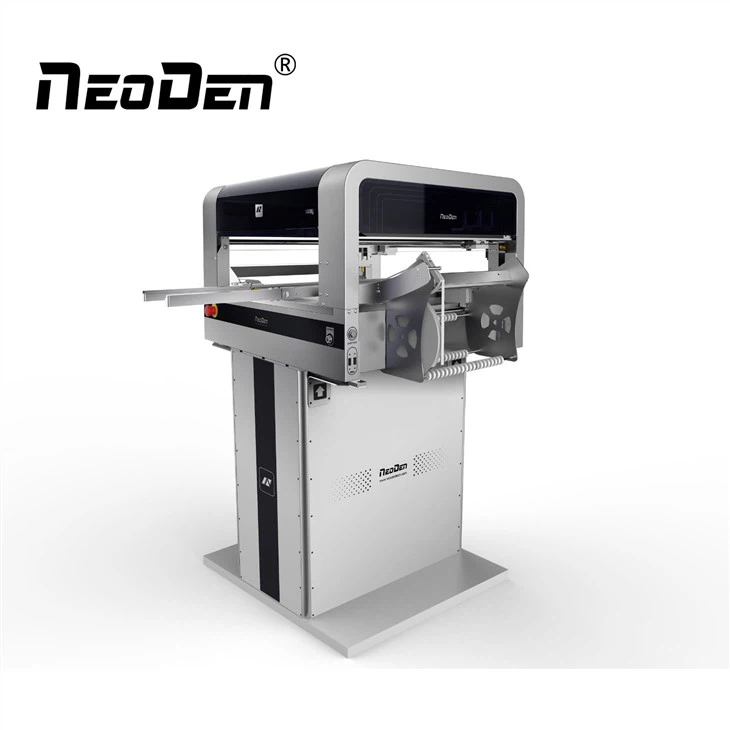

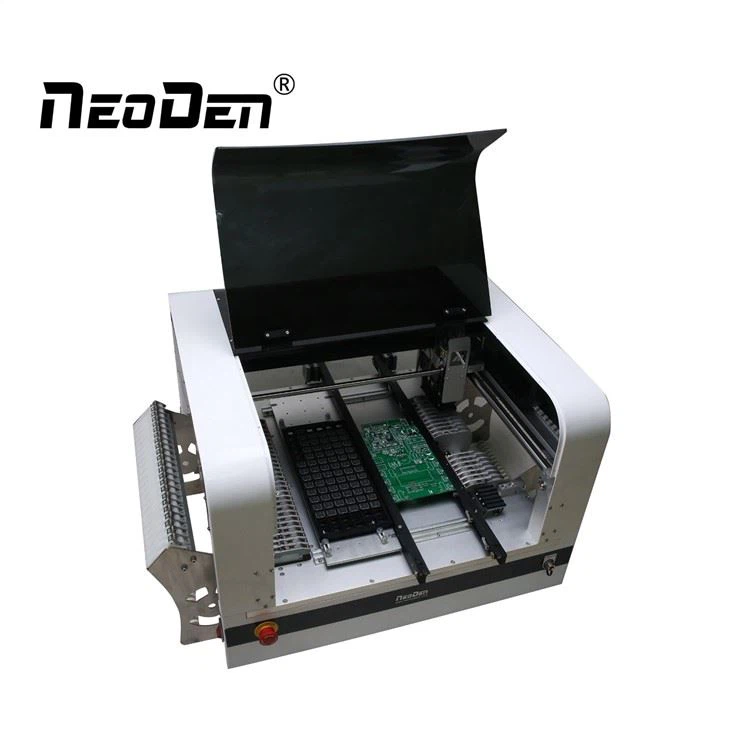

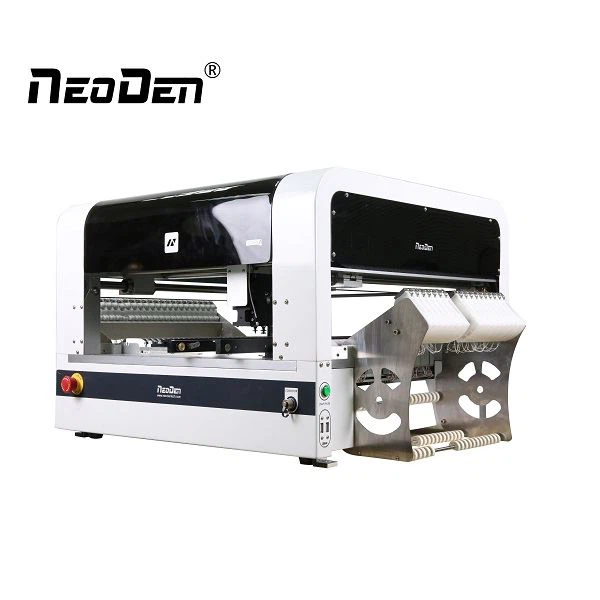

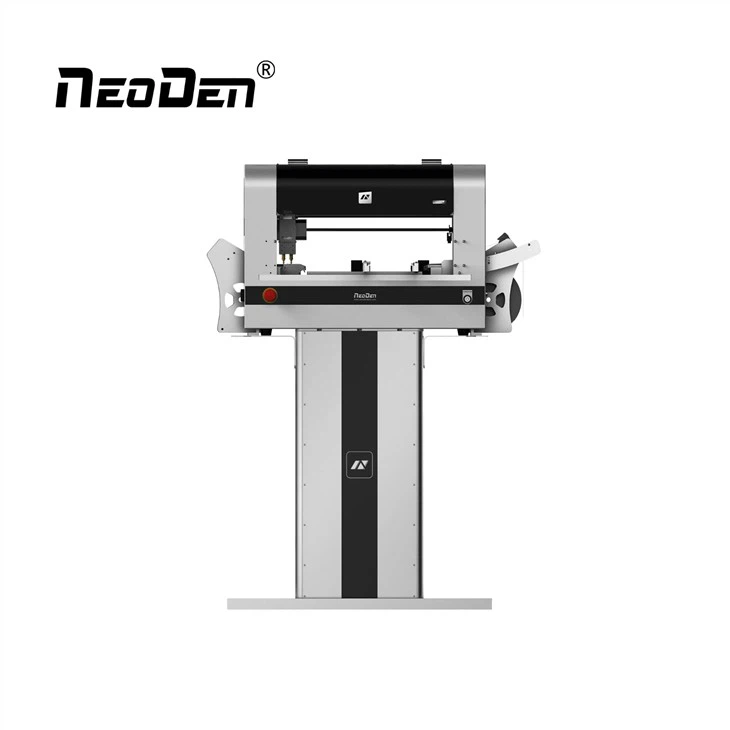

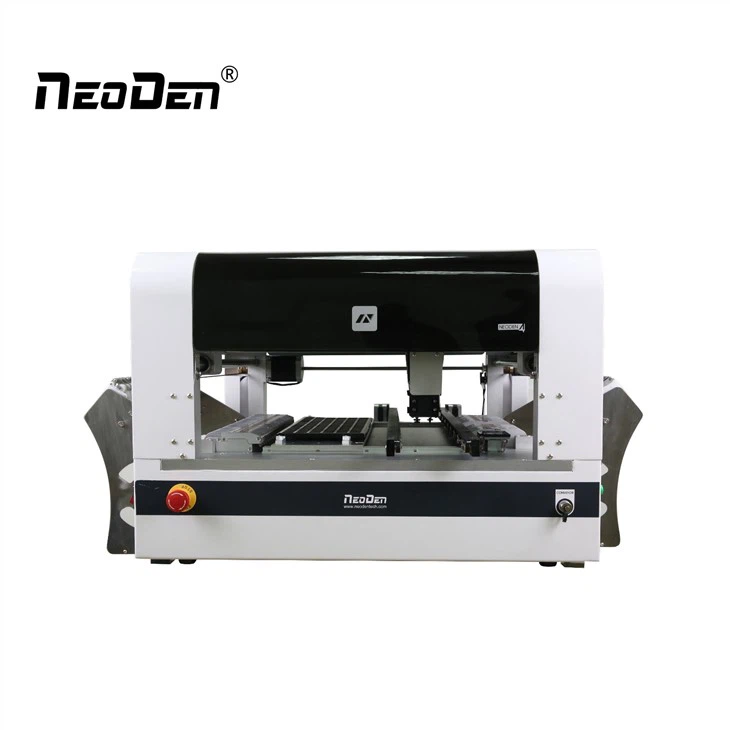

SMT Mounter Machine
■ Placement Rate up to 4,000CPH
■ Smallest size of 0201 to a largest size of TQFP240
■ Feeder Capacity of 48 pcs Feeders
The device has a lightweight body and occupies a small area. It features a user-friendly interface that does not require a professional SMT engineer, making it an entry-level device. This makes it especially suitable for laboratory research and development, samples, and prototyping.
Send Inquiry
Product Details ofSMT Mounter Machine
SMT mounter machine NeoDen4 Video
Description of NeoDen 4
| Product name | SMT mounter machine NeoDen 4 |
|
Machine Style |
Single Gantry with 4 Heads |
|
Placement Rate |
4000CPH |
|
External Dimension |
L 680*W 870*H 460mm |
|
Max applicable PCB |
290mm*1200mm |
|
Feeders |
48pcs |
|
Average working power |
220V/160W |
|
Component Range |
Smallest Size: 0201 |
|
Biggest Size: TQFP240 |
|
|
Max Height: 5mm |
Feature
Number of Feeders

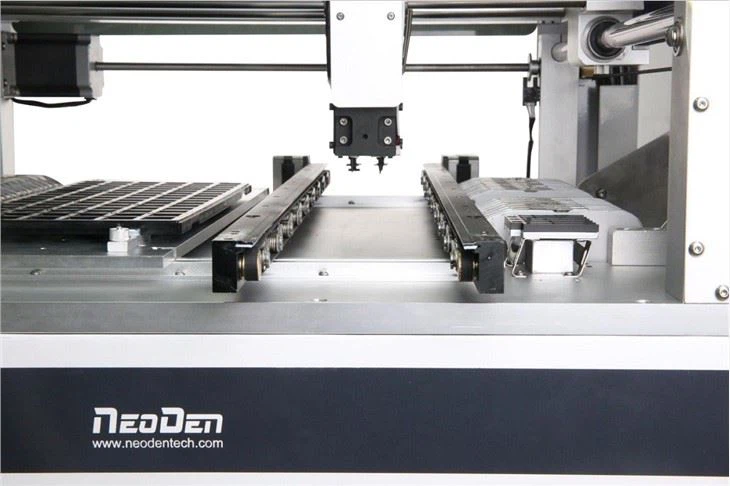

The SMT mounter machine NeoDen4 can accommodate up to 48 8mm tape-and-reel feeders on its left and right rails, and any size feeder (8, 12, 16 and 24mm) can be installed in any combination or order on the left and right sides of the machine.
The electric feeders are inexpensive but sophisticated microprocessorcontrolled units paired will tape peelers.
In addition, the vibration feeder (included) can handle up to 5 separate tubes.
The amount of space available for tray-fed components and short tapes depends on the available real estate on the table.
Any area of the table may be used for components awaiting placement, or for the board under manufacture.
Component Thickness Limitations
When using tray-fed and short-tape components, the maximum allowable component height is 5mm.
When using tape-and-reel components, we recommend a maximum thickness of 1.8mm for reliable operation.
Our Service
We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.
Well-trained engineers will offer you any technical support.
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours.
Professional solutions can be offered within 24 hours both workday and holidays.

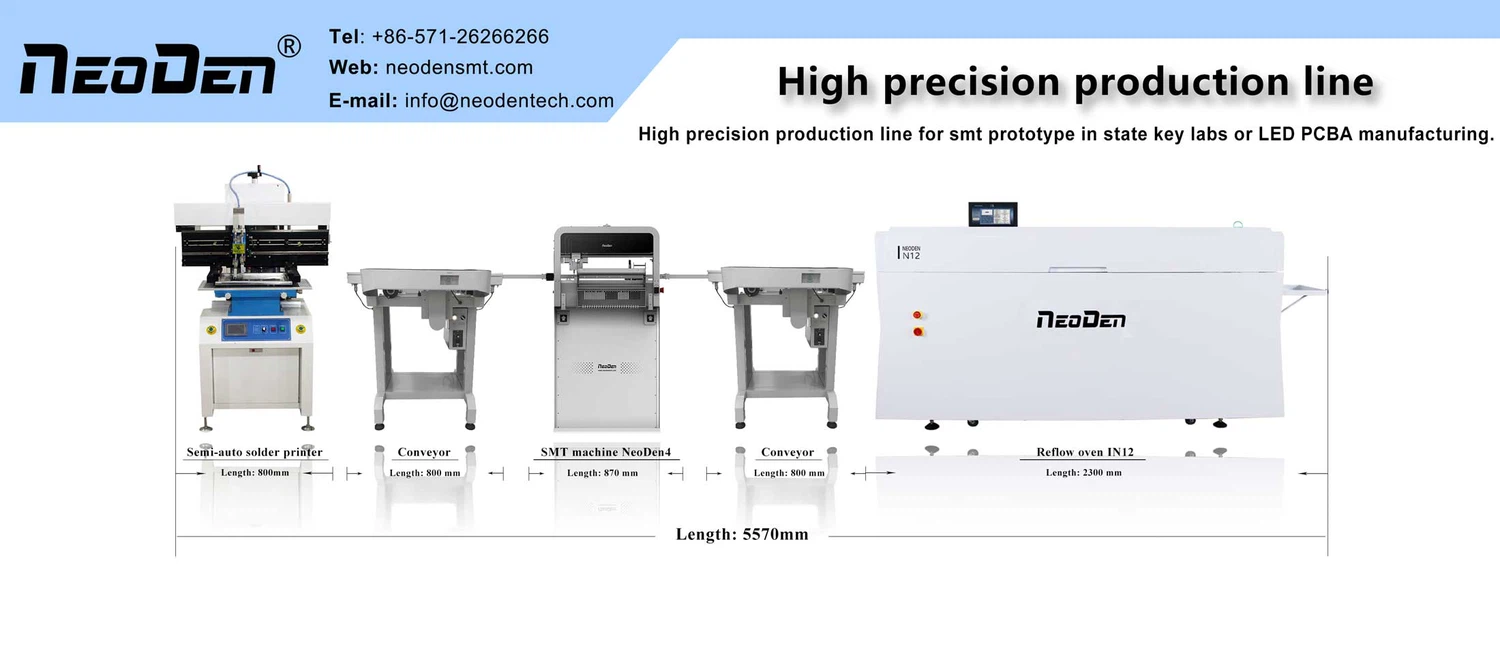

Provide one-stop SMT assembly production line
FAQ
Q1: Do you provide software updates?
A: Customers who buy our machine, we can offer free upgrades software for you.
Q2:This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
Q3: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products.
About us
factory
Quick Facts about NeoDen
① Established in 2010, 200+ employees, 8000+ Sq.m. factory.
② NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040.
③ Successful 10000+ customers across the globe.
④ 30+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
⑤ R&D Center: 3 R&D departments with 25+ professional R&D engineers.
⑥ Listed with CE and got 50+ patents.
30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours..
