SMT Machinery
neoDen k1830 sMT Machinery video

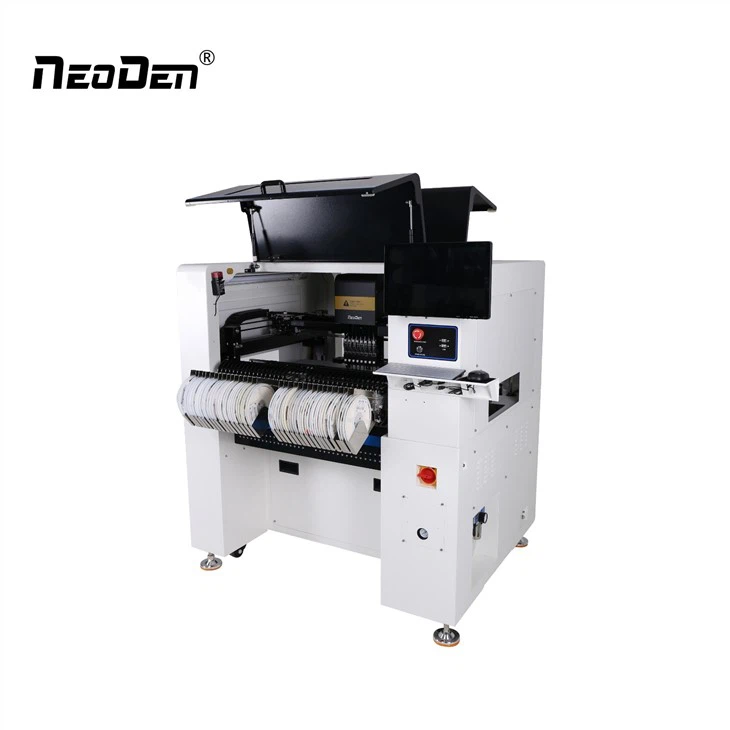

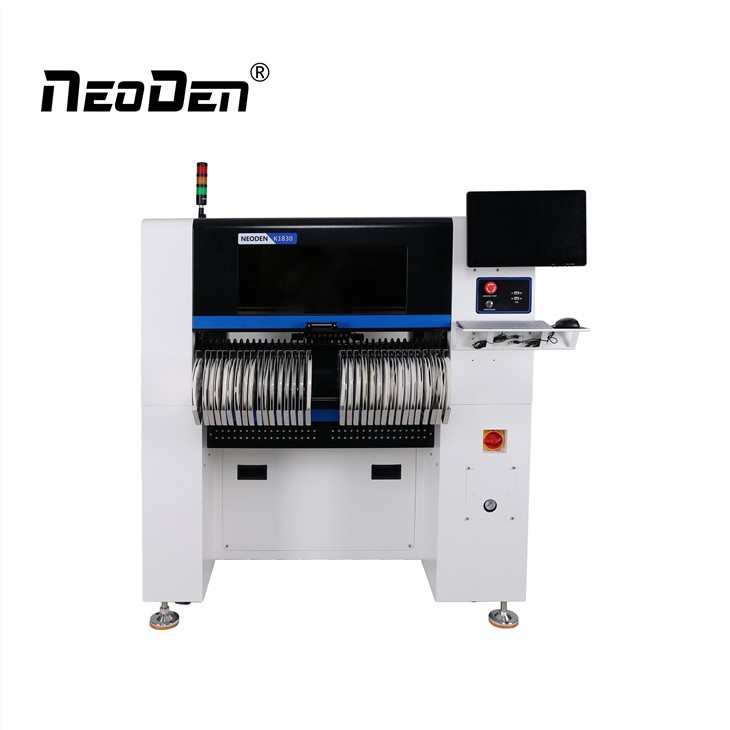

neoDen k1830 sMT Machinery
Specification
| Product name | NeoDen K1830 SMT machinery | Max PCB size | 540*300mm(In Single Step) |
| Nozzle Q'ty | 8pcs | Placement accuracy | 0.01mm |
| Reel Tape Feeder Q'ty(Max | 66 (Electric / Pneumatic) | Max Placement Speed | 16,000CPH |
| Voltage | 220V/50HZ & 110V/60HZ | PCB Transfer Direction | Left→Right |
| Net Weight | 280Kgs | Gross Weight | 360Kgs |
Detail
8 high speed nozzles
1- 8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
2- Machine runs on highly stable and secure Linux operating system.
Vision system
1- Double mark cameras to reach at extreme end feeders for better calibration.
2- High resolution and high speed component camera system improves the overall speed of the machine.
Feeders
1- Closed loop Servo control system with feedback makes the machine to function more accurate.
2- Picking location of pneumatic feeder can be calibrated automatically and promptly, to ensure easy operation and high efficiency.
Frequently throwing components.
Some suggestions are listed below
(1) Up-looking camera can't take a clear picture of component due to brightness issue for example.
(2) The pins are distorted
(3) The size or shape isn't aligned with that in "Footprint library''.
(4) The size of nozzle is inappropriate or insufficient suction.
(5) The nozzle has solder paste or rubbish cause air leakage.
(6) The nozzle is damaged or cracked cause air leakage.
If you need, please feel free to contact us.
provide one-stop sMT Assembly production line
FAQ
Q1:Is it hard to use these machines?
A: No, not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
Q2: Can we customize the machine?
A: Of course.
All of our machines can be customized.
Q3: How about the warranty?
A: We support one year warranty.
We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
About us
exhibition
certification
factory
If you need, please don't be hesitate to send your inquiry.
