SMT Head Pick and Place

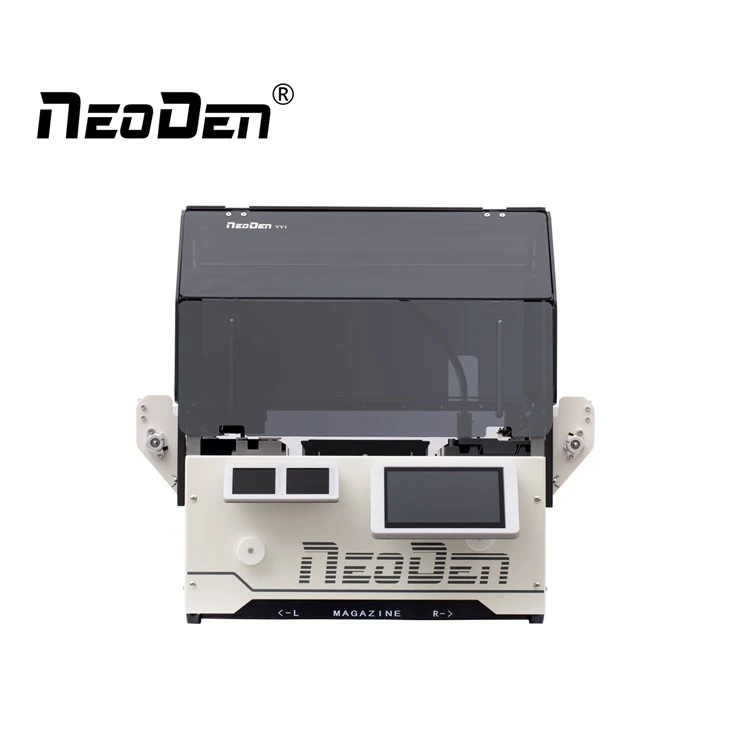

NeoDen YY1 SMT head pick and place machine
Specification
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
|
Bulk Feeder: 19 |
Details
Brief Introduction
1. Automatic nozzle changer help realizing nozzles changed flexibly.
2. Independent high-definition & high-speed dual vision recognition systems, as well as dual cameras for real-time display the working status.
3. Linear rail design for X, Y axis to ensure accuracy and stability, and reduce noise at the same time.
4. Small size with powerful magazines and newly designed tape feeders to support large tape reels configuration flexibly, easy to install and replace tape reels conveniently, to ensure the most excellence solution among all of the entry level machines with lower budget but higher stability.
Provide one-stop SMT assembly production line
Product introduction
Stencil printer FP2636
1. Adjustable rubber footing, ensure the flatness while operating.
2. Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.
Reflow oven NeoDen IN6
The new model has bypassed the need for a tubular heater, which provides even temperature distribution throughout the reflow oven.
By soldering PCBs in even convection, all components are heated at the same rate.
Working files are storable within the oven, and both Celsius and Fahrenheit formats are available to users.
The oven uses a 110/220V AC power source and has a gross weight (G1) of 57kg.
The NeoDen IN6 is built with an aluminum alloy heating chamber.
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
FAQ
Q1: Is it hard to use these machines?
A: No,not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
Q2: Can we customize the machine?
A: Of course. All of our machines can be customized.
Q3: How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
About us
exhibition
certification
factory
If you need, please feel free to contact us!
