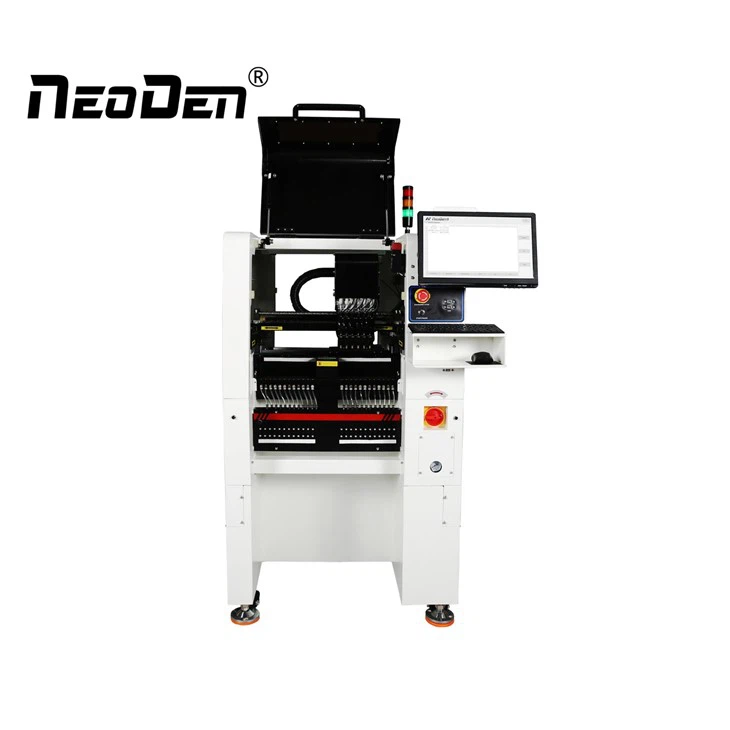

SMD Assembly Device
SMD Assembly Device
Products Description
1. The average mounting speed can be reached at 9000CPH.
2. The max mounting speed can be reached at 14000CPH.
3. Equips Panosonic 400W servo motor, to ensure better torque and acceleration for achiving stable and durable placement.
4. The self-developed flying camera recognition system uses imported CMOS sensor, 5 million-level industrial high-definition lens and 289 LEDs ring shadowless light sources, to ensure the stable and durable effects.
5. Equips with the magnetic scale technology what used commonly in the well-known brands, realizing true closed-loop control, long-term assurance of stable placement accuracy as initial & new conditions, easy to calibrate accuracy without suppliers' engineers.
Specification
| Product Name | NeoDen9 SMD Assembly Device | Repeat Position Accuracy | ±0.01mm |
| Number of Heads | 6 | Maximum Mounting Speed | 14,000CPH |
| Number of Tape reel Feeders | 53 (Yamaha Electric/Pneumatic) | Average Mounting Speed | 9,000CPH |
| Number of IC Tray | 20 | X-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| Placement Area | 460mm*300mm | Y-axis-Drive Type | WON Linear Guide / TBI Grinding screw C5 - 1632 |
| MAX Mounting Height | 16mm | Compressed Air | ＞0.6Mpa |
| PCB Fiducial Recognition | High Precision Mark Camera | Input Power | 220V/50HZ (110V/60HZ Alternative) |
| Component Recognition | High Resolution Flying Vision Camera System | Machine Weight | 500KG |
| XY Motion feedback control | Closed loop control system | Machine Dimension | L1220mm*W800mm*H1350mm |
| XY Drive motor | Panasonic A6 400W |
Detail
6 Placement Heads
Tape Reel Feeders
Self-developed Flying Camera
C5 precision ground screw
Servo Motor
Patent Sensors
If you need, please feel free to contact us for more information.
FAQ
Q1. Do you provide software updates?
A: Customers who buy our machine, we can offer free upgrades software for you.
Q2. Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products.
Q3. This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
