Small SMD Pick N Place Machine PCB Assembly
Description

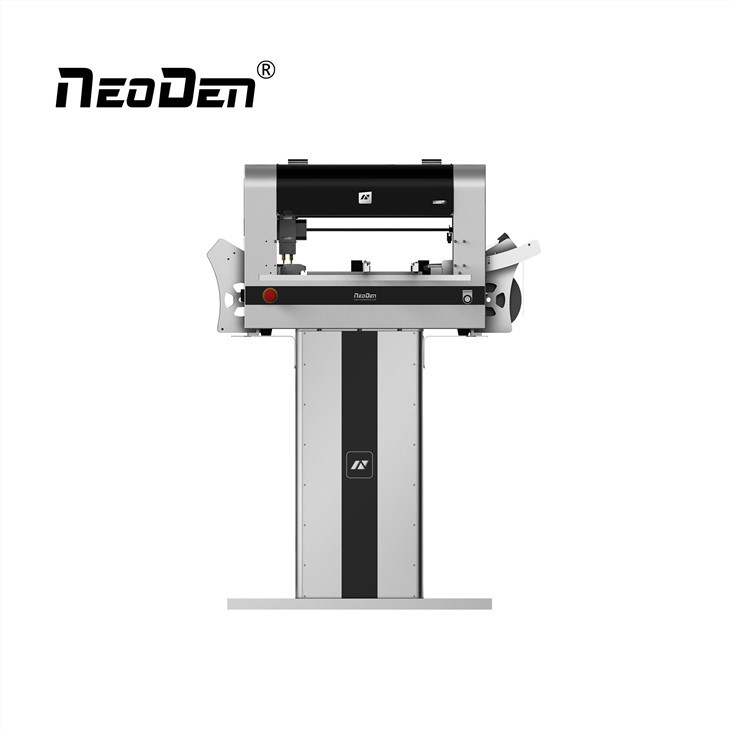

NeoDen4 is a flexible pick and place machine for all types of production.
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails, and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
Specification
| Product name | NeoDen4 small SMD pick n place machine PCB assembly | Feeders | 48pcs |
Machine Style | Single Gantry with 4 Heads | Average working power | 220V/160W |
Placement Rate | 4000CPH | Component Range | Smallest Size: 0201 |
External Dimension | L 680*W 870*H 460mm | Biggest Size: TQFP240 | |
Max applicable PCB | 290mm*1200mm | Max Height: 5mm |
Placement video

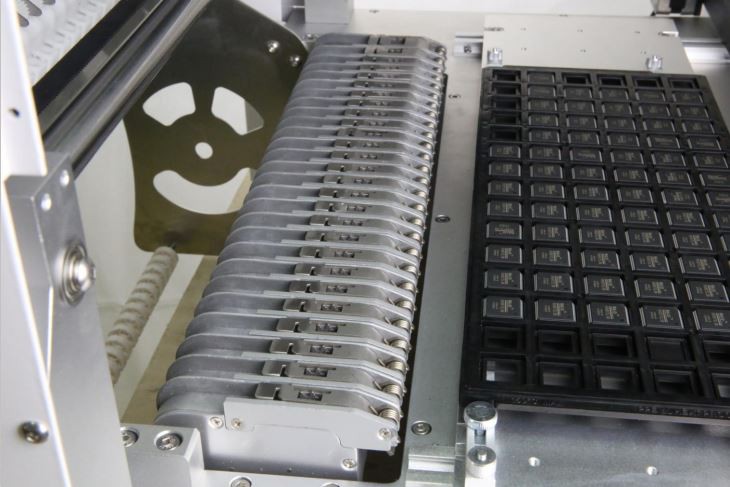

Placement Effect
Warranty
The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply.
NeoDen will provide an online Q/A and troubleshooting support and technical advice service.
Our Service
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
About Us
Zhejiang Neoden Technology is a professional supplier with 10 years experience and provides one-stop SMT solutions for customers, key products are pick&place machine, reflow oven and solder printer. Currently, we have sold 10000+ sets of machines and exported to 130+ countries in the world, and have built good reputation in the market.
If you need, please feel free to contact Us~
