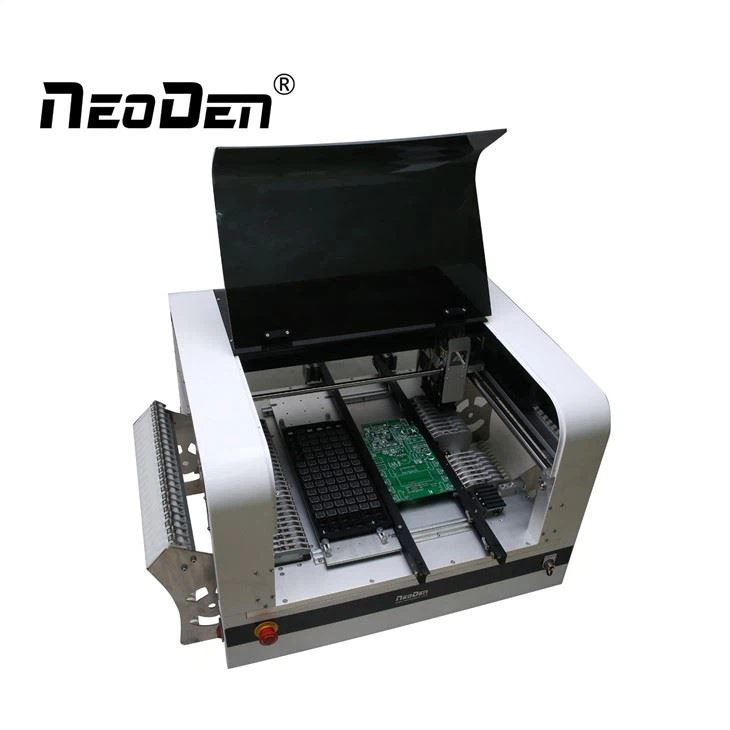

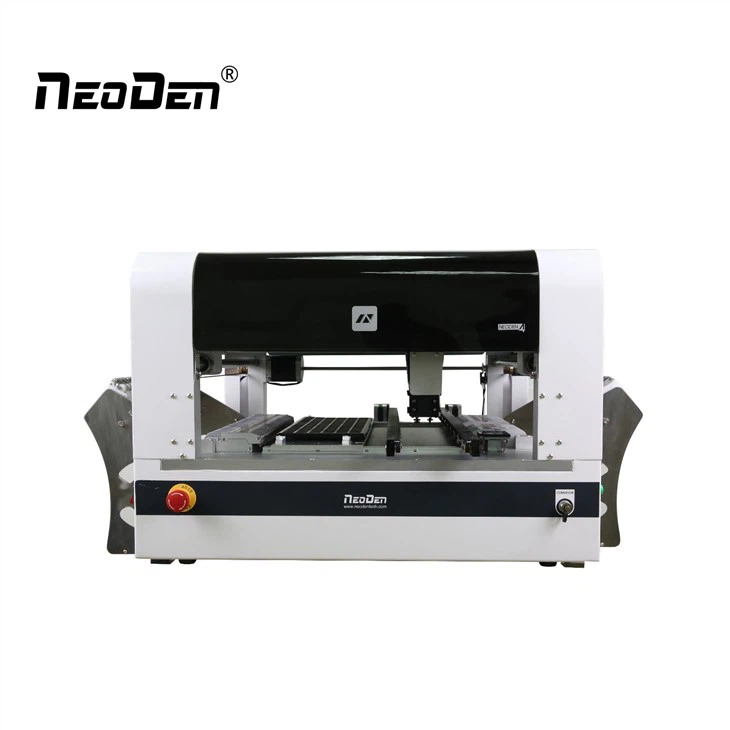

Small SMD Pick and Place Machine
NeoDen4 Small SMD pick and place machine Video
Feature
1. Light weight body, occupy small area.
2. User friendly interface, no need professional SMT engineer, entry-level device.
3. High integrated, no need extra pump or any supporting facility.
4. High accuracy and reliability, make up the defection of manual work.
5. Low cost, reduce expense to own a professional automatic SMT production line.
6. International express with door to door service, 3-5 working days delivery.
7. Especial for laboratory research and development, samples, to avoid any patents and designs revealment.
Specification
| Product name | NeoDen4 Small SMD pick and place machine |
Machine Style | Single Gantry with 4 Heads |
Placement Rate | 4000CPH |
External Dimension | L 680*W 870*H 460mm |
Max applicable PCB | 290mm*1200mm |
Feeders | 48pcs |
Average working power | 220V/160W |
Component Range | Smallest Size: 0201 |
Biggest Size: TQFP240 | |
Max Height: 5mm |
Details
On-line Dual Rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.
Four high precision Nozzles
Any size nozzle can be installed.
Designed in a suspended, fully symmetric and high degree of coupling way.
Electronic Feeders
Adopts feeding error corrections technique.
Designed in a suspended, fully symmetric and high degree of coupling way.
Vision system
(up-looking and down-looking cameras)
Equip with high speed industry CCD cameras.
Highly improved accuracy of placement from 0201 to BGA.
Our Service
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
Q1: What about the lead time for mass production?
A: 15-30 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.
Q2: What is your terms of delivery?
A: EXW, FOB, CIF, etc.
Q3: How can I place an order?
A: You can contact any of our sales person for an order. Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
For designing or further discussion, it is better to contact us with Skype, TradeManger or QQ or WhatsApp or other instant ways, in case of any delays.
