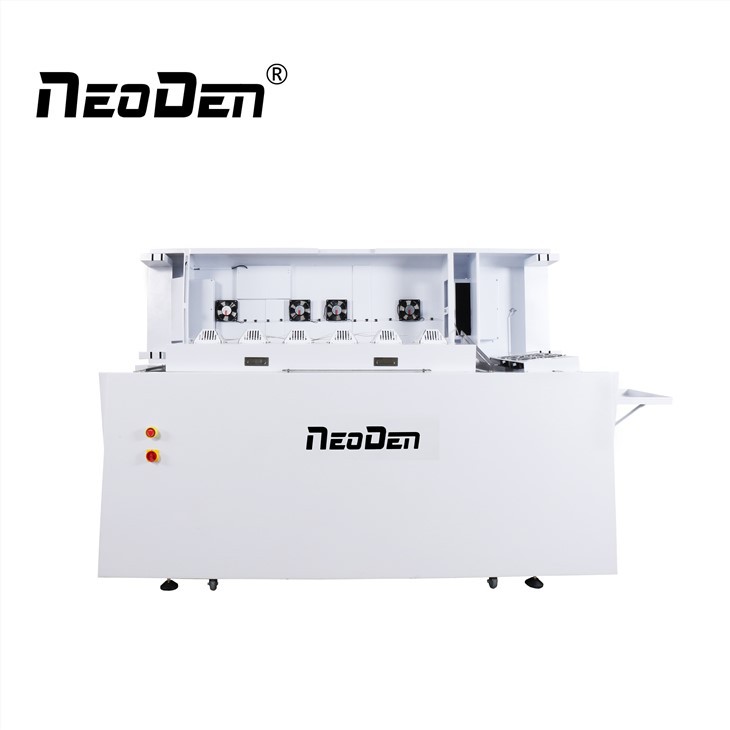

Reflow Oven Heater
Description
1. Heat insulation protection design, the casing temperature can be effectively controlled.
2. Intelligent, the custom developed intelligent control system, easy to use and powerful.
3. 40 working files can be stored for an easy loading during the working process.
Specification
| Product name | NeoDen IN12 reflow oven heater |
| Model | NeoDen IN12 |
| Heating Zone Quantity | Upper6 / Down6 |
| Cooling Fan | Upper4 |
| Conveyor Speed | 50～600 mm/min |
| Temperature Range | Room temperature～300℃ |
| Temperature Accuracy | 1℃ |
| PCB Temperature Deviation | ±2℃ |
| Max soldering height(mm) | 35mm(includes PCB thickness) |
| Max Soldering Width (PCB Width) | 350mm |
| Length Process Chamber | 1354mm |
| Electricity Supply | AC 220v/single phase |
| Machine Size | L2300mm×W650mm×H1280mm |
| Heat-up Time | 30 min |
| Net Weight | 300Kgs |
Features
12 Heating Zones
Uniform temperature
High temperature control accuracy
Cooling zone
Independent circulating air design
Isolates the influence of the external environment
Energy saving & Eco-friendly
Welding smoke filtering system
low power and supply requirements
Operation panel
Hidden screen design
Convenient for transportation
Intelligent control system
Custom developed intelligent control system
Temperature curve can be displayed
Elegant appearance
In line with high-end use environment
Lightweight, miniaturization, professional
Power Supply
Connection IN12 power connection is single phase 220V, please connect it against local users actual situation.
Connection as below picture: Open the coveron bottom right corner, L stands for the live wire, Nstands for the zero wire, and Estands for the groundwire, connect to the 220V power supply.
According to the wiring requirements, the L should be connected to one live wire, and the N should be connected to one zero wire; the E should be connected to one ground wire properly.
If you need, please feel free to contact us for more information.
