Pick And Place Robot With 6 pick up heads
NeoDen7 has been discontinued. Looking for an upgrade?
Discover the NeoDen9 - a more powerful and superior alternative that's the ideal choice for your needs.
Pick and place robot with 6 working heads Neoden7
Application industry
Household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and military industry, etc..
Compatible software
Altium designer,Protell99SE,PADS,Kicad,Eagle,Cadint,Cadence Orcad,Cadence Allegro,PROTEUS..etc
1. Integrated flying vision system
2. Panasonic Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
3. 6 Simultaneous pick-up head
4. Placement rates up to 14,000 cph
5. The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
6. Accurately place, manager, and track components with Smart Feeders
7. Up to 64 (all in 8mm)tape feeders
8. Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others
9. Support cut tape, loose, tube, or tray feeders

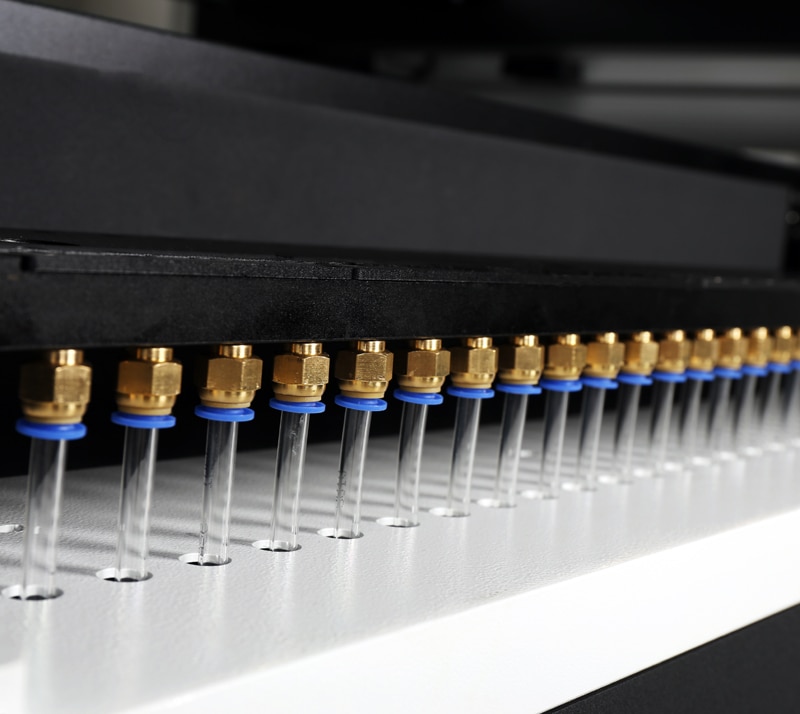

Machine details
NeoDen provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information:
Hangzhou NeoDen Technology Co.,Ltd
Web: www.neodentech.com
Email: info@neodentech.com
Thank you very much for your support on Neoden Tech's machines.
What is SMT production line?
Also Called smt assembly line
SMT is the new technology to produce the circuit. Many years ago, People produce circuit use wires, so electronic product is big and hard to use and take with. So the circuit develop direction is become smaller, then People inveted the PCB, it can put the circuit on a small PCB, and then the components invented to out the resistors, capacitors on the PCB. All technology rated in this process is SMT.
Traditional electronic components compressed into a volume of only a few tenths of the device directly to the surface assembly components paste, printed on the printed circuit board surface location of the assembly technology.
Compared with the traditional process, SMT has high density, high reliability, low cost, miniaturization, sound field automation and other five characteristics.
Parameters:
| Number of Heads with Vision enabled | 6 |
| Placement Rate | 14000CPH(max. speed) |
| Feeder Capacity | 64 |
| Drive Motor | Panasonic Servo Motor A6 |
| Tape width | 8mm,12mm,16mm,24mm,32mm,44mm |
| Vibration Feeders | selectable |
| IC Tray Capacity | 10 |
| Component sizes with vision | Smallest Component size:0402 Largest Component size:40*40mm |
| Applicable Components | 0402, Fine-pitch IC, Led Component,Diode,Triode,Tack Switch |
| Component Height Maximum | 10mm |
| Rotation | +/-180(360) |
| Resolution X/Y Axis | +/-0.01mm |
| Applicable PCB size | 630mm*300mm(1200 optional) |
| Main Control | GUI |
| Power Supply | 220V, 50Hz (convertible to 110V) |
| Air source | 0.6MPa |
| Power | 500W |
| Packing size | 142*122*166.5CM |
| Net Weight | 280KGS |
| Gross weight | 360KGS |
