High Speed SMD Pick and Place Machinefor PCB Assembly
Number of Tape reel Feeders: 80 (Yamaha Electric/Pneumatic)
Placement Area: 1500mm*450mm
Warranty: 2 Years
Send Inquiry
Product Details ofHigh Speed SMD Pick and Place Machinefor PCB Assembly

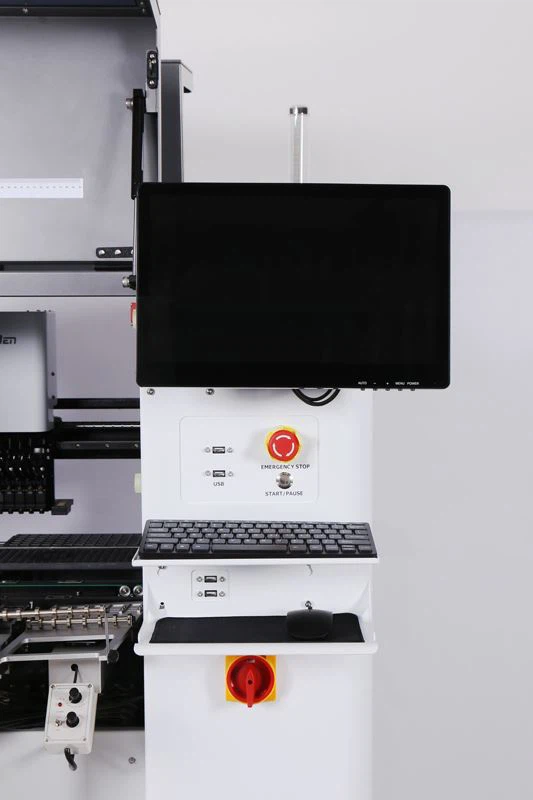

SMD SMT Pick And Place Machine For PCB Assembly Line
Description
NeoDen N10P is a high-performance, easy-to-use and stable pick and place machine based on the original NeoDen10.
The placement head is equipped with 8 independent nozzles, which can achieve high-speed placement with simultaneous pick up, as well as the maximum placement speed can reach 20,000CPH.
It is equipped with a 39-hole fully automatic nozzle replacement device. Meanwhile, it can install a large feeder capacity of up to 80 tape feeders.
It adopts imported servo drive with grinding screw configuration to greatly ensure the placement stability and repeated placement accuracy.
It is a cost-effective placement machine that you can rely on.
Features

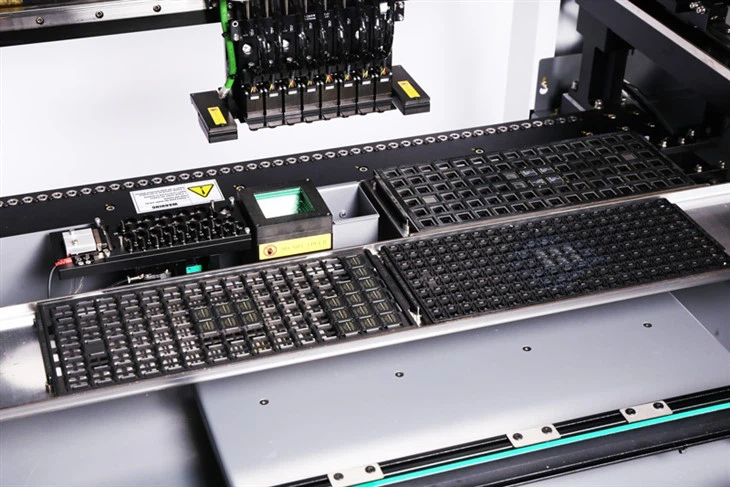

1. Front and rear with 2 fourth generation high speed flying camera recognition systems, US ON sensors, 28mm industrial lens, for flying shots and high accuracy recognition.
2. Automatic nozzle change function with 39 nozzle slots tremendously increase placement speed and flexibility, reduce labor work.
3. Applicable to 1,500mm long board using an extension conveyor (optional).
4. Support 80 tape feeders, 20 stick feeders and 60 tray feeders, which achieve. Allows mixed use of electric and pneumatic feeders in the same feeder base.
Technical Parameters
| Number of Head | 8 | Speed | 20,000CPH (Max) |
| Position Accuracy | ±0.01mm | PCB Size | Min. 50mmx50mm |
| Component Range | Flying Camera: 0201-22mmx22mm | 395mm*1500mm (with IC tray) | |
| IC Camera: 0201-40mmx40mm | Max.: 450mm*1500mm (without IC tray) | ||
| Max Height: 16mm | Power | 600W, Single phase, 220V/110V, 50Hz/60Hz | |
| PCB Thickness | 0.2mm-3.5mm | Feeder Capacity | Tape&Reel: 80pcs (33 front+47 rear) |
| Air Source | 0.6Mpa-0.8Mpa | IC Tray: 1 | |
| Flow rate | 37L/min | Weight | 1,000kgs |
| Dimension | 1289mmx1254mmx1386mm | Packing Size | 1320mmx1290mmx1456mm |
Quality Control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
