PCB Soldering Reflow Oven
NeoDen IN12 Reflow oven machine
Feature
IN12 is a newly designed and manufactured reflow oven by NeoDen Tech.

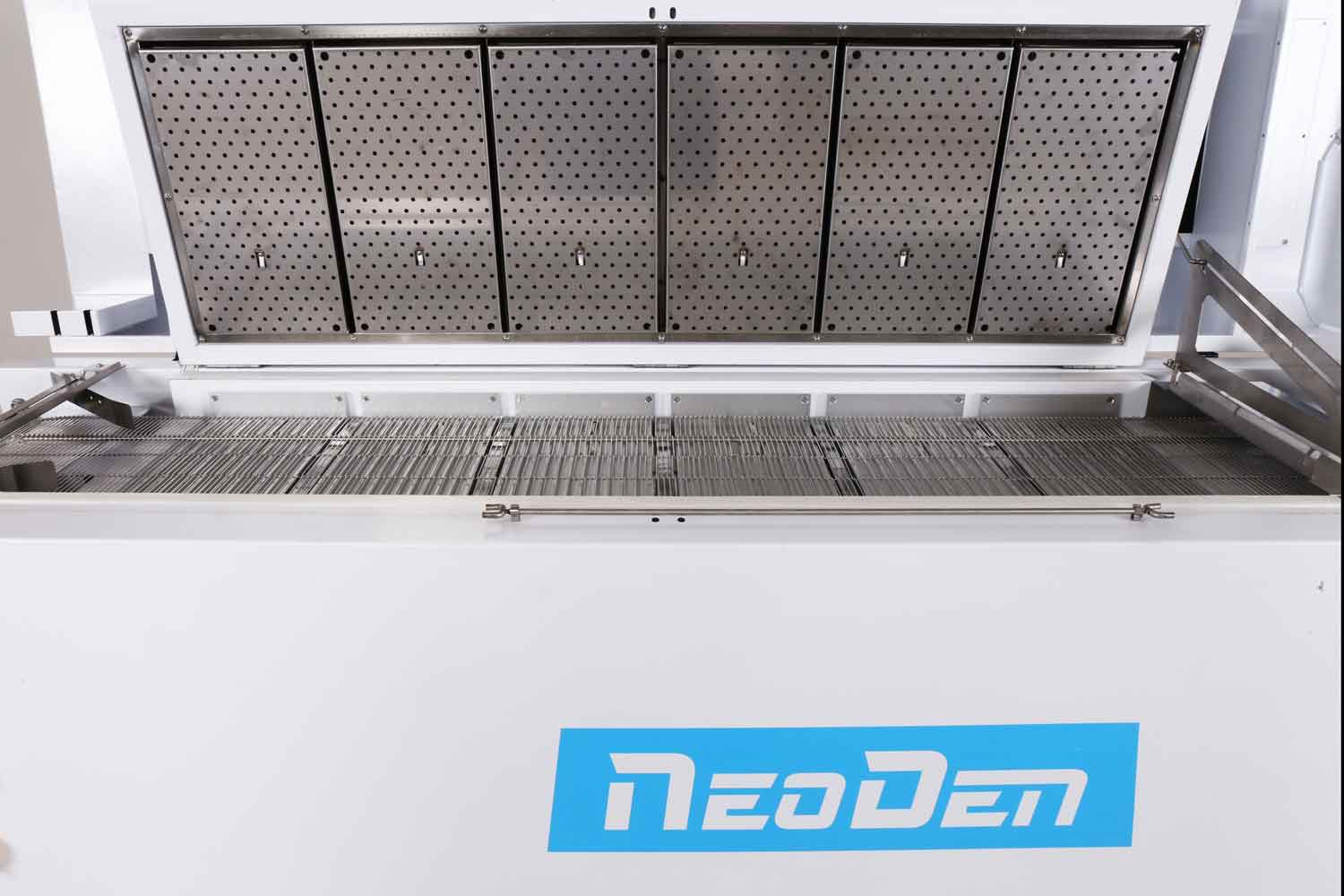

It has 12 temperature zones, unique heating module design, intelligent control system,
built-in welding smoke filtering system, which makes it intelligent, innovative, compact and high-performance.
Specification
| Product name | NeoDen IN12 Reflow oven machine | Temperature Range | Room temperature～300℃ |
| Model | NeoDen IN12 | Temperature Accuracy | 1℃ |
| Heating Zone Quantity | Upper6 / Down6 | PCB Temperature Deviation | ±2℃ |
| Cooling Fan | Upper4 | Max soldering height | 35mm (includes PCB thickness) |
| Conveyor Speed | 50～600 mm/min | Max Soldering Width (PCB Width) | 350mm |
| Length Process Chamber | 1354mm | Heat-up Time | 30 min |
| Electricity Supply | AC 220v/single phase | Net Weight | 300Kgs |
| Machine Size | L2300mm×W650mm×H1280mm |
Features
Energy conservation and environment protection

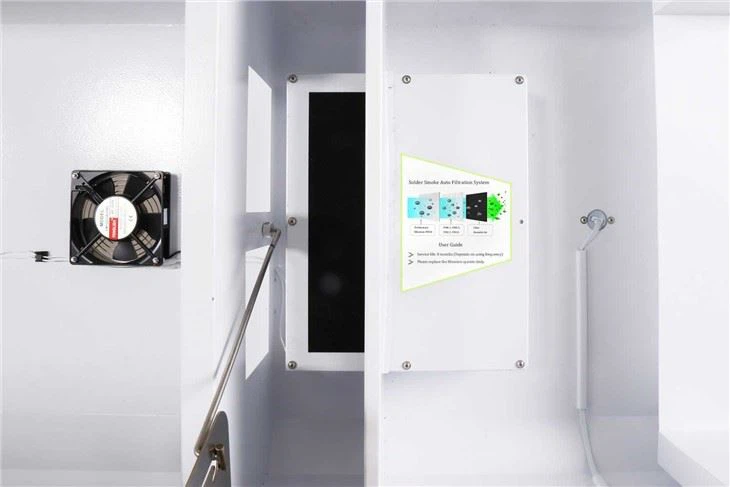

Built-in welding smoke filtering system
effective filtration of harmful gases
low power consumption, low power supply requirements
The internal thermostat is made of stainless steel
Intelligent control system
The custom developed intelligent control system
Professional and unique 4-way board surface temperature monitoring system.
PCB soldering temperature curve can be displayed based on real-time measurement.
Elegant appearance
More in line with the high-end use environment.
Lightweight, miniaturization, professional industrial design, flexible application site, more user-friendly.
Beautiful and elegant indicator design with red, yellow and green alarm function.
Safer to use
The upper temperature cover is automatically limited once opened,
effectively ensuring the personal safety for the operators.
Precautions
*The power board and control board should not be touched when the power is on.
Installation Attentions
If you need, please feel free to contact us for more information.
Provide one-stop SMT assembly production line
FAQ
Q1: MOQ?
A: 1 set machine, mixed order is also welcomed.
Q2: How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
Q3: How about the warranty?
A: We support one year warranty. We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
