Manual SMT Pick and Place Machine
NeoDen4 Introduction
NeoDen4 is a pick and place machine of components flexibility, PCB flexibility and production flexibility.
It is equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN.
Especially, with its internal rails, it is applicable for 0.8m/1.2m/1.5m LED strip.
Specifications
| Number of Heads with Vision enabled | 4 | Component sizes with vision | Smallest Component size: 0201 |
Placement Rate ( under factory test condition) | with vision: 5000cph | Largest Component size: TQFP240 | |
| Feeder capacity | TAPE REEL FEEDERS: 48 | Component Height | 5mm |
| VIBRATING FEEDERS: 5 | Resolution | X/Y axis: 0.01mm; Z axis: 0.1mm | |
| IC tray capacity/IC | 5 | Rotation | 360 degree |
| Positioning Accuracy | +/-0.02MM | Power supply | 110v/220v |
| X-Y repeatability | +/-0.02MM | Power | 180w |
| Applicable PCB area | With Internal rails: 310x1500mm | External Dimensions | Machine: 87*68*48CM, Packing size: 94*74*60CM |
| Placement Area | Without waffle Tray: 310x1500mm | Weight | Net Weight: 60KGS, Gross weight: 80KGS |
| With 1 waffle Tray: 140x1500mm |

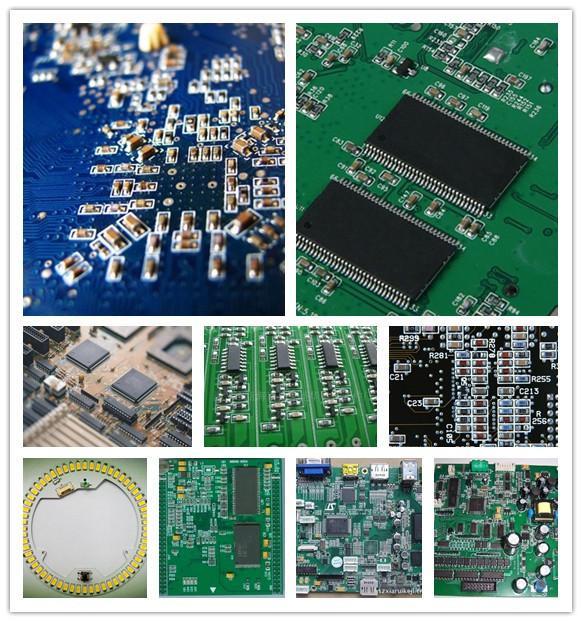

Sample Boards from Few Customers
Placement Video
How to assembly your PCB in house?
Step 1. Stenciling (Solder Printer)
Covering the footprints with a metered amount of solder pastes by using solder printer.
Step 2. Pick and Place (Pick and Place Machine)
Automatically put components on the PCB by using pick and place machine.
Step 3. Soldering (Reflow Oven)
Put circuit boards into the reflow soldering to finish the placement.
