Low Cost Pick and Place Machine
NeoDen 3V has been discontinued. Looking for an upgrade?
Discover the NeoDen YY1, a more powerful and cost-effective alternative built to exceed your needs.
NeoDen 3V Low Cost Pick and Place Machine video

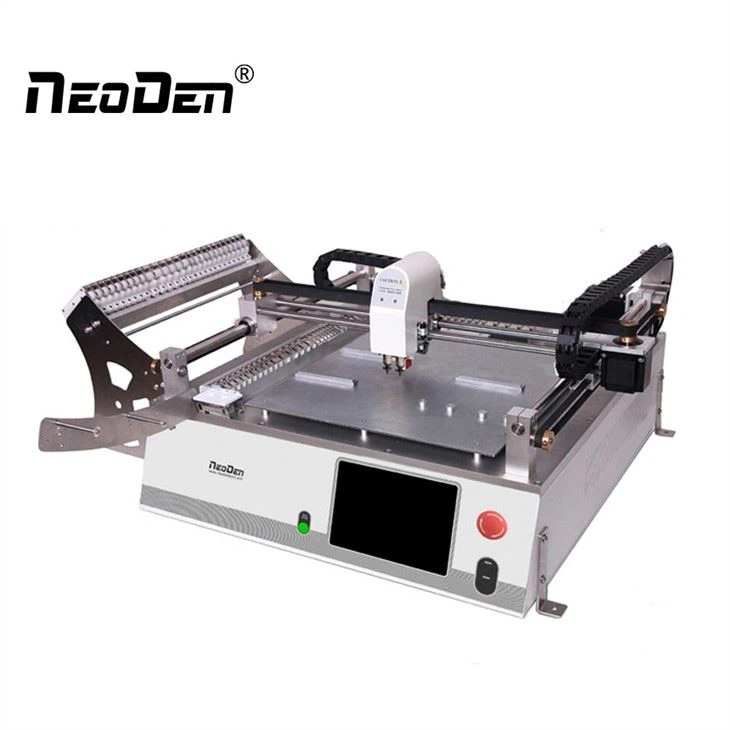

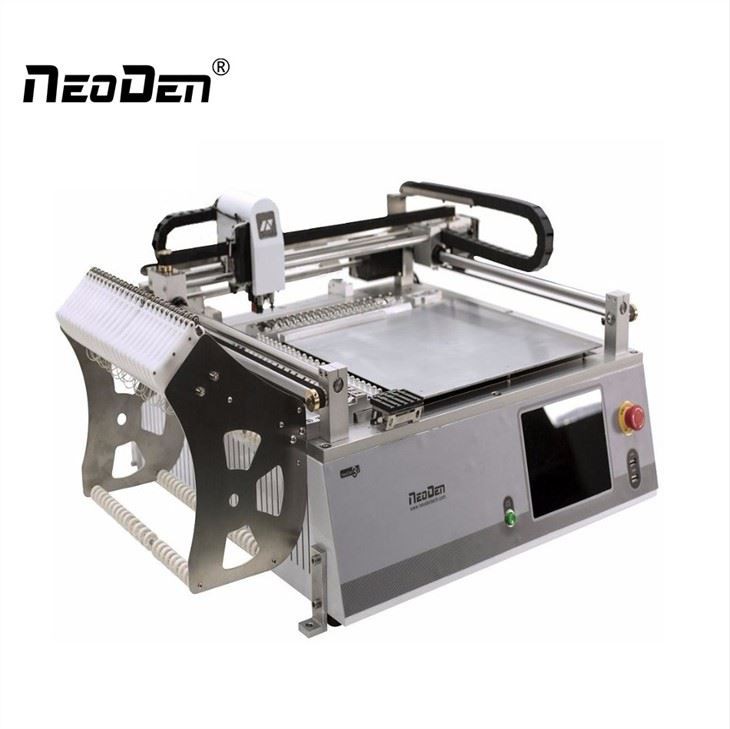

NeoDen 3V Low Cost Pick and Place Machine
Feature

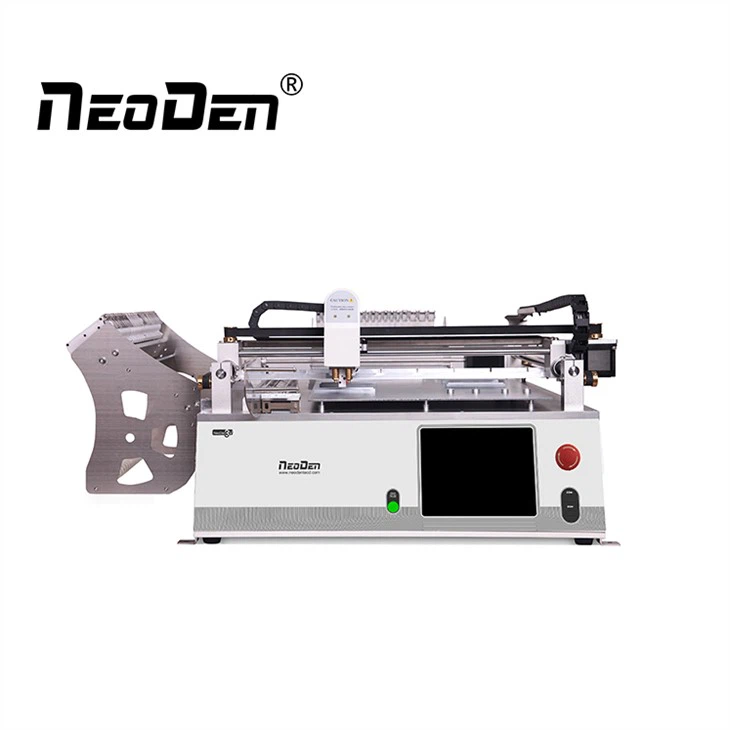

NeoDen3V chip mounter is an upgraded version of TM245P series.
It features dual head, 44 feeder slots, vision system and flexible positioning system, which is suitable for prototyping, small-medium batch production with stable performance and affordable price.
Specification
|
Produt name |
NeoDen 3V low cost pick and place machine (Standard) |
|
Number of heads |
2 |
|
Alignment |
Vision |
|
Rotation |
±180° |
|
Placement Rate |
5000CPH (without vision); 3500CPH (with vision) |
|
Feeder Capacity |
Tape feeder: 24 (all 8mm) |
|
Vibration feeder: 0~5 |
|
|
Tray feeder: 5~10 (Customization supported) |
|
|
Board Dimension |
Maximum: 320*420mm |
|
Component Range |
Smallest components: 0402 |
|
Largest components: TQFP144 |
|
|
Max height: 5mm |
|
|
Numbers Of Pumps |
3 |
|
Placement Accuracy |
±0.02mm |
|
Operate System |
Windows XP-NOVA |
|
Power |
160~200W |
|
Electricity Supply |
110V/220V |
|
Machine Size |
820(L)*650(W)*410(H)mm |
|
Packing Size |
1001(L)*961(W)*568(H)mm |
| N.W./G.W. |
55Kg/80Kg |
Details
Full vision 2 heads system
2 high-precision placement heads with ±180°
rotation could satisfy the need of wide range components.
Patented Automatic Peel-box
Patented electromagnetic actuators, you don't need to get rid of
the wasted nylon film manually, which saves you more time and effort.

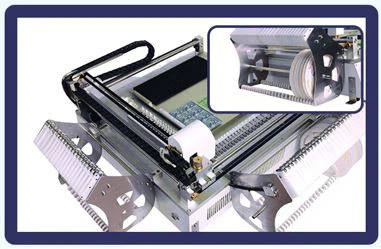

Flexible PCB positioning
By using PCB support bars and pins, wherever you want
to put the PCB and whatever the shape of your PCB is,
all can be handled well.

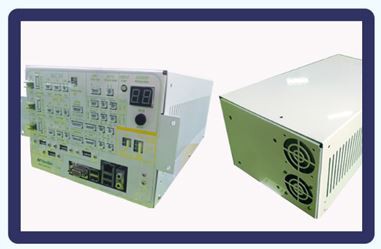

Integrated Controller
More stable performance and easier to do maintenance.
PCB Angle Correction
PCB angle will influence the accuracy of mounting.
The angle more closer to 0 degree the better, and the angel deviation need to be within 1 degree.
The angle of PCB is generated according to panelized PCB coordinates, but we can also adjust the angle by manual.
Click" PCB angle" button, according to the index of machine to choose two points, then a new PCB angle will be generated. (Note, the two points need to be in one vertical or horizontal line).

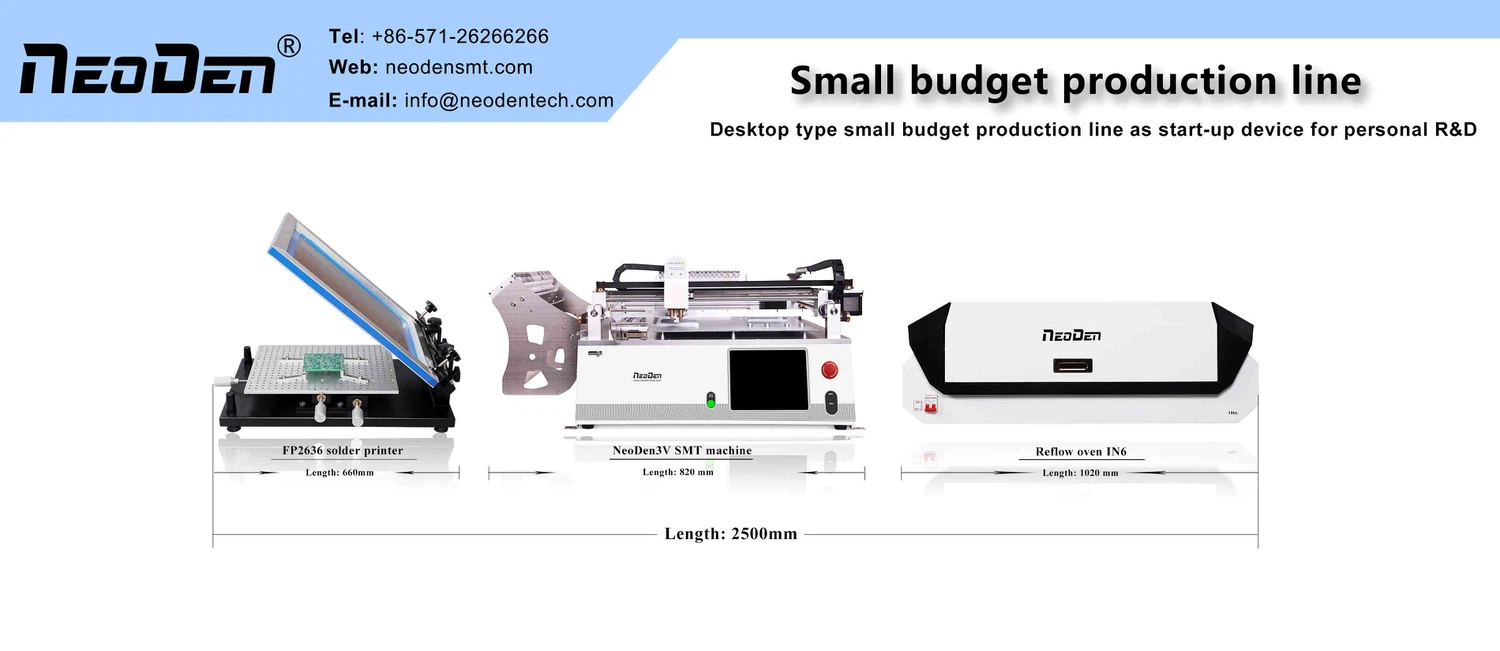

Provide one-stop SMT assembly production line
Product introduction
Stencil printer FP2636
1. L supports and pins to fix PCB, applicable for multiple types PCBs' fixation and printing, more flexible and convenient.
2. The mechanical fixation frame for quick installation and replacement of frameless stencils,
SMT machine NeoDen4
Installed with high speed industry CCD cameras, and work with our patented image distortion processing algorithms, enable cameras can recognize and align different components of four nozzles.
With the help of upper-camera and down looking camera, they will display the picking process with high definition image.
Reflow oven NeoDen IN6
The design implements an aluminum alloy heating plate that increases the energy-efficiency of the system. The internal smoke filtering system improves the product's performance and reduces harmful output, too.
Working files are storable within the oven, and both Celsius and Fahrenheit formats are available to users.
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
FAQ
Q1: How can I buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping , payment method and other terms.
(3) Send you the perfroma invoice and confirm your order.
(4) Make the payment according to the method put on proforma nvoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
Q2: How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
Q3: Is it hard to use these machines?
A: No, not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
