Fully Automatic Pick And Place Machines
Fully automatic pick and place machines
Brief Introduction:
NeoDen4 is a flexible pick and place machine for all types of production.
With placement rates of 10,000 cph, up to 48 electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time.
It is a compact placing machine that offers the flexibility (component/PCB/Production flexibility) and speed to meet the demands of an ever-changing market.
NeoDen4 without Internal Rails:
| Model | NeoDen4 | |
| Placement Rate: | Vison on | 5000PCS/Hour |
| Vison off | 10000PCS/Hour | |
| Feeder Capacity | Tape Reel Feeders:48 | |
| Vibration Feeder:5pcs | ||
| Tray Feeder:45pcs | ||
| Component Range | Smallest Component | 0201 |
| Largest Component | TQFP240 | |
| Max Height | 5mm | |
| Rotation | Rotation:+/-180 | |
| Positioning Accuracy | +/-0.02mm | |
| Applicable PCB area | 310mm*400mm | |
| 140*400mm(With 1 waffle Tray) | ||
| Main Control | GUI | |
| Power Supply | 220V, 50Hz(convertible to 110V） | |
| Power | 180W | |
| G.W. | 90KG | |
| Packing Size | 94*74*65cm | |
About NeoDen:
Established in 2010, NeoDen Technology Co.,Ltd., is a high-tech corporation located in Hangzhou, China. Our primary products are desktop automatic pick and place machines. In China, we are the leader in this technology with CE and more than 30 patents registered.

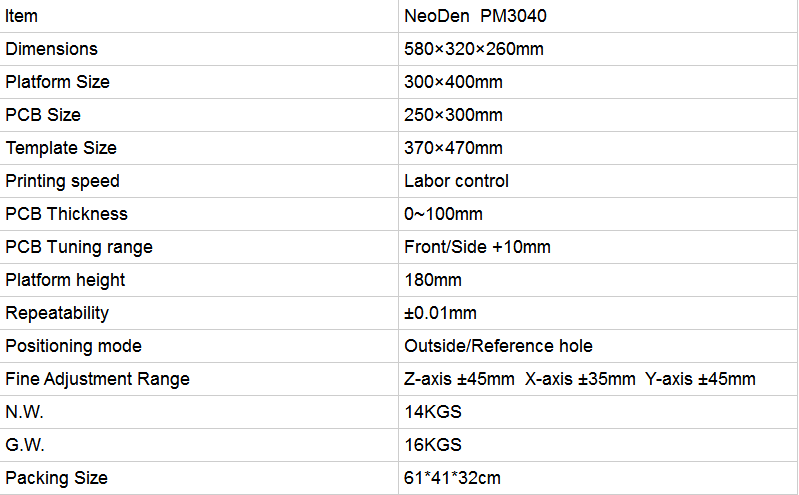

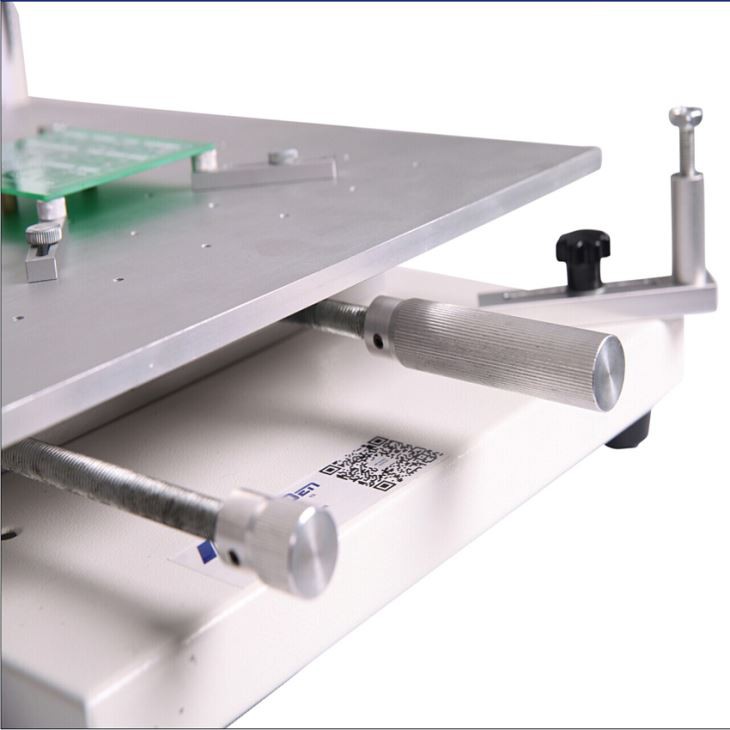

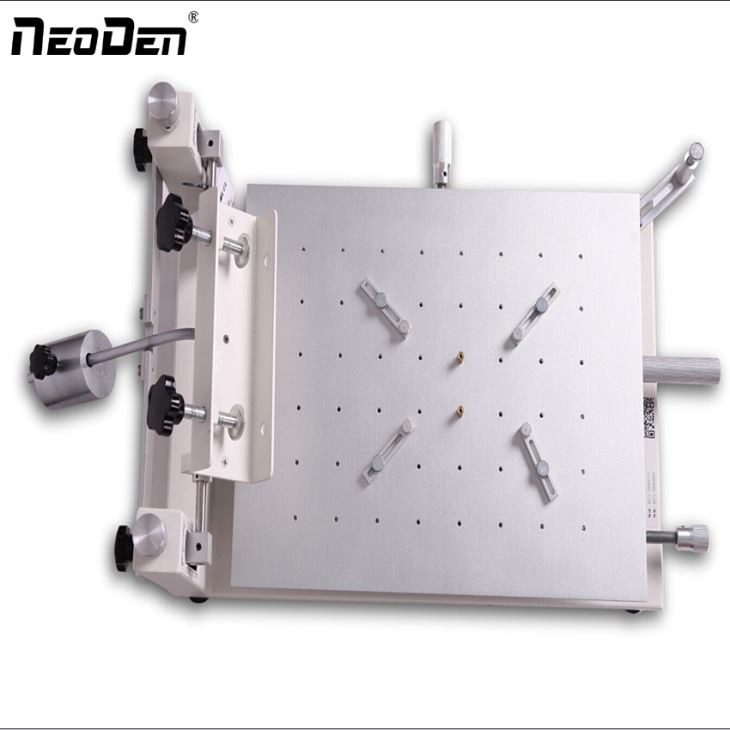

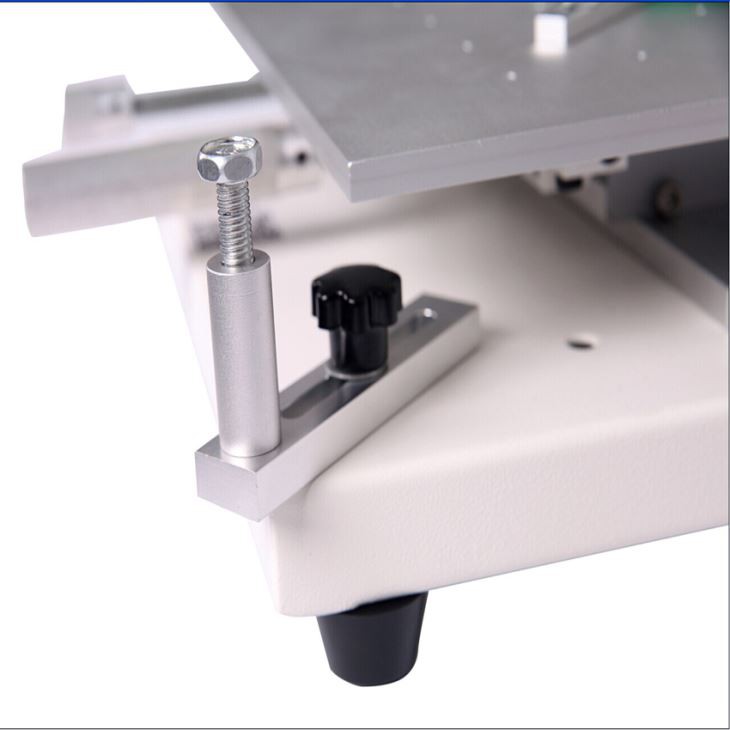

PM3040 Printer:
T-962A Oven:
Videos:
Payment and Delivery:
1) Payment method: PayPal,Credit Card, Wire Transfer,etc
2) The default delivery method is via TNT (door to door), unless specific requirement from customer.
3) Delivery time: 5-7 working days.
Warranty Period:
The guarantee period is 1 year(NeoDen4 has 2 years) from the time of purchase and lifelong service support.
NeoDen provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information:
