Product Details ofDesktop SMT Pick and Place Machine
Features of NeoDen4 SMT pick and place machine
NeoDen4 desktop SMT pick and place machine is with dual cameras, auto rails, auto electronic feeders and 4 placement heads, which could help to handle 0201, BGA, QFN and 0.8m/1.2m/1.5m LED strip.
NeoDen4 SMT machine is the best choice to satisfy all demands of high precision, high capacity, stable performance and low cost.
This is a huge breakthrough not only for NeoDen, but also for small and medium-sized enterprises, those who want to improve placement accuracy and speed up PCB assembly with a limited budget.
Specification
| Number of Heads with Vision enabled | 4 | Component sizes with vision | Smallest Component size: 0201 |
|
Placement Rate ( under factory test condition) |
with Vision: 5000 | Largest Component size: TQFP240 | |
| without Vision: 10000 | Component Max Height | 5 mm | |
| Feeder capacity | Tape Reel Feeders: 48 (all 8mm) | Resolution | X/Y axis: 0.01mm |
| Vibrating Feeders: 5 | Z axis: 0.1mm | ||
| IC tray capacity | 5 | Rotation | +/-180° (360°) |
| Applicable PCB area | with Internal conveyor: 310*1500mm | Placement Area | without waffle Tray: 310*1500 mm |
| without internal conveyor: 350*400mm | with 1 waffle Tray: 140*1500 mm | ||
| Power Supply | 110V/220V | Power | 180w |
Details

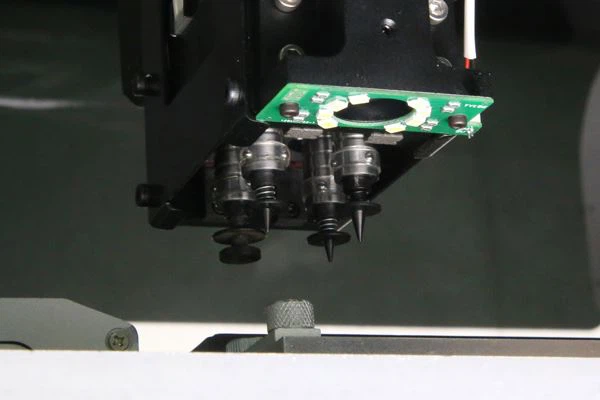

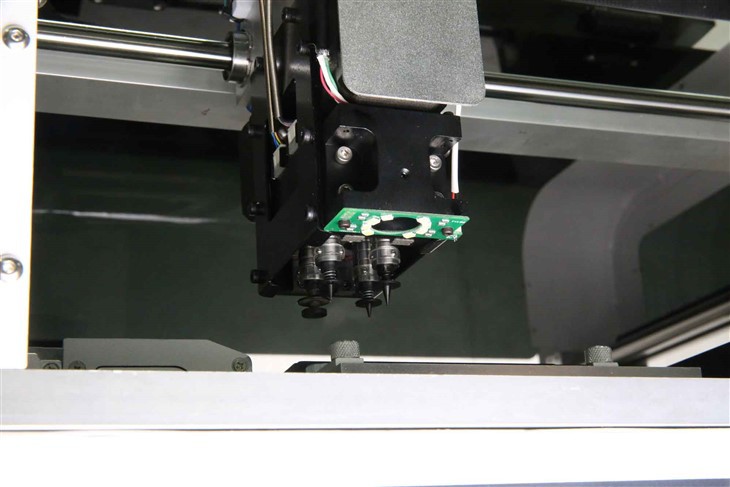

Four placement heads
Any size nozzle can be installed in any of the four locations in the head,
so a single machine can handle all of the necessary components without the need for nozzle changes.

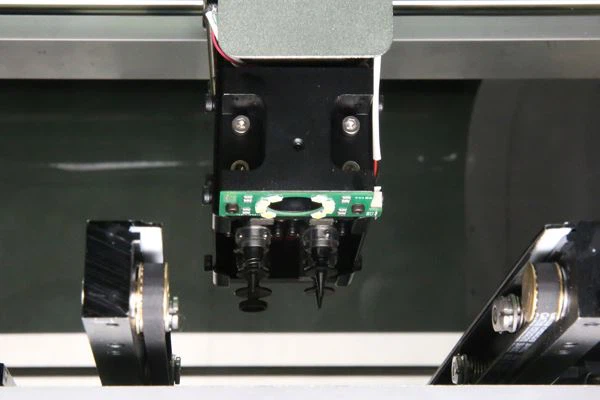

Dual Vision System
The NeoDen4 features a high-precision, two-camera vision system.
The downward-looking camera, The upward-looking camera.

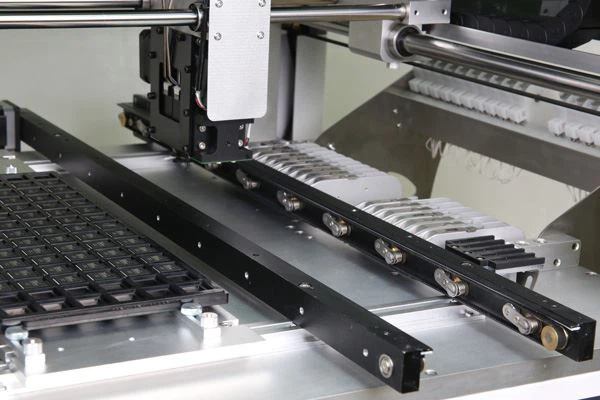

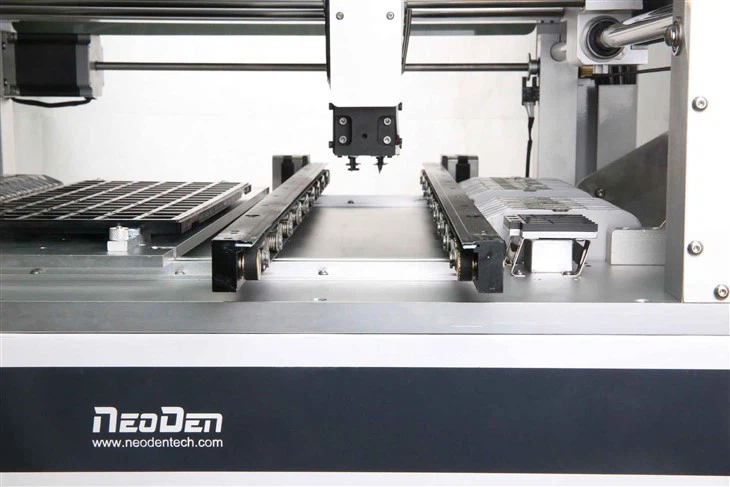

Auto Rail
Machines equipped with the auto-loading rail system can accommodate boards from to in width, and in length.
Even when the rail system is installed, any space left over on the table is still available for trays and short tapes.

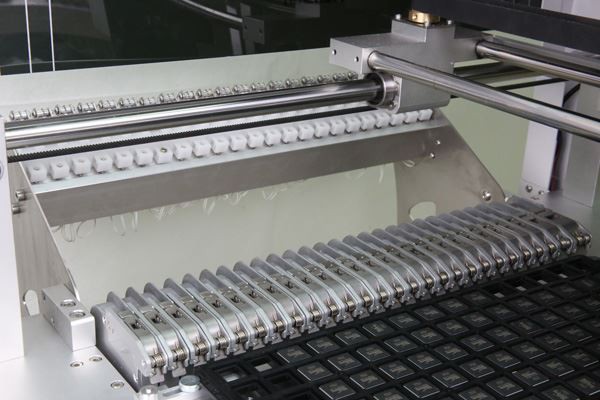

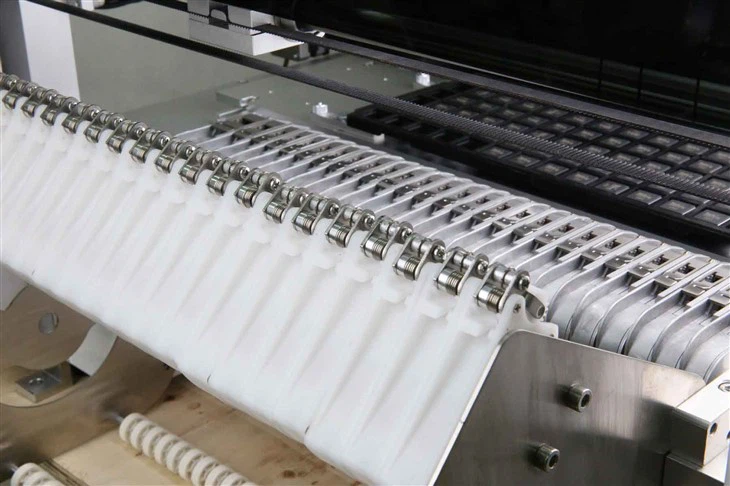

Automatic Electric Feeders
NeoDen4 can accommodate up to 48 8mm tape-and-reel feeders on its left and right rails,
Any size feeder (8, 12, 16 and 24mm) can be installed in any combination or order on the left and right sides of the machine.
Package
NeoDen4 Desktop SMT Pick And Place Machine Video
