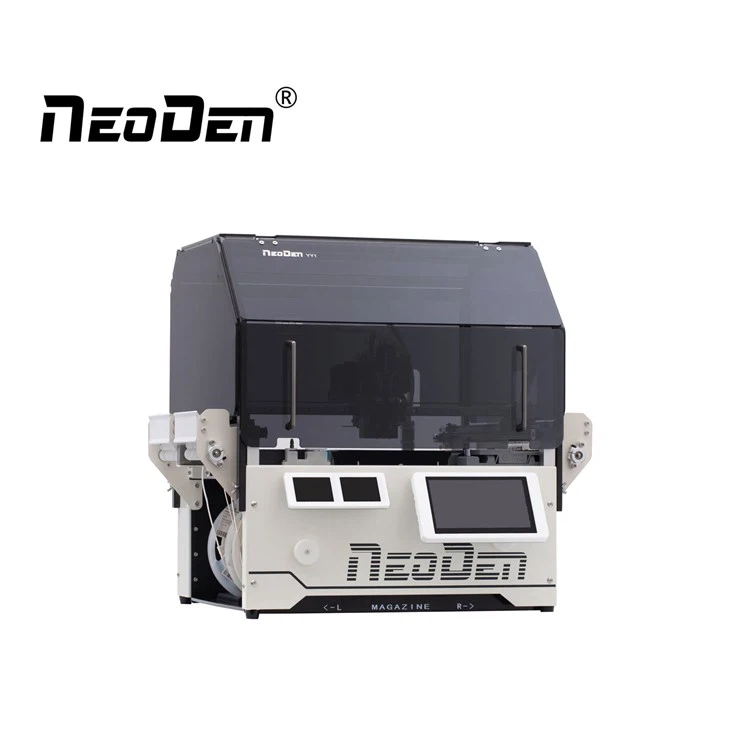

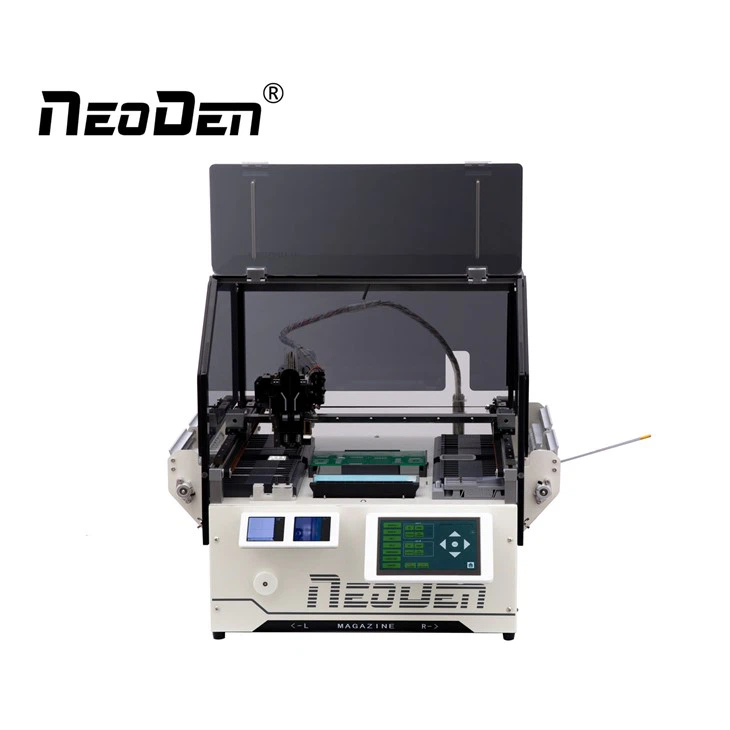

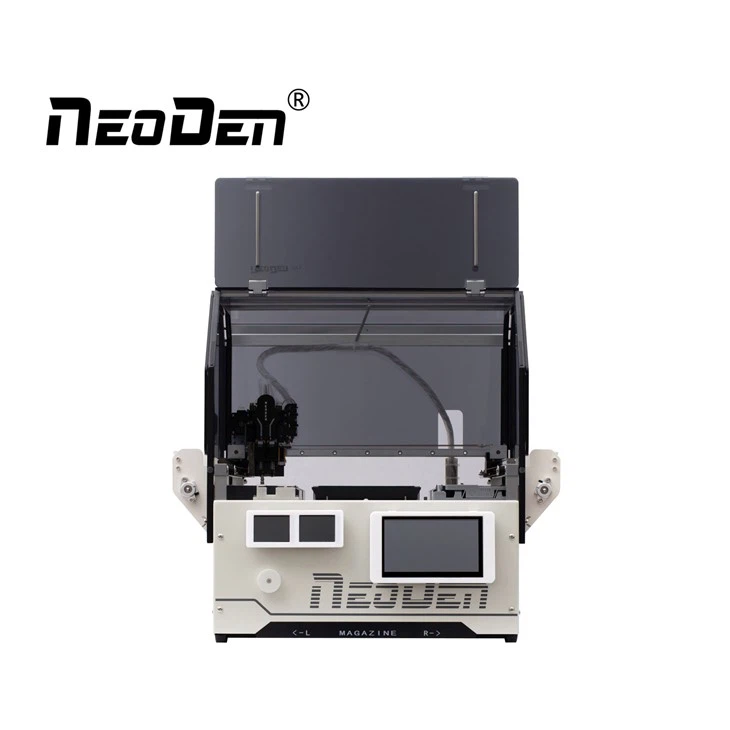

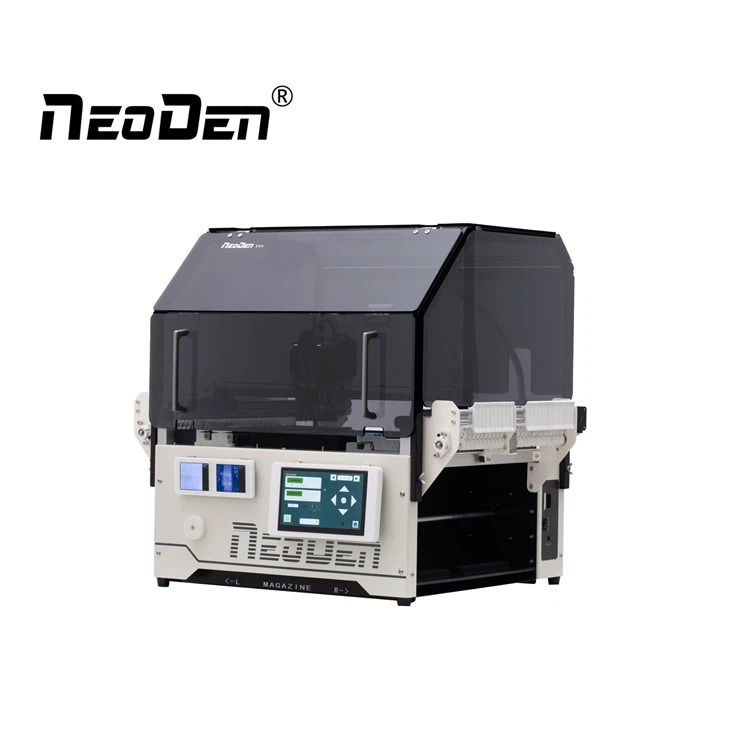

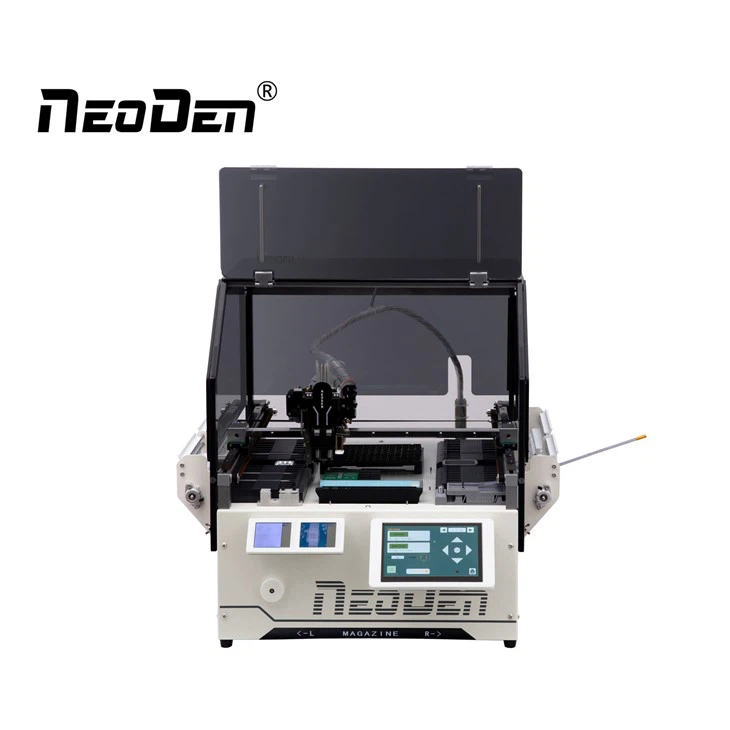

Desktop PCB Pick and Place Machine
desktop PCB pick and place machine
Feature

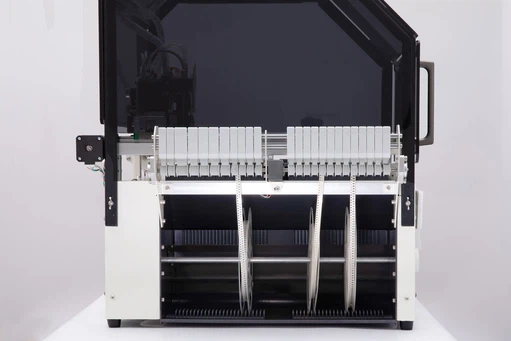

1. Brand new patented peeling gadget
It's simple but functional, it's easy to install and flexible to remove. Compared with the peelers of TM240A, it doesn't need to collect wasted film. Compared with the peelers of 3V, it solve the issue of unstability and offset issue.

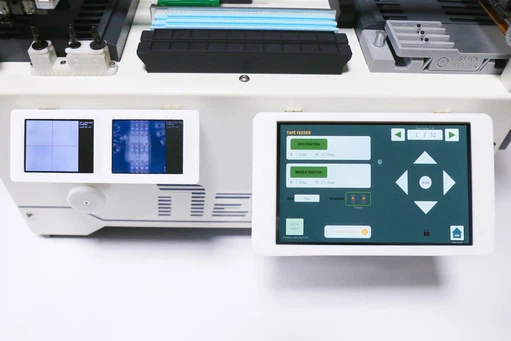

2. User friendly touch screen
It comes with a high-definition capacitive touch screen, which can be adjusted up and down to meet the needs of different viewing angles and enhance the user experiences.

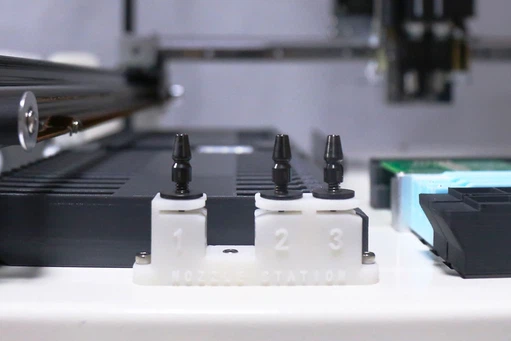

3. Auto nozzle changer
It has 3 slots for nozzles replacement, which realizes maximum optimum of nozzles and achieve higher continuity of production.
4. Easy to do maintenance
The whole machine is highly integrated one-board design, easy maintenance and debugging.
Few boards and pumps on the side of machine, very clear and simple cables.
The side acrylic covers are fixed on the machine with magnetic, which can be easily removed.
There are 4 flexible screws can be loosened to lower the height of machine's frame for shipping.
Specification
| Product name | NeoDen YY1 desktop PCB pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |

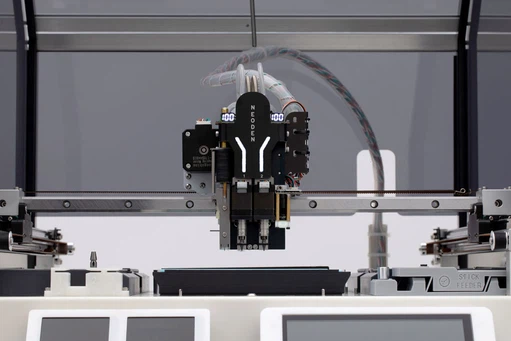

Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |

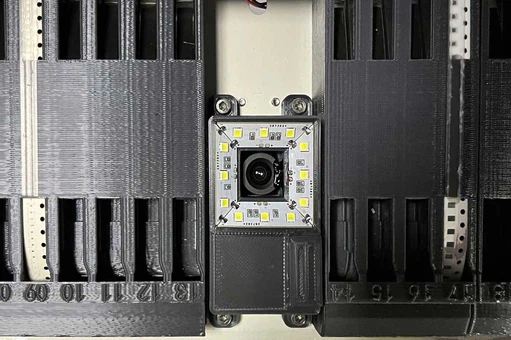

Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm(wooden box) | ||
|
Bulk Feeder: 19 |
Details
Our Service
1. Provide video tutorial after purchasing the product.
2. 24-hour online support.
3. Professional after-sales technical team.
4. Free broken parts (Within 2 Year warranty).

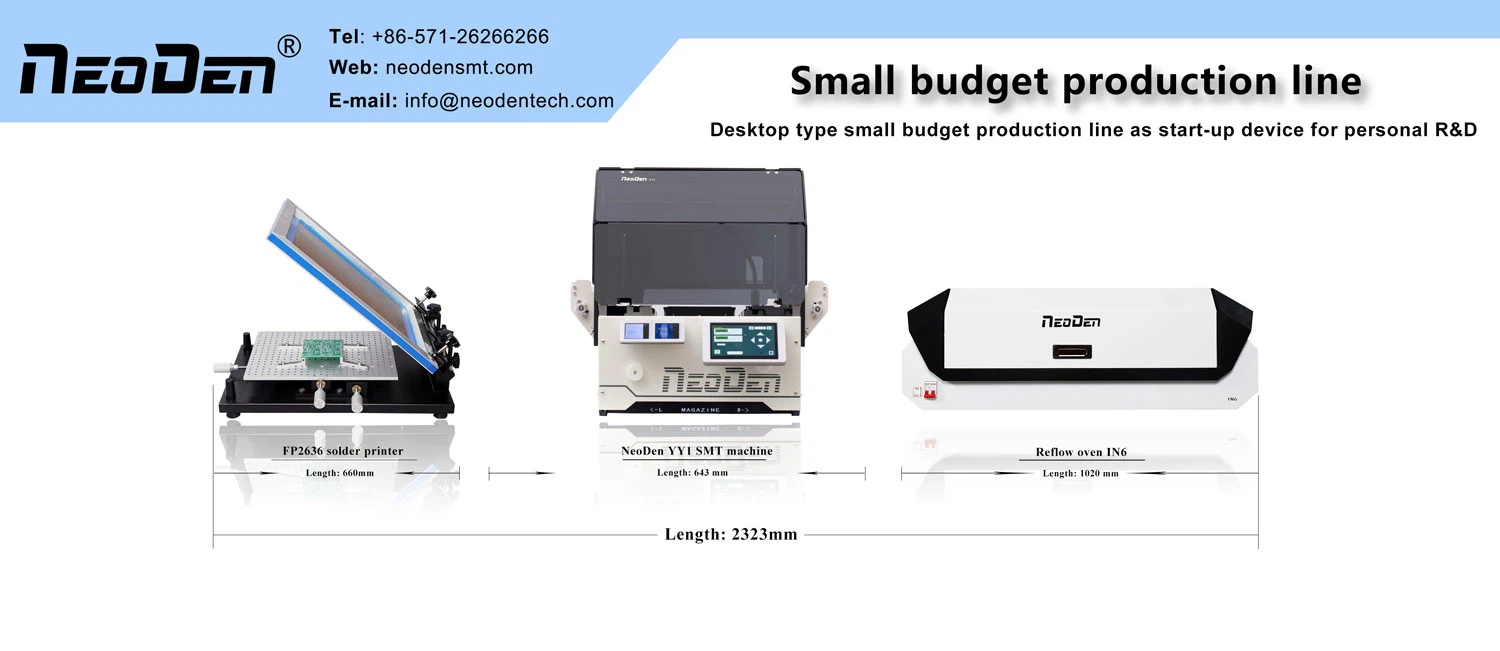

Provide one-stop SMT assembly production line
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
