4 Head Pick and Place Machine
NeoDen4 4 head pick and place machine Video
NeoDen4 4 head pick and place machine
Feature
At the core, the NeoDen4 4 head pick and place machine is a 4-axis Windows- controlled CNC with four separate vacuum nozzles, each connected to its own vacuum pump.
The machine employs a single X-Y coordinate system covering the entire movement range of the head, which is 310x500mm. With resolution of .01mm (10µm) and repeatability of .02mm (20µm), any X -Y coordinate can be identified as the location of a feeder, the start of an array of components in a tray or short tape, a fiducial or the location at which a component is to be placed on a circuit board.
Specification
| Product name | NeoDen4 4 head pick and place machine | Component Range | Smallest Size: 0201 |
| Machine Style | Single Gantry with 4 Heads | Biggest Size: TQFP240 | |
| Placement Rate | 4000CPH | Max Height: 5mm | |
| External Dimension | L 680*W 870*H 460mm | Feeders | 48pcs |
| Max applicable PCB | 290mm*1200mm | Average working power | 220V/160W |
Details
On-line Dual Rails
NeoDen independent research and development.
Automatic rails, universal aerial interface, support connect to conventional converor directly.
Set the feeding position at anywhere
Four nozzles
Any size nozzle can be installed in any of the four locations
Mount at the same time with 360 degrees
rotation at -180 to 180.
The downward-looking camera
On the head is used for precision location of feeders
and PCB placement points.
The upward-looking camera
The vision system computes the difference between
the ideal and actual position

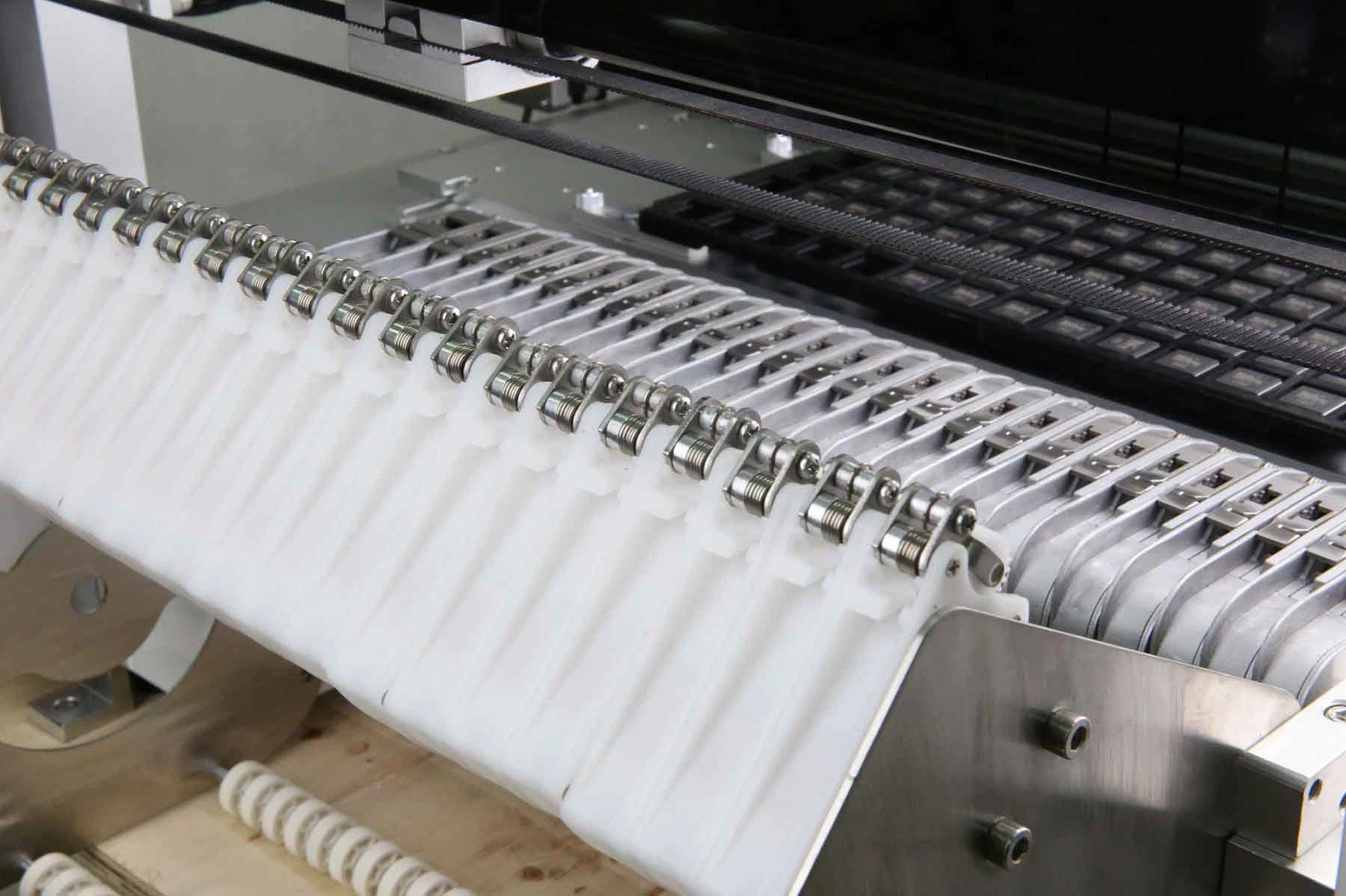

48 8mm tape-and-reel feeders
Designed in a suspended,
fully symmetric and high degree of coupling way.
Adopts new technique-feeding error corrections,
which smooths the feeding and picking.
