Pick and place machine is a kind of robotic machine which are used to place electronics components onto a printing circuit board. They are used for high speed, high precision placing of broad range of electronic components.
Pick and place machines are relatively sophisticated machines use for PCB assembly. As the name indicates the pick components up and place them onto the printed circuit board.

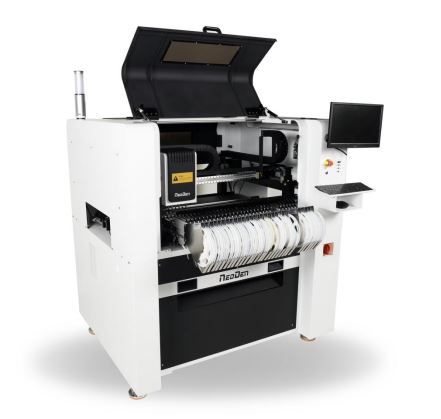

NeoDen7-typical pick and place machine
The pick and place machine has a head on an arm which can pick and place the components in reels, tubes or tray onto the PCB board. The heads use a small vacuum nozzle to pick up chips and then release them onto board.
6 vacuum nozzle on 6 heads - NeoDen7
With the improvement in feeder technology, tape format is becoming the preferred method of presenting parts on a pick and place machine. Early feeder heads were much bulkier and as a result it was not designed to be the mobile part of the system. Rather, the PCB itself was mounted on a moving platform that aligned the areas of the board to be populated with the feeder head above.

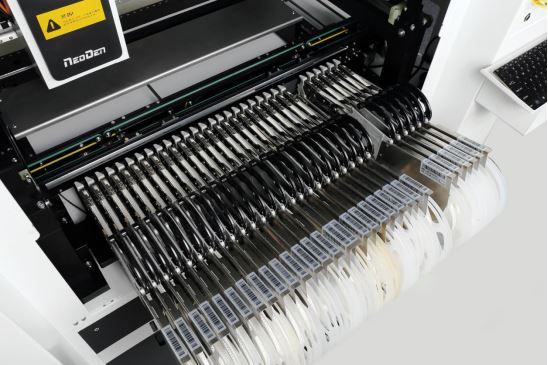

Pneumatic feeder on NeoDen7
Accurate positioning is of great importance because some components are very small.
The pick and place machine is pre-programmed with the information about component positions so that they know where to place the components. This programme is normally developed directly from the printed circuit board design.
Hangzhou NeoDen Technology Co.,Ltd was established in 2010. As a developer and manufacturer of pick and place machine, NeoDen provides SMT solutions all over the globe to a wide range of companies from start-ups to large multinational organizations, especially start-up owners, electronics engineers and lab researchers, those who want to do prototyping and medium-large batch production with a limited budget.
If you want to more about us new product NeoDen 7, please contact us thanks !
