SMD LED Pick and Place Machine
NeoDen4 Introduction
NeoDen4 is an SMD LED pick and place machine equipped with dual CCD cameras, auto rails, auto electronic feeders and 4 placement heads, which could support to mount 0201, BGA, QFN.
Especially, with its Internal rails, it is applicable for 0.6m/1.2m/1.5m LED strip.
Specification
| Product name | NeoDen4 SMD LED pick and place machine |
Machine Style | Single Gantry with 4 Heads |
Placement Rate | 4000CPH |
External Dimension | L 680*W 870*H 460mm |
Max applicable PCB | 290mm*1200mm |

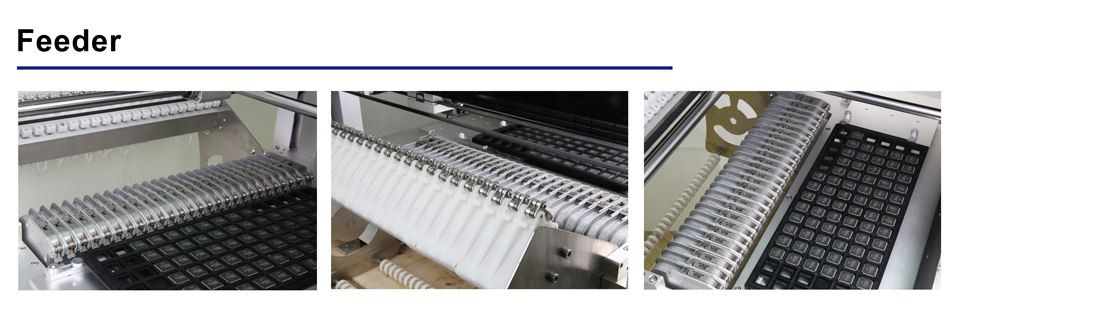

Feeders | 48pcs |
Average working power | 220V/160W |
Component Range | Smallest Size: 0201 |
Biggest Size: TQFP240 | |
Max Height: 5mm |
Detail
Standard Accessories List
1) Pick and Place Machine NeoDen4: 1
2) Nozzle: Totally6 (CN065=2,CN140=2,CN400=1,CN220=1)
3) 8G Flash Drive: 1
4) Power Cord(5M): 1
5) Video training course: 1
6) Double Sided Adhesive Tape: 2
7) Allen wrench Set: 5
8) Tool Box: 1
9) Reel holder stand: 1
10) Vibration Feeder: 1
11) Rail Parts: 4
12) User Manual: 1
Warranty
The guarantee period is 2 years from the time of purchase and lifelong service support as well as a long-term factory price supply.
NeoDen will provide online Q/A and troubleshooting support and technical advice service.
