SMT Line Equipment
NeoDen 3V has been discontinued. Looking for an upgrade?
Discover the NeoDen YY1, a more powerful and cost-effective alternative built to exceed your needs.
NeoDen SMT Line Equipment video
NeoDen SMT Line Equipment
Feature

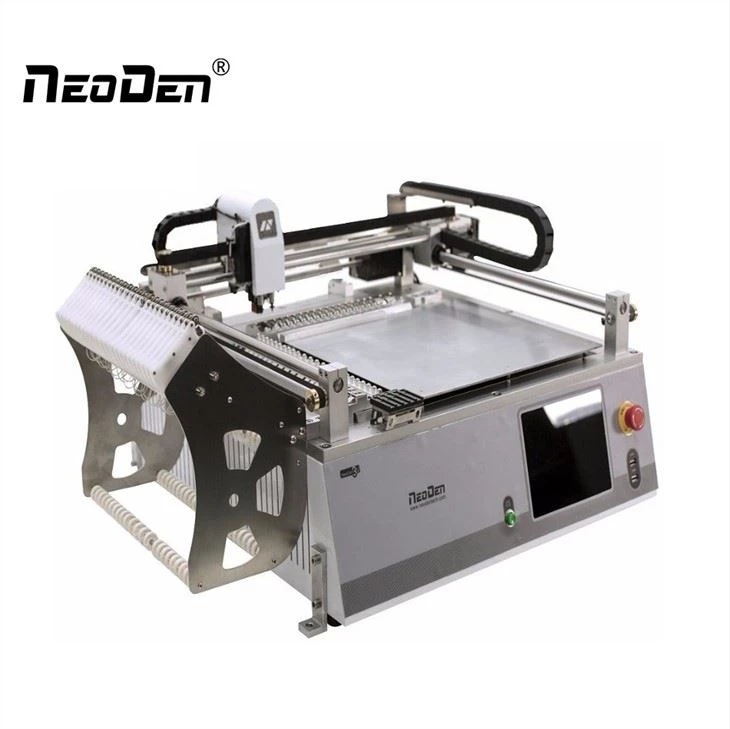

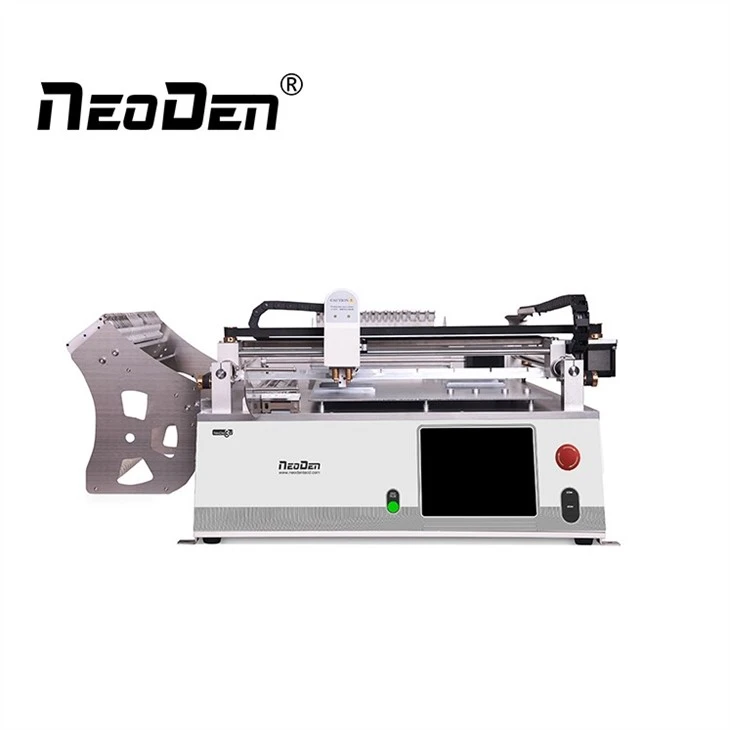

NeoDen 3V are desktop automatic pick and place machines especially developed for research laboratories and small medium manufacturing enterprises however it will also be suitable for the serious hobbyist. These automatic pick and place machines are suitable for small batch production, laboratory research and development, product sample trials, LED SMT processing and other similar processes. |
Specification
|
Produt name |
NeoDen SMT Line Equipment |
|
Number of heads |
2 |
|
Alignment |
Vision |
|
Rotation |
±180° |
|
Placement Rate |
5000CPH (without vision); 3500CPH (with vision) |
|
Feeder Capacity |
Tape feeder: 44 (all 8mm) |
|
Vibration feeder: 0~5 |
|
|
Tray feeder: 5~10 (Customization supported) |
|
|
Board Dimension |
Maximum: 320*390mm |
|
Component Range |
Smallest components: 0402 |
|
Largest components: TQFP144 |
|
|
Max height: 5mm |
|
|
Numbers Of Pumps |
3 |
|
Placement Accuracy |
±0.02mm |
|
Operate System |
Windows XP-NOVA |
|
Power |
160~200W |
|
Electricity Supply |
110V/220V |
|
Machine Size |
820(L)*680(W)*410(H)mm |
|
Packing Size |
1001(L)*960(W)*580(H)mm |
| N.W./G.W. |
60Kg/85Kg |
Details

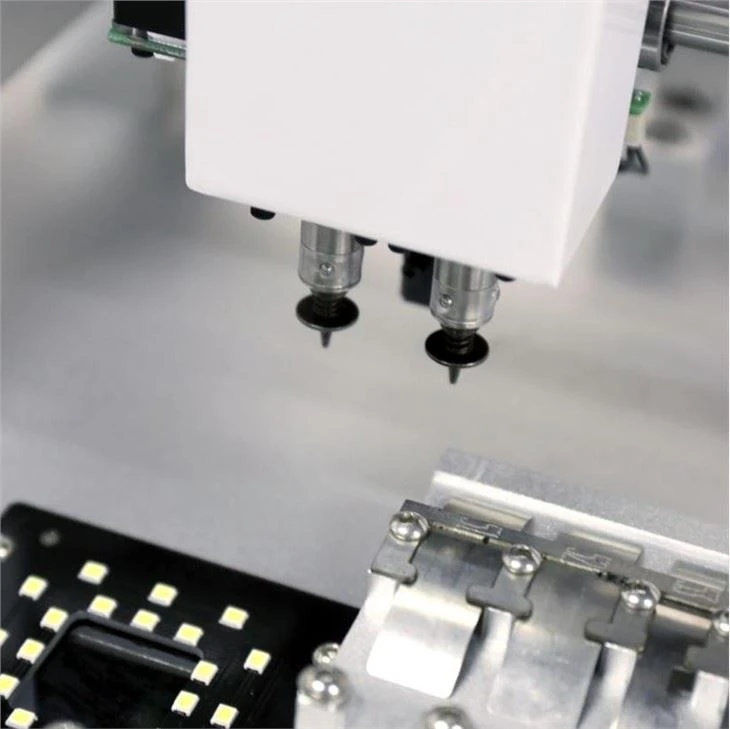

2 high-precision heads
±180° rotation
Satisfy the need of wide range components
Flexible PCB positioning
Put the component anywhere
handl well different shape of PCB

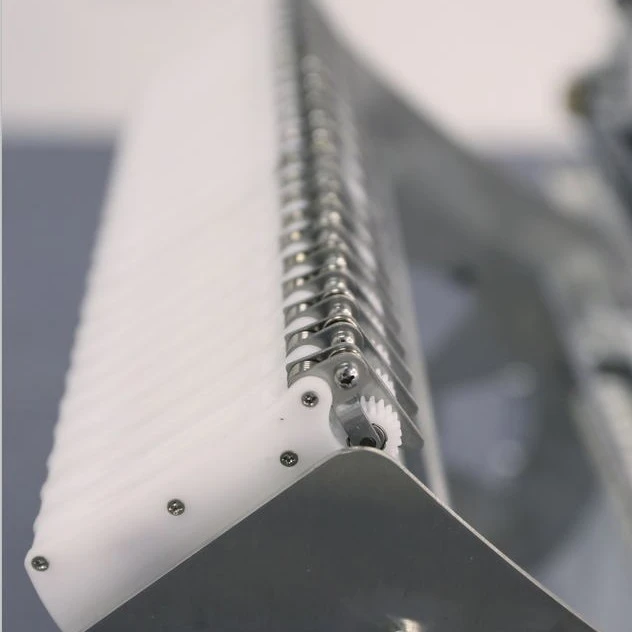

Patented automatic Peel-box
Patented electromagnetic actuators
saves you more time and effort
Integrated Controller
More stable performance and easier to do maintenance.
Quality control
We have QC person stay on the production lines do to the inspection.
All products must have been inspected before delivery.
We do inline inspection and final inspection.
1. All raw material checked once it arrive our factory.
2. All pieces and logo and all details checked during production.
3. All packing details checked during production.
4. All production quality and packing checked on final inspection after finished.
Provide one-stop SMT assembly production line
Especially a good choice for customers who prefer in prototype project as a startup device. If you need, please feel free to coantact us.
FAQ
Q1: This is the first time I use this kind of machine, is it easy to operate?
A: Yes. There are English manual and guide video that show you how to use machine.
If there is any doubt in the process of operating the machine, please feel free contact us.
We also provide overseas on-site service.
Q2: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products.
Q3: This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
About us
Factory
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one stop SMT equipment.
Certification
Exhibition
If you need, please feel free to contact us for more information!
