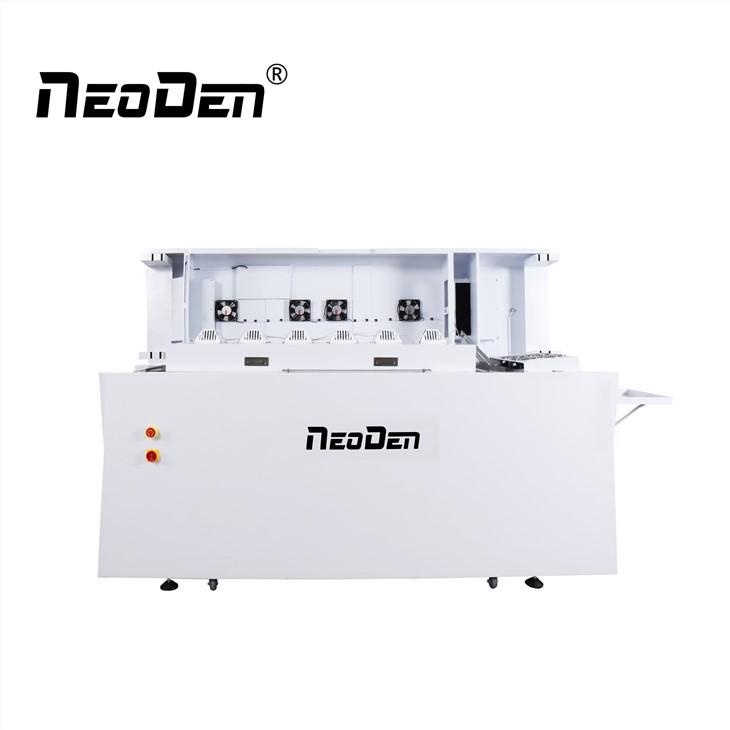

Reflow Soldering Oven
Reflow soldering oven
Feature
1. The unique design of heating module has the characteristics of high temperature control accuracy, uniform temperature distribution in the thermal compensation area, high thermal compensation efficiency and low power consumption.
2. PCB soldering temperature curve can be displayed based on real-time measurement.

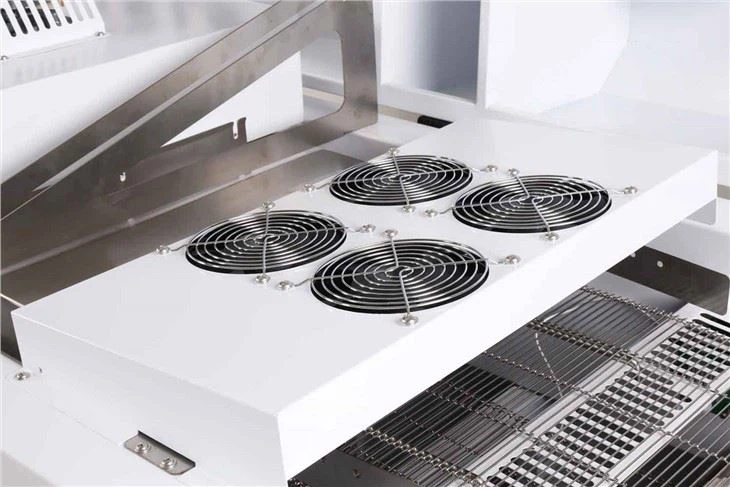

3. The cooling zone with independent circulating air design completely isolates the influence of the external environment on the internal temperature chambers.
4. Exclusively designed PCB guide device to realize the direct connection between the mesh chain and the conveyor.
Specification
| Product name | NeoDen IN12 reflow soldering oven | Heating Zone Quantity | Upper6 / Down6 |
| Cooling Fan | Upper4 | Conveyor Speed | 50～600 mm/min |
| Temperature Range | Room temperature～300℃ | Temperature Accuracy | 1℃ |
| PCB Temperature Deviation | ±2℃ | Max soldering height | 35mm(includes PCB thickness) |
| Max Soldering Width (PCB Width) | 350mm | Length Process Chamber | 1354mm |
| Electricity Supply | AC 220v/single phase | Machine Size | L2300mm×W650mm×H1280mm |
| Heat-up Time | 30 min | Net Weight | 300Kgs |
Features
 |
Energy conservation and environment protection
Built-in welding smoke filtering system
low power consumption low power supply requirements
|
|
Intelligent control system
The custom developed intelligent control system
Professional and unique 4-way board surface temperature monitoring system
Real-time measure PCB soldering temperature
|
 |
 |
Elegant appearance
More in line with the high-end use environment Lightweight, miniaturization, professional industrial design Beautiful and elegant indicator design
|
|
Safer to use
The upper temperature cover is automatically limited once opened effectively ensuring the personal safety for the operators.
|
 |
Our Service
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
If you need, please feel free to contact us for more information.
Provide one-stop SMT assembly production line
FAQ
Q1. Is there the products tested before shipping?
A. Yes, of course.
All of our conveyor belt we all will has been 100% QC before shipping.
We test every batch every day.
Q2. How your quality guarantee?
A. We have 100% quality guarantee to customers.
We will be responsible for any quality problem.
Q3. What is your advantage compared with your competitors?
A. (1). Qualified Manufacturer
(2). Reliable Quality Control
(3). Competitive Price
(4). High Efficiency working (24*7hours)
(5). One-Stop Service
