Smd Electronics PCBA Prototype Line
SMD electronics PCBA production line
The SMD electronics PCBA production line includes stencil solder printer, pick and place machine, conveyor, soldering machine.
Stencil solder printer-print solder paste on the PCB board
Pick and place place- assembly components to PCB
Conveyor-Connect pnp machine with reflow oven
Soldering machine-solder components with PCB board

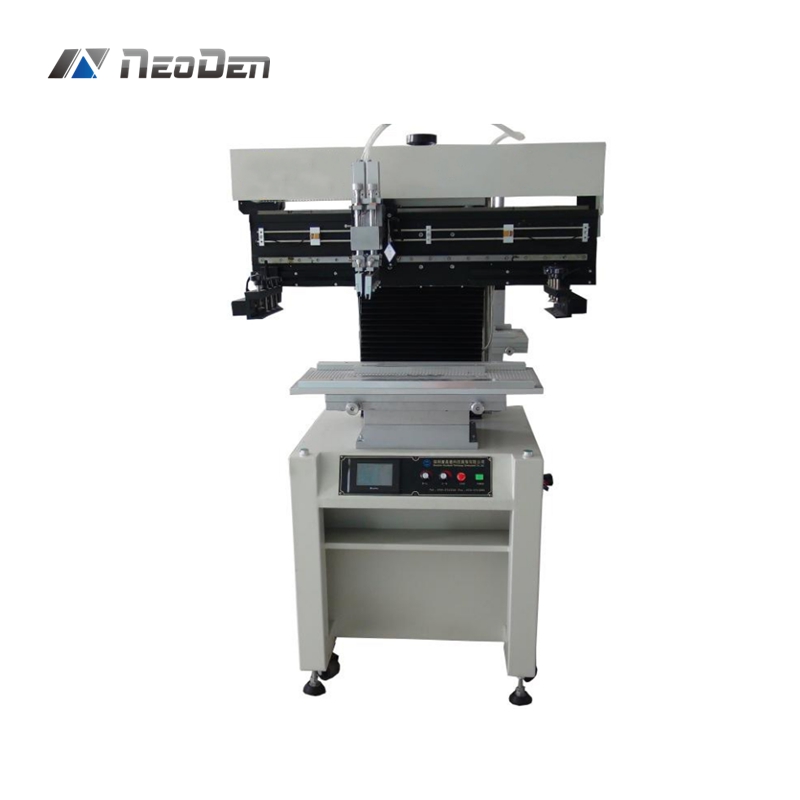

Semi-auto solder printer YS350
ITEMS | SPECIFICATION |
PCB size | Max:400*240mm |
Printing area | 500*320mm |
PCB fixed system | Pin positioning |
Frame size | L(550-650)*W(370-470) |
Adjusting for table | front/rear±10mm，left/right±10mm |
Printing Accuracy | ±0.2mm |
Repeating Accuracy | ±0.2mm |
PCB thickness | 0.2-2.0mm |
Air source | 4-6kg/c㎡ |
Power supply | AC220V 50HZ/110V 60HZ |
Dimension | L800*W700*H1700 |
Packing size | 1050*900*1850 |
Net weight | 230kg |
Gross weight | 280KG |
Pick and place machine-NeoDen4
Components Range
0402, 0603, 0805, 1206, 1812, 2010, 2512, SOT-23, 3528, 5050, SOT89, SOP-8, SOP-14, SOP-16, SOT-223, SOT-252,
IC components (IC size under 20*20mm, PIN foot less than 100, fine-pitch above 0.5mm, the height of component less than 3mm.
1 | Number of Heads with Vision enabled | 4 |
2 | Placement Rate( under factory test condition) | WITH VISION:5000 |
WITHOUT VISION:10000 | ||
3 | Feeder capacity | TAPE REEL FEEDERS:48（all 8mm) |
VIBRATING FEEDERS:5 | ||
4 | IC tray capacity | 5 |
5 | Component sizes with vision | Smallest Component size:0201 |
Largest Component size:TQFP240 | ||
6 | Component Max Height | 5MM |
7 | Resolution | X/Y axis:0.01MM |
Z axis:0.1MM | ||
9 | Rotation | +/-180°(360°) |
10 | Positioning Accuracy | +/-0.02MM |
11 | X-Y repeatability | +/-0.02MM |
12 | Applicable PCB area
| With Internal conveyor:310*1500MM |
Without internal conveyor:350*400MM | ||
13 | Placement Area | Without waffle Tray：310*1500MM |
With 1 waffle Tray：140*1500MM |

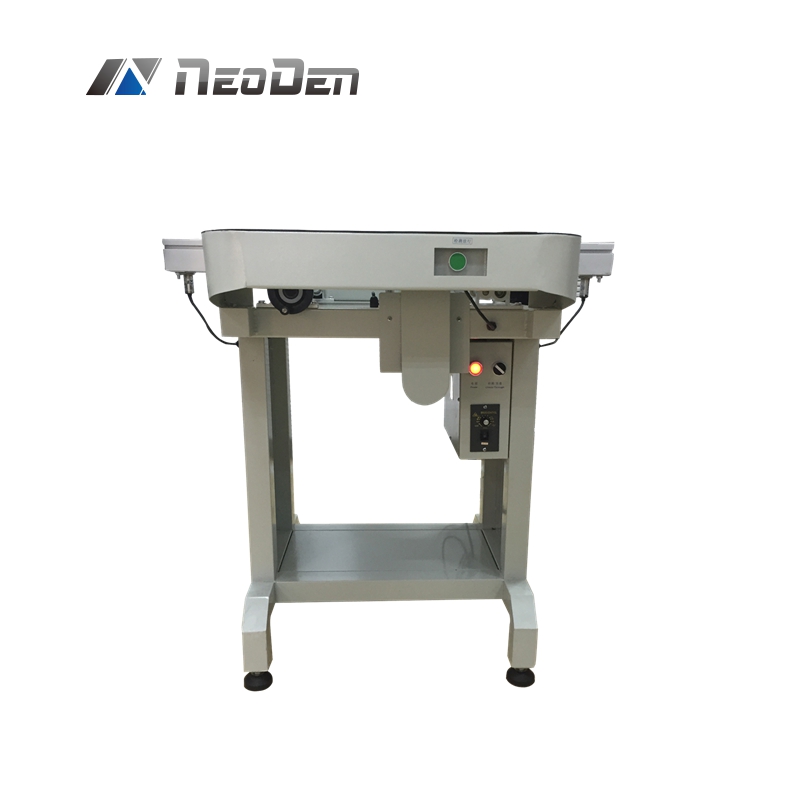

Conveyor-J08

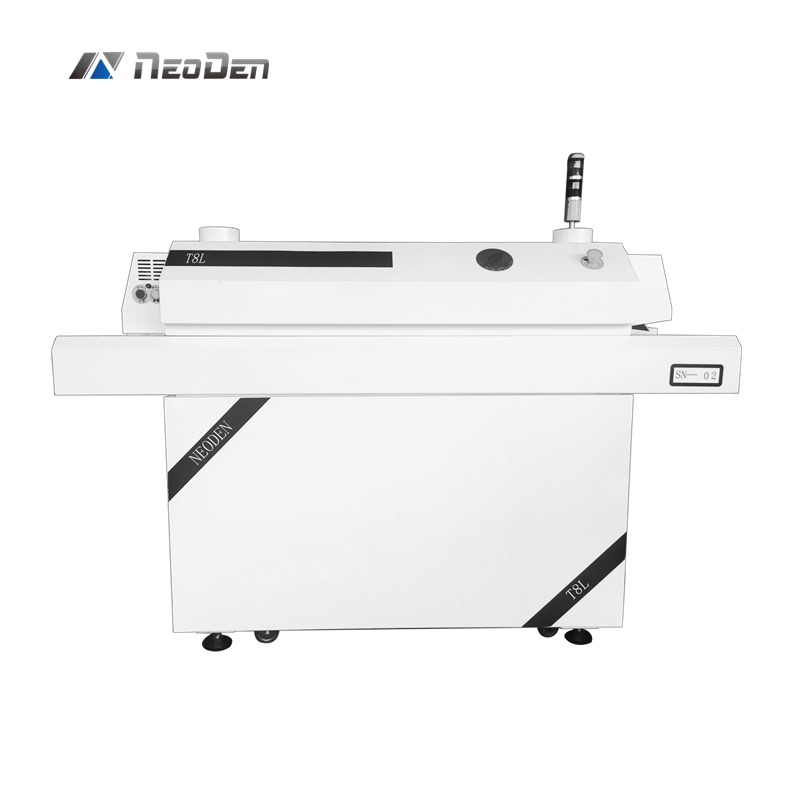

Reflow oven-T8L
NeoDen provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information:
