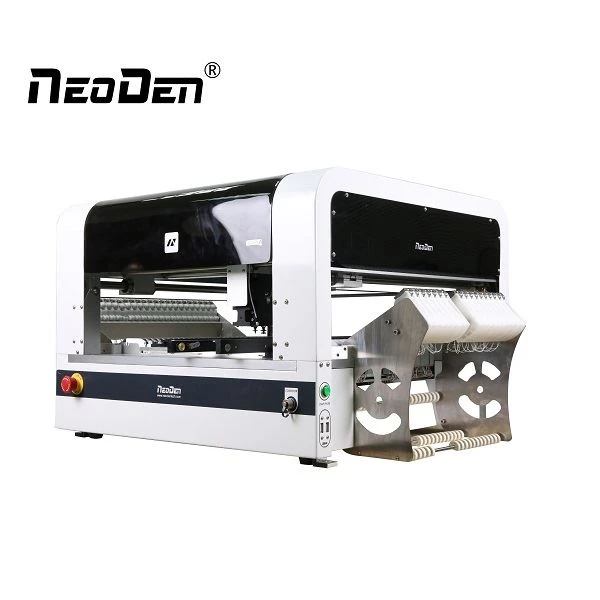

Mini Automatic SMT Pick and Place Machine
■ Placement Rate up to 4,000CPH
■ Smallest size of 0201 to a largest size of TQFP240
■ Feeder Capacity of 48 pcs Feeders
NeoDen4 is designed to satisfy demands for high precision, high capacity, stable performance, and low cost. Its low cost makes it a great breakthrough for small and medium-sized enterprises with a limited budget.
The device has a lightweight body and occupies a small area. It features a user-friendly interface that does not require a professional SMT engineer, making it an entry-level device. This makes it especially suitable for laboratory research and development, samples, and prototyping.
Send Inquiry
Product Details ofMini Automatic SMT Pick and Place Machine
Mini Automatic SMT Pick And Place Machine video
Description
Mini Automatic SMT Pick And Place Machine NeoDen4 is the best choice to satisfy all demands of high precision, high capacity, stable performance and low cost.
NEODEN independent research and development on-line dual rails:
A. Continuous automatic feeding the boards during the mounting.
B. Set the feeding position at anywhere shorten the mounting route.
C. We have leading technology in SMT industry what Mark point relocated technology, can mount overlong boards easily.
|
|
Specification
|
Product Name |
Mini Automatic SMT Pick And Place Machine |
|
Machine Style |
Single Gantry with 4 Heads |
|
Max mounting capability |
10000PCS/H |
|
Placement Rate |
4000CPH |
|
External Dimension |
L 680×W 870×H 460mm |
|
Placement Area |
315*365mm(without Internal Rails) |
| 290*1500mm(with Internal Rails) | |
|
Max applicable PCB |
290mm*1200mm |
|
Feeders |
48pcs |
|
Average working power |
220V/160W |
|
Net Weight |
80KG |
|
Component Range |
Smallest Size: 0201 |
|
Biggest Size: TQFP240 |
|
|
Max Height: 5mm |
Details
Provide one-stop SMT assembly production line
Also Called SMT assembly line
SMT is the new technology to produce the circuit. Many years ago, People produce circuit use wires, so electronic product is big and hard to use and take with. So the circuit develops direction becomes smaller, then People invented the PCB, it can put the circuit on a small PCB, and then the components invented to out the resistors, capacitors on the PCB. All technology rated in this process is SMT.
Traditional electronic components compressed into a volume of only a few tenths of the device directly to the surface assembly components paste, printed on the printed circuit board surface location of the assembly technology.
Compared with the traditional process, SMT has high density, high reliability, low cost, miniaturization, sound field automation, and other five characteristics.
About us
factory
Quick Facts about NeoDen
① Established in 2010, 200+ employees, 8000+ Sq.m. factory.
② NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040.
③ Successful 10000+ customers across the globe.
④ 30+ Global Agents covered in Asia, Europe, America, Oceania and Africa.
⑤ R&D Center: 3 R&D departments with 25+ professional R&D engineers.
⑥ Listed with CE and got 50+ patents.
30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours..
