DIY smd pick and place

Diy Smd Pick And Place

Detailed Images

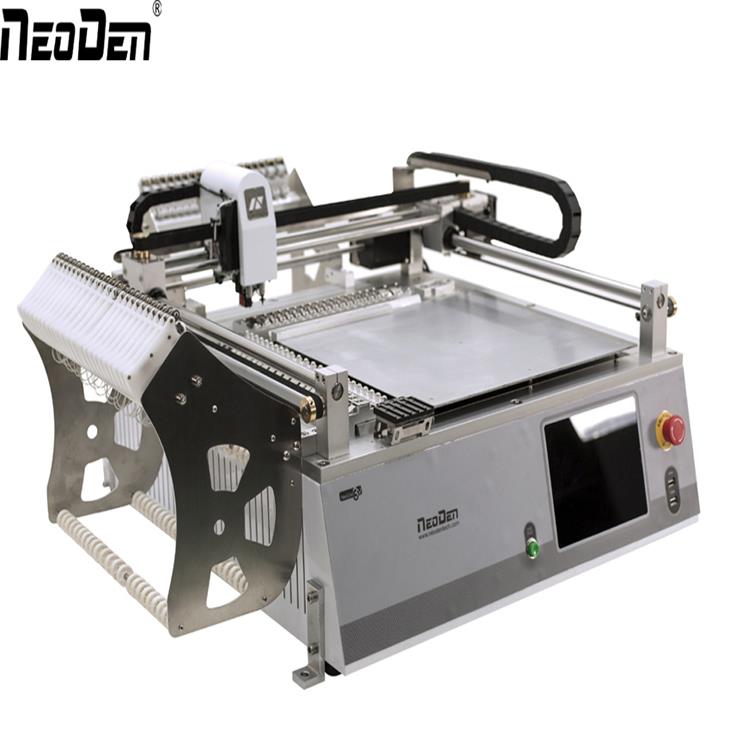

1. Full vision 2 heads system could satisfy the demand of wide range components and high accuracy.

2. Patented electromagnetic peel box,you don't need to get rid of the wasted nylon film manually, which saves you more time and effort.

3. Vibration feederthat can support to mount tube packaged components;

4. Flexible PCB positioningfunction by using PCB support bars and pins, wherever you want to put the PCB and whatever the shape of your PCB is, all can be handled well.;

5. Integrated Controller contributes to more stable performance and easier to do maintenance.

Program

A. Generate coordinate file from PCB design software (AD, Eagle, KiCad,Upverter, etc)

1. Take the software Altium Designer 6.9as an example, from which we can generate a csv. file.

2. Edit the generated coordinates file to make sure the machine could read.

Copy the file into a flash drive, then import it into NeoDen3V.This whole process only takes 5 minutes.

B.Manual programming

You can easily programa working file with the assistance of vision system

Warranty

The complete machine has a warranty period of One year from the time of purchase and lifelong service support.We provide online Q/A and troubleshooting support and technical advice service.

Thank you for your support on NeoDen Tech's machines.

Model	SMT Production Line NeoDen3V-Advanced
Machine style	Single gantry with 2 heads
Alignment	Stage Vision
Placement Rate	Vision on				3,500CPH
	Vision off				5,000CPH
Feeder Capacity	Tape feeder:44(all 8mm)
	Vibration feeder:5
	Tray feeder:10
Component Range	Smallest Size			0402(01005 inch)
	Largest Size			TQFP100 (Lead Pitch 0.5mm)
	Max Height			5mm
Rotation	±180°
Placement Accuracy	±0.02mm
Board Dimension(mm)	Maximum		320 x 390mm
Operation System	WindowsXP-NOVA
Electricity Supply	110V/220V
Power	160~200W
External Dimensions(mm)	Machine size	820(L)x680(W)x410(H)
Net Weight	55kgs
Numbers of Pumps	3
