Desk Solder Paste Printer
Desk solder paste printer
Features
1. Straight damping shaft, ensure the stencil fixed frame can be fastened at random angles, to improve convenience while operating.
2. L supports and pins to fix PCB, applicable for multiple types PCBs’fixation and printing, more flexible and convenient.
3. The mechanical fixation frame for quick installation and replacement of frameless stencils, ensure high-efficiency but low-cost.
4. Support for single-sided as well as double-sided PCB.
Specification
Product name | Desk solder paste printer NeoDen FP2636 (support frameless stencil) | PCB Thickness | 0- 0.8" - 0-20mm |
Max PCB Size | 11"× 15" - 280×380mm | Platform Height | 7.5" - 190mm |
Min PCB Size | 0.4"× 0.2" - 10×5mm | Repeatability | ±0.01mm |
Screen Stencil Size | 10"× 14" - 260×360mm | Max Rotation Angle | ±15° |
Printing Speed | Labor control | Positioning Mode | Outside/Reference Hole |
Fine Adjustment Range | Z-axis ±15mm X-axis ±15mm Y-axis ±15mm | Net Weight | 12KG |
Positioning Pin Size | ⌀1mm/⌀1.5mm/⌀2.0mm/⌀2.5mm/⌀3mm | Gross Weight | 14KG |
Dimensions | 660×470×245mm |
Details
 |  |
 |  |
Our Service
1. Provide video tutorial after purchasing the product.
2. 24-hour online support.
3. Professional after-sales technical team.
4. Free broken parts (Within 1 Year warranty).
About Us

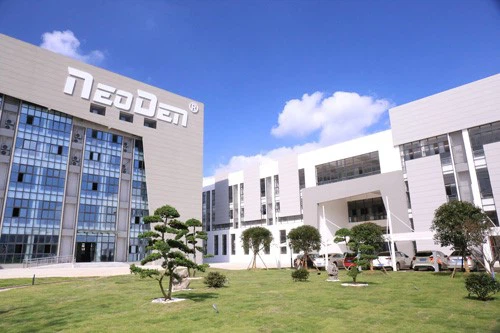

Factory
Certification
Exhibition
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist on everywhere.
