CNC Pick and Place Machine SMT Equipment Mass Production NeoDen K1830
Introduction
NeoDen K1830 is the latest model, it features 8 heads, 66 feeder slots, max speed 16000 CPH, which is a great choice for batch production.
Specification
| Model | NeoDen K1830 | Smallest Component Size | 0201 (Electric Feeder Available) |
Nozzle Qty | 8 | IC Packages | QFP, SSOP, QFN, BGA |
Reel Tape Feeder Qty(Max) | 66 (Electric / Pneumatic) | Placement accuracy | 0.01mm |
IC Tray Feeder Qty | 10 (In Succession) | Max Component Height | 18mm |
Max PCB size | 540*300mm(In Single Step) | Max Placement Speed | 16,000CPH |
Component Recognition | High-Resolution Flying Vision Camera Syste | PCB Transfer Direction | Left→Right |
PCB Fiducial Recognition | High Precision Mark Camera | Air Supply | >0.6MPa |
PCB Loading | Synchronized 3 Stages Internal Conveyor | Power | 500W |
Voltage | 220V/50HZ & 110V/60HZ | Machine Dimensions | 1288×1062×1291mm(Without Tri-color lamp) |
Net Weight | 280kgs | Packing Dimensions | 1420×1220×1665mm |
Gross Weight | 360kgs |
Features
1. 8 woking heads.
8. PCB location can be calibrated automatically and promptly.

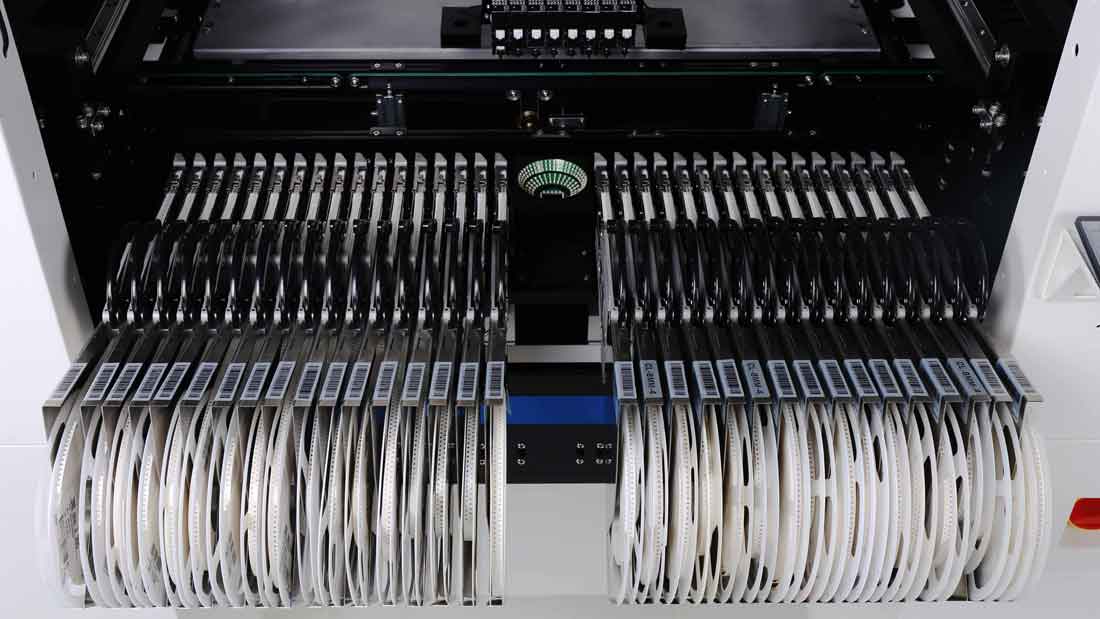

Details
FAQ
Q1: How is the training?
A: After buying our machines, your engineers can go to our company or it is so easy to operate the machine according the tutorial videos and user manual, the user manual will come with the machine together, what's more, our after-sell service persons are standby to provide support.
Q2: Is it hard to use these machines?
A: No, not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
Q3: English version for these machines?
A: Yes.
Q4: Suit to which kind company?
A: For medium and mass production factory.
About Us
Zhejiang NeoDen Technology Co., LTD., founded in 2010, is a professional manufacturer specialized in SMT pick and place machine, reflow oven, stencil printing machine, SMT production line and other SMT Products. We have our own R & D team and own factory, taking advantage of our own rich experienced R&D, well trained production, won great reputation from the world wide customers.
We believe that great people and partners make NeoDen a great company and that our commitment to Innovation, Diversity and Sustainability ensures that SMT automation is accessible to every hobbyist on everywhere.
Warranty
The complete machine has a warranty period of 2 years(Feeder-1 year) from the time of purchase and lifelong service.
Thank you very much for your support on Neoden Tech's machines.
Zhejiang NeoDen Technology Co., Ltd
www.neodentech.com
