Manual SMT Chip Mounter
Description

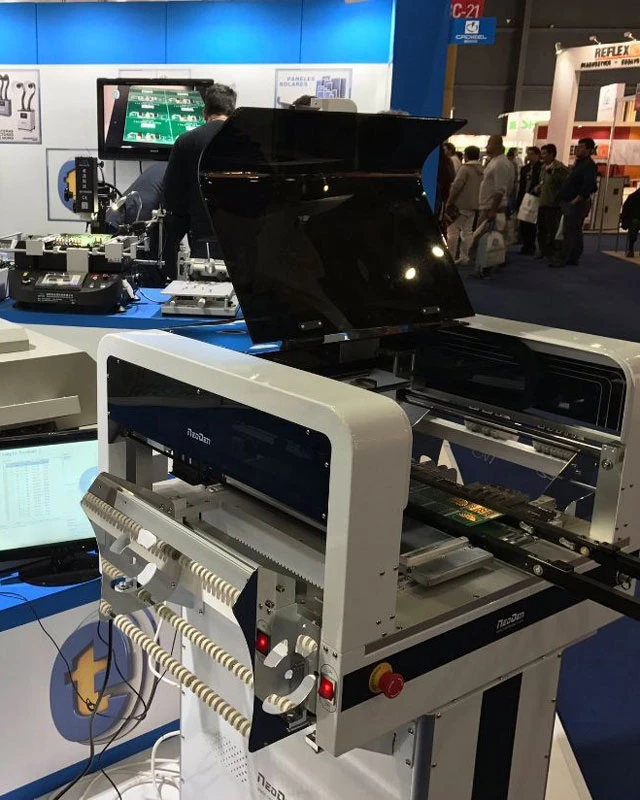

NeoDen4 is a Manual SMT Chip Mounter which could support to mount 0201, BGA, QFN and other fine pitch ICs. With its auto rails, NeoDen4 is applicable for 0.8m/1.2m/1.5m LED strip.
Some reviews and feedback from customer speak louder than what we say.
Specification
Model | NeoDen4 | Feeder Capacity | Tape feeder: 48 (all 8mm) |
Machine style | Single gantry with 4 heads | Vibration feeder: 5 | |
Alignment | Stage Vision | Tray feeder: 5 | |
Placement Rate | Vision on: 5,000CPH | Component Range | Smallest Size: 0201 |
Vision off: 10,000CPH (Optimum) | Largest Size: 32x32mm (Lead Pitch 0.5mm) | ||
Max Height | 5mm | Main Control | GUI |
Rotation | ±180° | Electricity Supply | 110V/220V |
Placement Accuracy | ±0.02mm | Power | 180W |
X-Y Repeatability | ±0.02mm | External Dimensions | Machine size: 870x680x480mm |
Board Dimension (Maximum) | 310 x 1500mm | Packing size: 940x740x600mm | |
Main Control | 140 x1500mm (with 1 waffle Tray) | Weight | Net Weight: 60kgs |
Gross weight: 80kgs |
Our Services
1. Good knowledge on different market can meet special requirements.

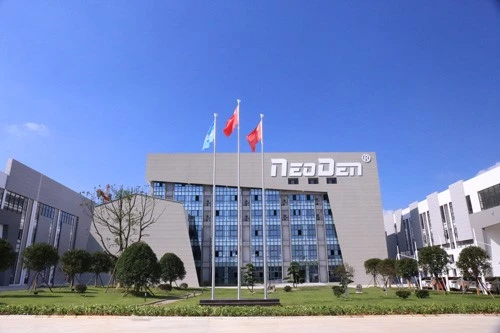

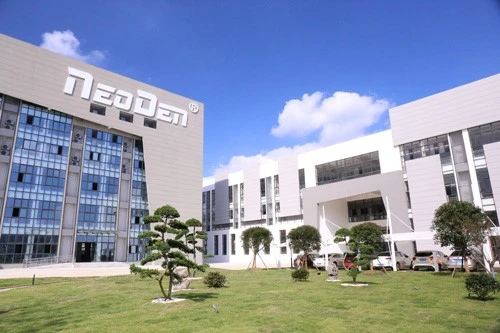

2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
About Us
Q&A
Q1: What's the warranty of NeoDen4?
A: NeoDen provides 2 years warranties from the time of purchase and lifelong servicematch support as well as a long-term factory price supply.
NeoDen will provide online Q/A and troubleshooting support and technical advmatchice service.
Q2: Do you have machine quality and other certificates?
A: NeoDen4 has owned TUV NORD CE certificate.
Our machine NeoDen4 has passed the EMC and MD test.
Q3: I am new to SMT, how long do I need to learn the machine?
A: Most of our customers are newbies in SMT, our machines are easy to learn and operate.
With the help of user manual and tutorial videos, you can take around hours to 2 days to know how to run a board.
Besides, if there is anything unclear, our engineer will try best to support.
Q4: What if any parts broken on the machine after several years?
A: If the machine is still in warranty, we can help to diagnose the issue first and help to arrange new parts to you without charge.
If the machine is beyond warranty, the cost of spare parts will be on your side.
Q5: Can this machine handle double sided boards?
A: Yes, the NeoDen4 could handle double sided boards either without rails or with rails version.
