NeoDen T8 Reflow Soldering Machine
■ Conveyor Max Speed: 90-1000mm/min
■ Maximum Height: 55mm
■ Machine Size:2100*700*700mm
Send Inquiry
Product Details ofNeoDen T8 Reflow Soldering Machine
Feature
1. Using AC motor to drive the conveyor belt, chain type transmission way. Speed adjustment is controlled by an automatic electronic analog switch, which sensitivity no more than 1 degree, control accuracy ±10mm/min.
2. Power supply support both single Phase (220V) and Three phases (380V).
3. Using Cooling fan to cool the welded PCB, or cool the heat parts inside machine to guarantee their good work, suit both lead or lead-free solder paste.
4. Using Signal lights to monitor the work condition of the machine-test temperature of the machine in normal and abnormal working state.
5. Support Press Emergency Stop Button if abnormal Shutdown situation.
Specification
| Product name | Reflow soldering machine |
Conveyor Width |
300mm |
| Model | NeoDen T8 |
Standard Max Height |
20mm |
|
Length*Width*Height |
2100*700*700mm |
Customized Max height |
55mm |
|
Peak Power |
12KW |
Max Speed of Conveyor |
90-1000mm |
|
Working Power |
5KW |
Packing Size |
220*80*65CM |
|
Input Voltage |
220/380V |
Gross Weight |
220KG |

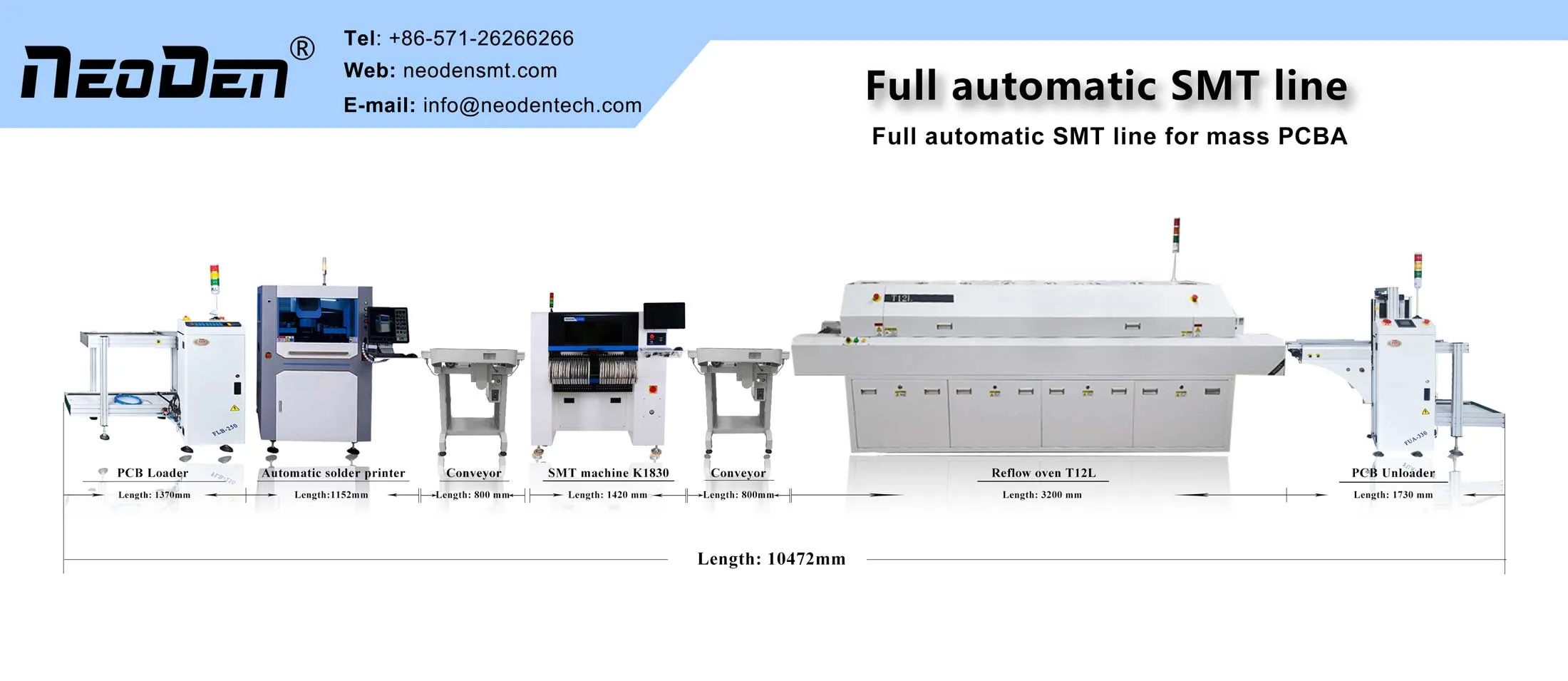

Provide one-stop SMT assembly production line
FAQ
Q1: How do I pay?
A: My friend, there are many ways.
T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
Q2: Is it hard to use these machines?
A: No, not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
Q3: Can we customize the machine?
A: Of course. All of our machines can be customized.
