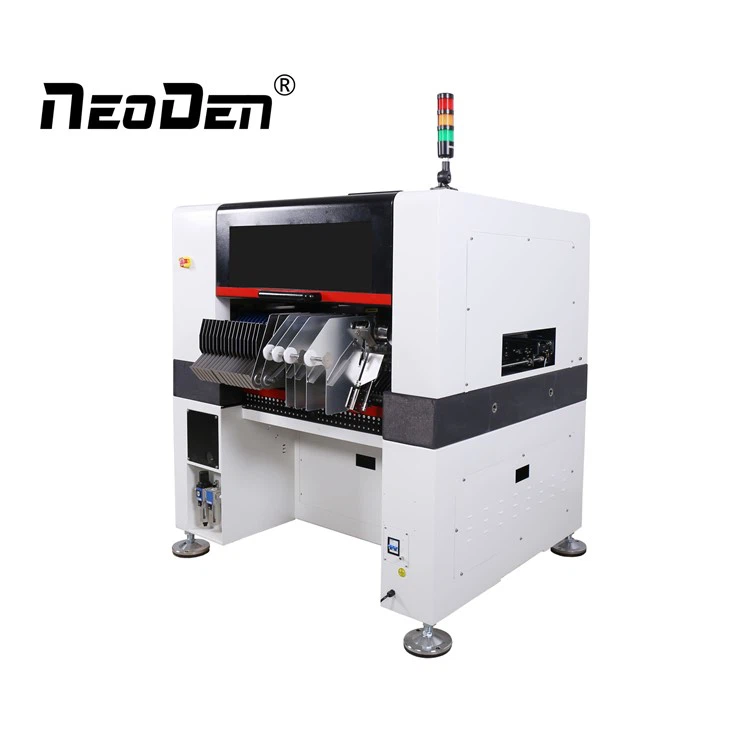

SMD Placer
sMD Placer
Feature
The flying vision alignment system enables faster PnP operations with greater accuracy.
Specification
| Product name | NeoDen10 SMD Placer | Placement accuracy | 0.01mm |
| Nozzle Q'ty | 8pcs | Max Placement Speed | 18,000CPH |
| Reel Tape Feeder Q'ty (Max | 66 (Electric / Pneumatic) | Average Mounting Speed | 13,000CPH |
| Max PCB size | 500*300mm (1500mm optinal) | Voltage | 220V/50HZ & 110V/60HZ |
| Operation System | Patented SMT Mouting Operation System V1.0 | PCB Transfer Direction | Left→Right |
| Net Weight | 1100Kgs | Machine Dimensions | L1300mm*W1100mm*H1375mm |
Detail
High speed Nozzle
Pneumatic Feeder
Vision system
Drive Motor
Computer
Warning light
• Vibration feeder holds five 8mm tubes and occupies nine 8mm feeder positions.
• Large reel stand.
• Rail extensions increase maximum PCB length to 1500mm.
If you need, please feel free to contact us for more information.
About us
Factory
Company Profile
We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.
Well-trained engineers will offer you any technical support.
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours.
Professional solutions can be offered within 24 hours both workday and holidays.
certification
exhibition
FAQ
Q1. This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
Q2. What we can do for you?
A: Total SMT Machines and Solution, professional Technical Support and Service.
Q3. Is it hard to use these machines?
A: No, not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
If you need, please don't be hesitate to send your inquiry.
