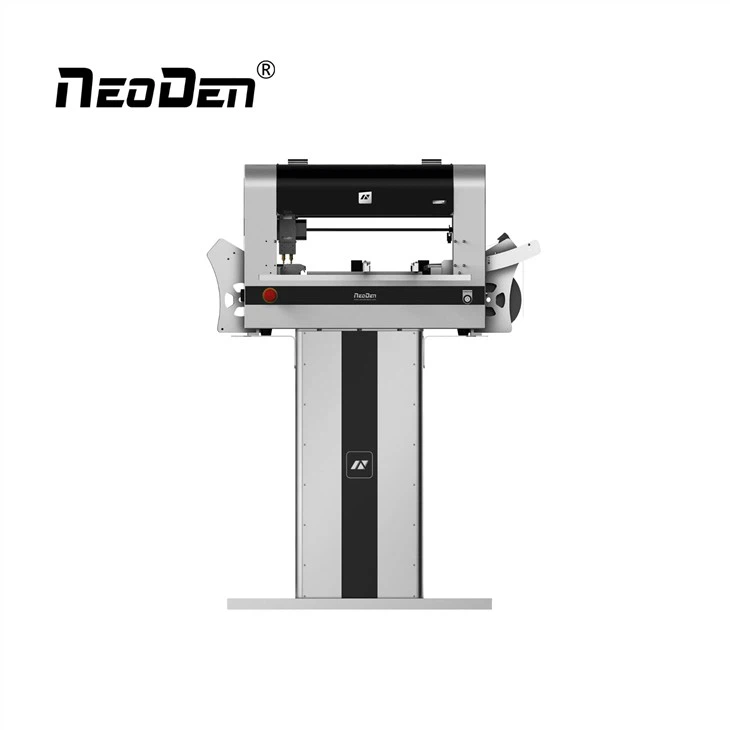

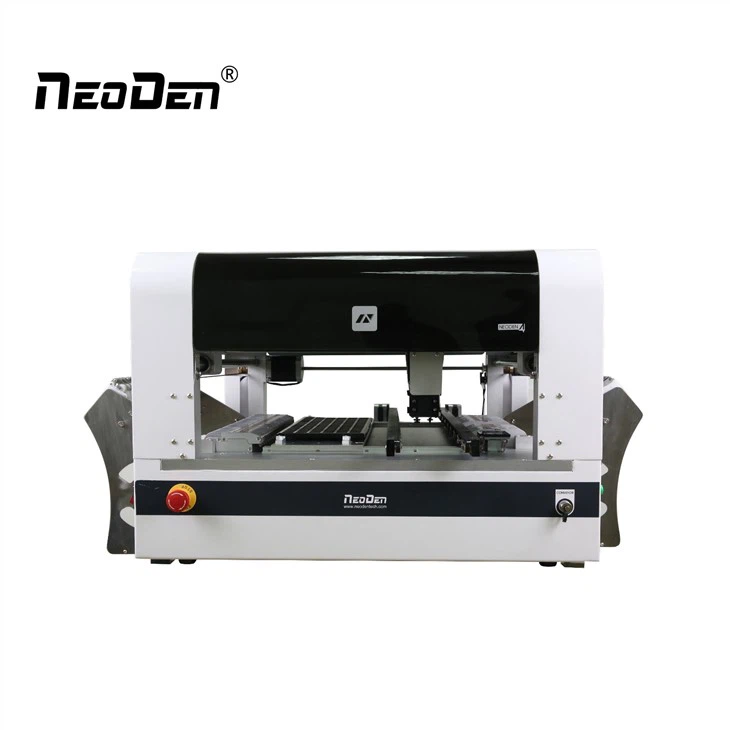

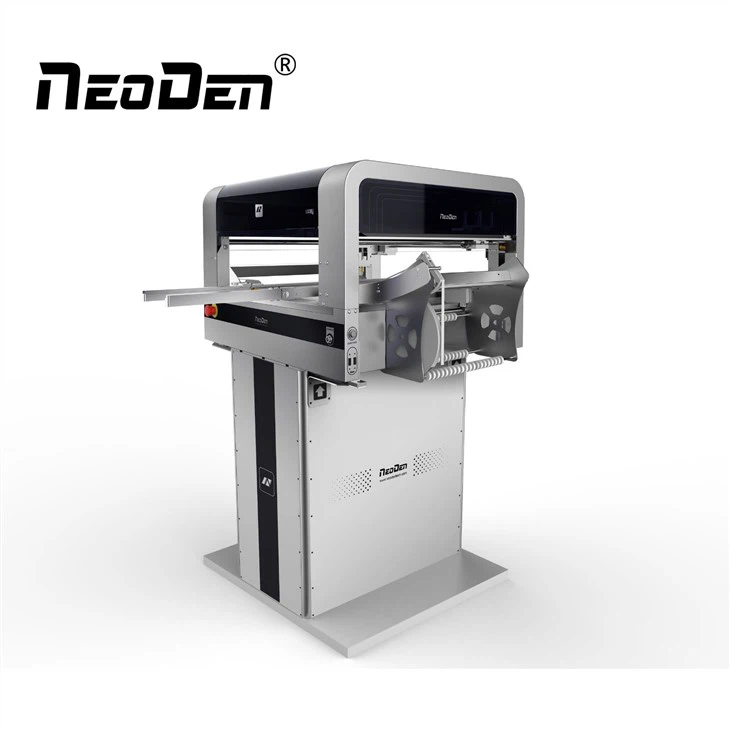

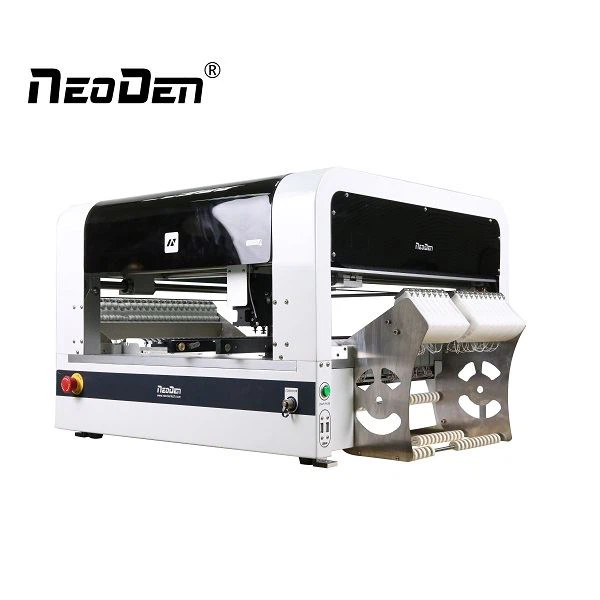

NeoDen4 SMD pick and place machine set
Specification
| Product name | NeoDen4 SMD pick and place machine set |
|
Machine Style |
Single Gantry with 4 Heads |
|
Placement Rate |
4000CPH |
|
External Dimension |
L 680*W 870*H 460mm |
|
Max applicable PCB |
290mm*1200mm |
|
Feeders |
48pcs |
|
Average working power |
220V/160W |
|
Component Range |
Smallest Size: 0201 |
|
Biggest Size: TQFP240 |
|
|
Max Height: 5mm |
Details

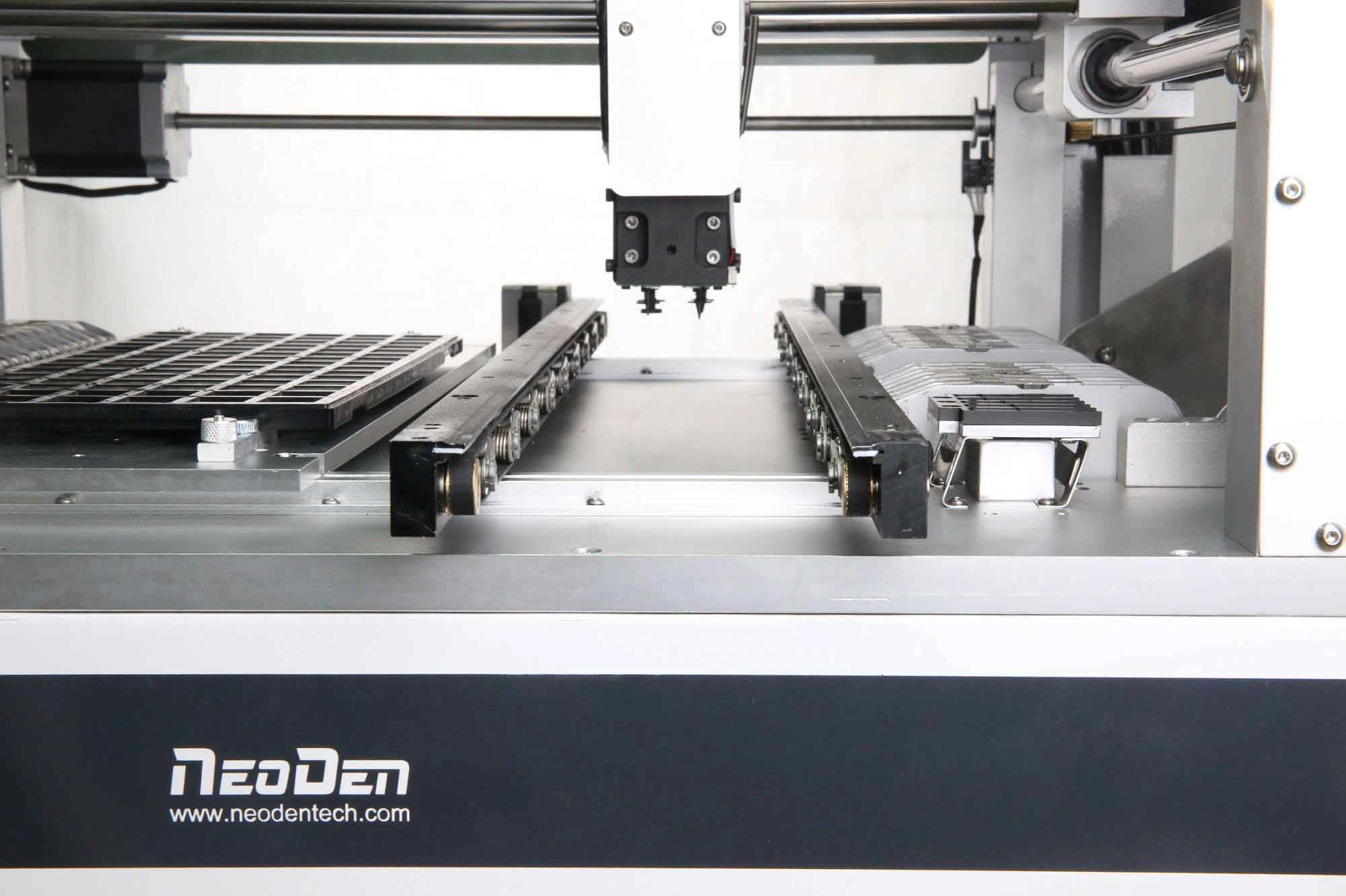

Independent on-line dual rails
Machines equipped with the auto-loading rail system can accommodate boards from to in width, and in length.
Even when the rail system is installed, any space left over on the table is still available for trays and short tapes.

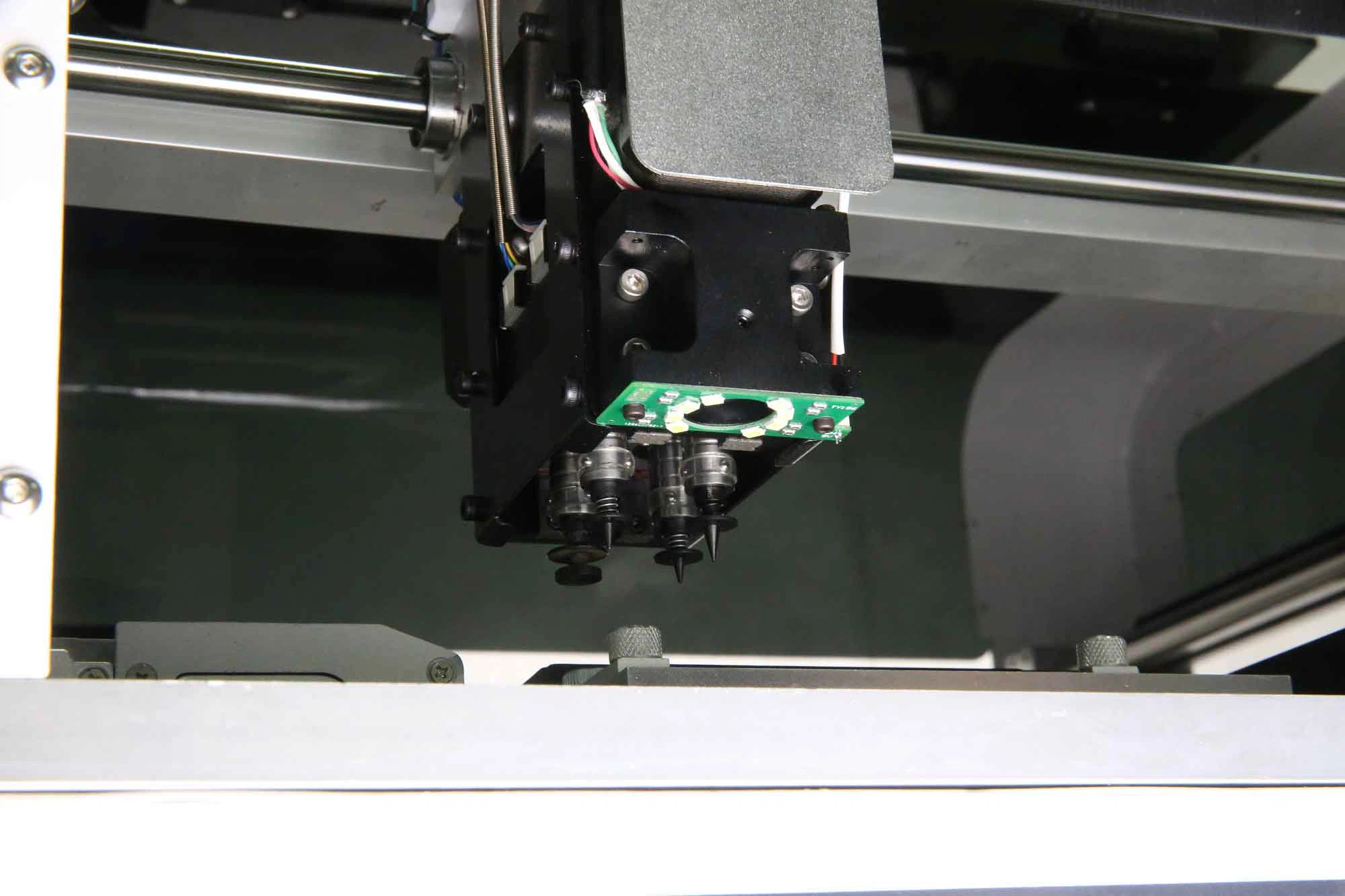

Four high precision nozzles
1. Any size nozzle can be installed in any of the four locations in the head, so a single machine can handle all of the necessary components without the need for nozzle changes.
2. The spring-loaded nozzles simply snap in and pull out of the head. Any nozzle can be installed in any of the four locations on the head.

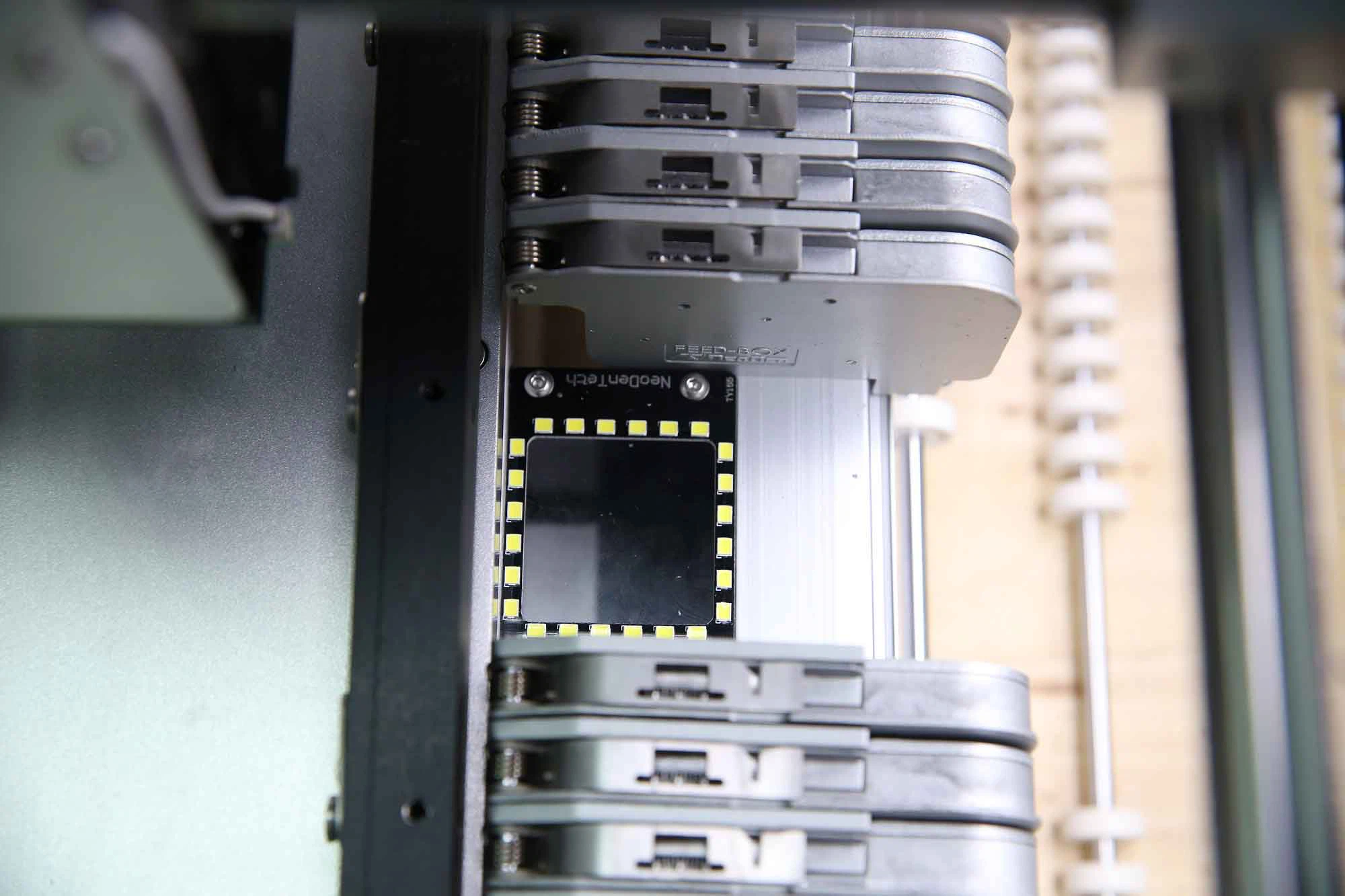

Vision system
The downward-looking camera:
On the head is used for precision location of feeders and PCB placement points.
The upward-looking camera:
located on the right side of the machine. When enabled, this camera first ensures that a component is attached to the proper nozzle.

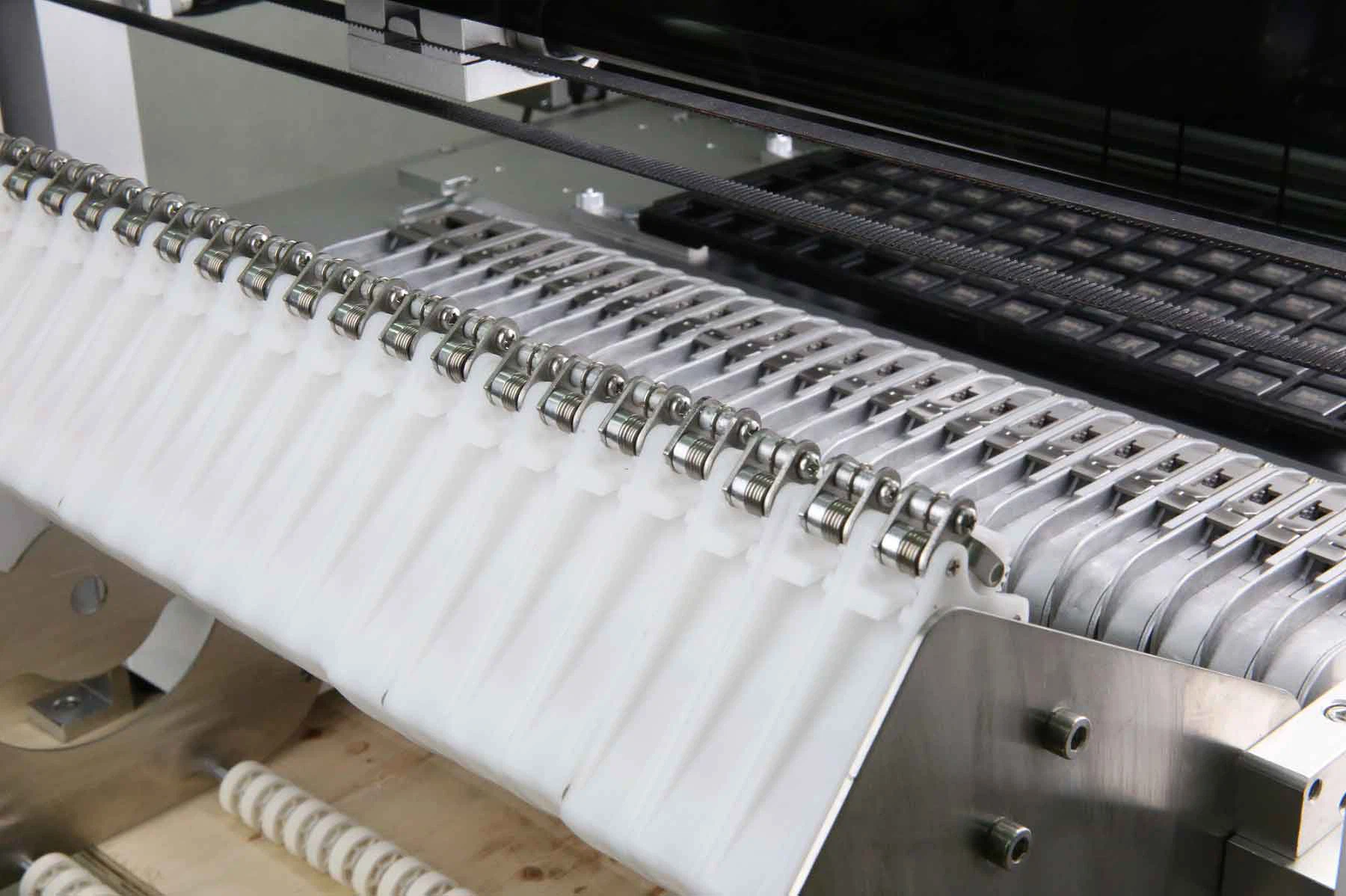

48 8mm tape-and-reel feeders
Electric tape-and-reel feeders, vibration feeders and virtual tray feeders are all supported.
Because of the flexibility of the architecture, and the need to work with affordable quantities of parts, short tapes can also be configured on the machine's bed.
Package
Caution
Transport
1. Take necessary security measures, to prevent upside down or fall when lifting ormoving.
Open
1. Please read all instruction in the wooden box.
2. Do not cut the packing tape by knife, to avoid scratch the machine.
3. Keep all packing material.
Working Environment
1. Do not use machine in a noisy environment, such as high frequency welding machine.
2. Do not use machine if the power supply voltage exceeds the rated voltage ± 10%.
3. Do not use machine and pull the plug when thunder to avoid any accident caused by damaged electrical component.
Provide one-stop SMT assembly production line
FAQ
Q1: Do you provide software updates?
A: Customers who buy our machine, we can offer free upgrades software for you.
Q2: Is it hard to use these machines?
A: No, not hard at all.
For our previous clients, at most 2 days is enough to learn to operate the machines.
Q3: Can we customize the machine?
A: Of course.
All of our machines can be customized.
