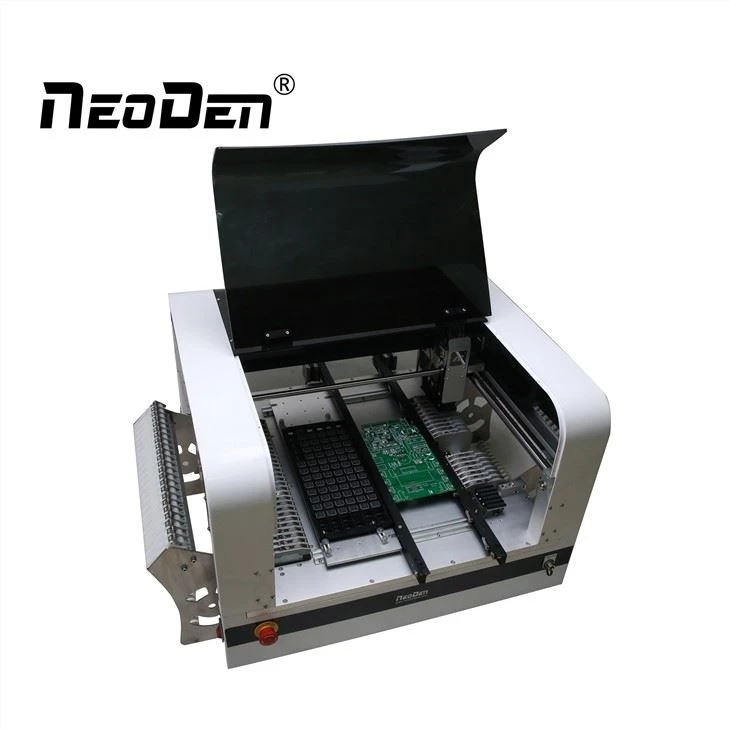

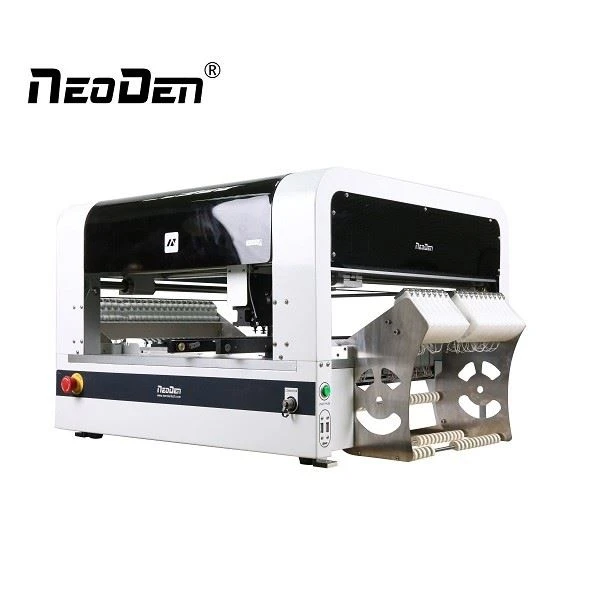

NeoDen Universal SMT Machine
NeoDen universal SMT machine Video
Feature
At the core, NeoDen universal SMT machine is a 4-axis Windows- controlled CNC with four separate vacuum nozzles, each connected to its own vacuum pump. The machine employs a single X-Y coordinate system covering the entire movement range of the head, which is 310x500mm. With resolution of .01mm (10µm) and repeatability of .02mm (20µm), any X-Y coordinate can be identified as the location of a feeder, the start of an array of components in a tray or short tape, a fiducial or the location at which a component is to be placed on a circuit board.
Specification
| Product name | NeoDen universal SMT machine |
Machine Style | Single Gantry with 4 Heads |
Placement Rate | 5000PCS /H (vision off), 4000PCS/H (vision on) |
External Dimension | L 680*W 870*H 480mm |
Applicable PCB Area | 350mm*400mm |
Feeders | 48pcs |
Average working power | 220V/160W |
Component Range | Smallest Size: 0201 |
Biggest Size: TQFP240 | |
Max Height: 5mm |
Details
Auto rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.
Four Nozzles
Any size nozzle can be installed
Designed in a suspended, fully symmetric
Mount at the same time with 360 degrees
Vision system
(up-looking and down-looking camera)
Equip with high speed industry CCD cameras
Highly improved accuracy of placement from 0201 to BGA
Electronic feeders
8mm tape-and-reel feeders
Adopts feeding error corrections technique
handle up to 5 separate tubes
Our Service
1. Good knowledge on different market can meet special requirements.
2. Real manufacturer with our own factory located in Huzhou, China.
3. Strong professional technical team ensure to produce the top quality products.
4. Special cost control system ensure to provide the most favorable price.
5. Rich experience on SMT area.
FP2636 Solder Printer
1. Adjustable rubber footing, ensure the flatness while operating.
2. The mechanical fixation frame for quick installation and replacement of frameless stencils, ensure high-efficiency but low-cost.
3. Support for single sided as well as double sided PCB.
Reflow Oven IN6
NeoDen IN6 provides effective reflow soldering for PCB manufacturers.
The design implements an aluminum alloy heating plate that increases the energy-efficiency of the system. The internal smoke filtering system improves the product’s performance and reduces harmful output, too.
The NeoDen IN6 is built with an aluminum alloy heating chamber.
Q1: How about the warranty?
A: We have 2 years warranty for NeoDen4, 1 year for all other model, life time after-sales support.
Q2: How do I pay?
A: My friend, there are many ways. T/T(we prefer this one), Western Union, PayPal, choose your favorite one.
Q3: How about the warranty?
A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
About us
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
With global presence in over 130 countries, the excellent performance, high accuracy and reliability of NeoDen PNP machines make them perfect for R&D, professional prototyping and small to medium batch production. We provide professional solution of one stop SMT equipment.
① Established in 2010, 200+ employees, 8000+ Sq.m. factory
② 30+ quality control and technical support engineers, 15+ senior international sales, timely customer responding within 8 hours, professional solutions providing within 24 hours.
If you need, please feel free to contact us!
