NeoDen SMT Mounting Machine
NeoDen SMT mounting machine Video

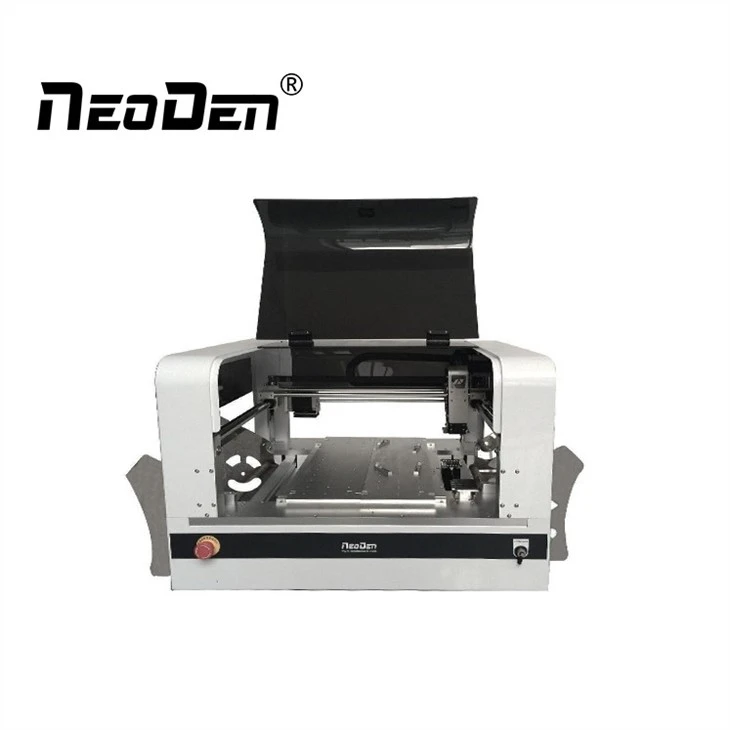

neoDen SMT Mounting machine
Feature
NeoDen SMT mounting machine installed with high speed industry cameras, enables cameras can recognize and align different component for four mounting heads.
With the help of upper-camera and down looking camera, they will display the picking process with high definition image, meet almost all of PCB's producing requirements.
NeoDen4 SMT mounting machine with rail support both seamless mounting via automatic rails and PCB self-positioning mounting, can be extended a vibrating plate to support bulk components, achieve best mounting without bother.
Specification
| Product name | NeoDen4 SMT Mounting Machine | Component Range | Smallest Size: 0201 |
| Machine Style | Single Gantry with 4 Heads | Biggest Size: TQFP240 | |
| Placement Rate | 5000PCS /H (vision off), 4000PCS/H (vision on) | Max Height: 5mm | |
| External Dimension | L 680*W 870*H 480mm | Average working power | 220V/160W |
| Feeders | 48pcs |
Details
Auto rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.
Four Nozzles
Any size nozzle can be installed
Designed in a suspended, fully symmetric
Mount at the same time with 360 degrees
Vision system
(up-looking and down-looking camera)
Equip with high speed industry CCD cameras
Highly improved accuracy of placement from 0201 to BGA
Electronic Feeders
8mm tape-and-reel feeders
Adopts feeding error corrections technique
handle up to 5 separate tubes
Package
Our Service
We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.
Well-trained engineers will offer you any technical support.
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours.
Professional solutions can be offered within 24 hours both workday and holidays.
provide one stop SMT assembly production line
FP2636 Solder Printer
1. T screw rod regulating handle, ensure adjustment accuracy and levelness of PCB fixed plane, minimum lead pitch achieved 1mm.
2. Adjustable rubber footing, ensure the flatness while operating.
Reflow Oven IN6
Full convection, excellent soldering performance.
Heat insulation protection design, the casing temperature can be controlled within 40℃.
Household power supply, convenient and practical.
Japan NSK hot-air motor bearings and Swiss heating wire, durable and stable.
FAQ
Q1: This is the first time I use this kind of machine, is it easy to operate?
A: We have English user manual and guide video to teach you how to use the machine.
If still have question, pls contact us by email / skype / whatapp / phone / trademanager online service.
Q2: Are you a trade company or a manufacturer?
A: We are an professional manufacturer specialized in SMT Machine, Pick and Place Machine, Reflow Oven, Screen Printer, SMT Production Line and other SMT Products.
Q3: MOQ?
A: 1 set machine, mixed order is also welcomed.
About us
factory
Zhejiang NeoDen Technology Co., Ltd. has been manufacturing and exporting various small pick and place machines since 2010. Taking advantage of our own rich experienced R&D, well trained production, NeoDen wins great reputation from the world wide customers.
① NeoDen products: Smart series PNP machine, NeoDen K1830, NeoDen4, NeoDen3V, NeoDen7, NeoDen6, TM220A, TM240A, TM245P, reflow oven IN6, IN12, Solder paste printer FP2636, PM3040
② Listed with CE and got 50+ patents
certification
exhibition
Other Production Line for Your Choice
If you need, please feel free to contact us!
