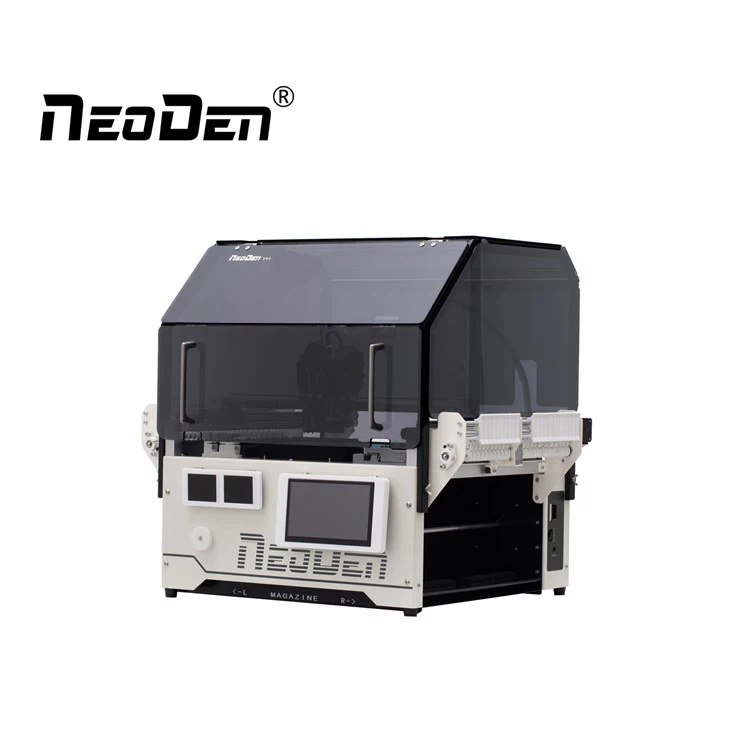

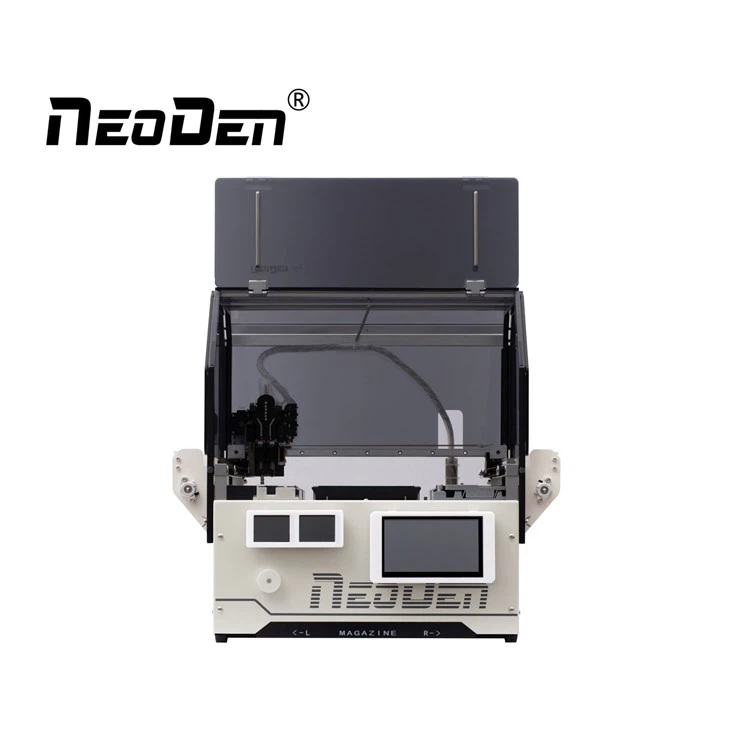

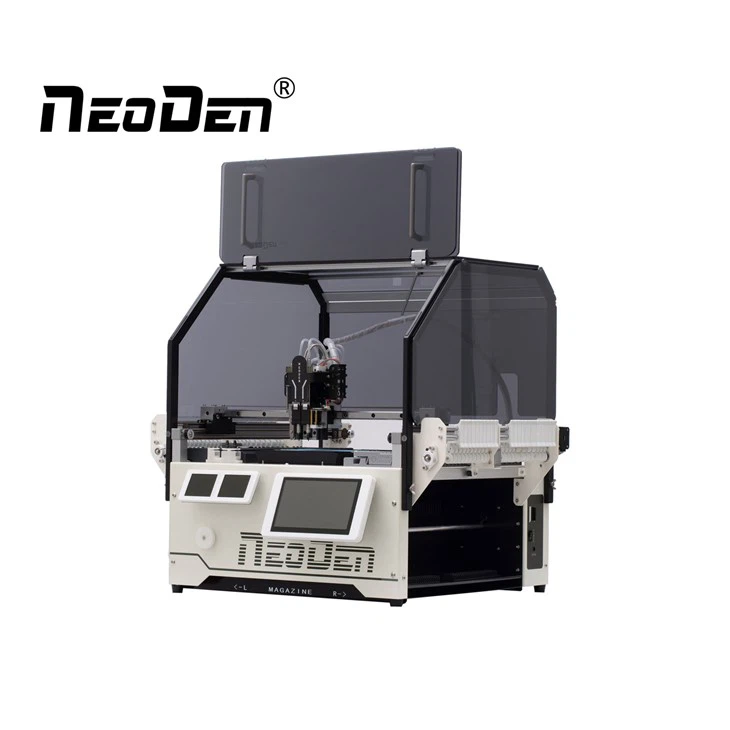

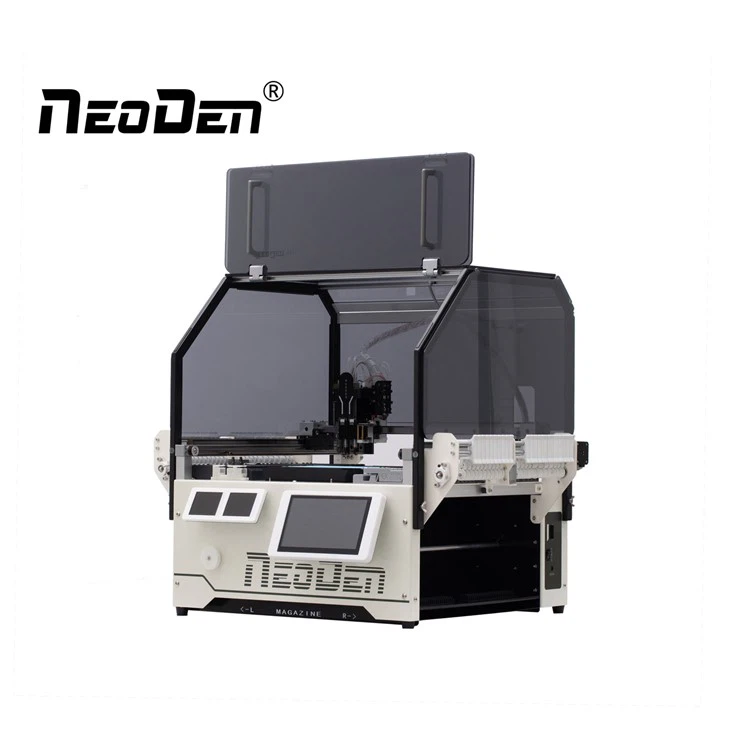

Manual SMD Pick and Place Machine
manual SMD pick and place machine
Specifications
| Product name | NeoDen YY1 pick and place machine | Nozzle Change Capacity | 3 Nozzles |
| Machine Style |
Single Gantry With 2 Heads |
Component Range | Smallest Size: 0201 |
|
Placement Rate |
Vision On: 3000CPH |
Largest Size: 18*18mm | |
| Vision Off: 4000CPH | Max Height: 12mm | ||
|
Feeder Capacity |
Tape Feeder: 52 (all 8mm) |
Rotation | ±180° |
|
Stick Feeder: 4 |
External Dimensions | Machine Size: 643(L)x530(W)x601(H)mm | |
|
Flexible Feeder: 28 |
Packing Size: 700(L)x580(W)x585(H) mm (wooden box) | ||
|
Bulk Feeder: 19 |
Features
1. Brand new patented peeling gadget
It's simple but functional, it's easy to install and flexible to remove.
Compared with the peelers of TM240A, it doesn't need to collect wasted film.
Compared with the peelers of 3V, it solve the issue of unstability and offset issue.
2. Patented needle module
This new needle assembly is specially designed based on the linear rail with high reliability and durability.
It is much more precise, sturdir and avoids being stuck by reels.
3. Dual vision system with built-in IC
Independent high-definition & high-speed dual vision recognition systems, as well as two cameras for real-time display the working status., the speed of processing components' photos becomes more efficient and accurate.

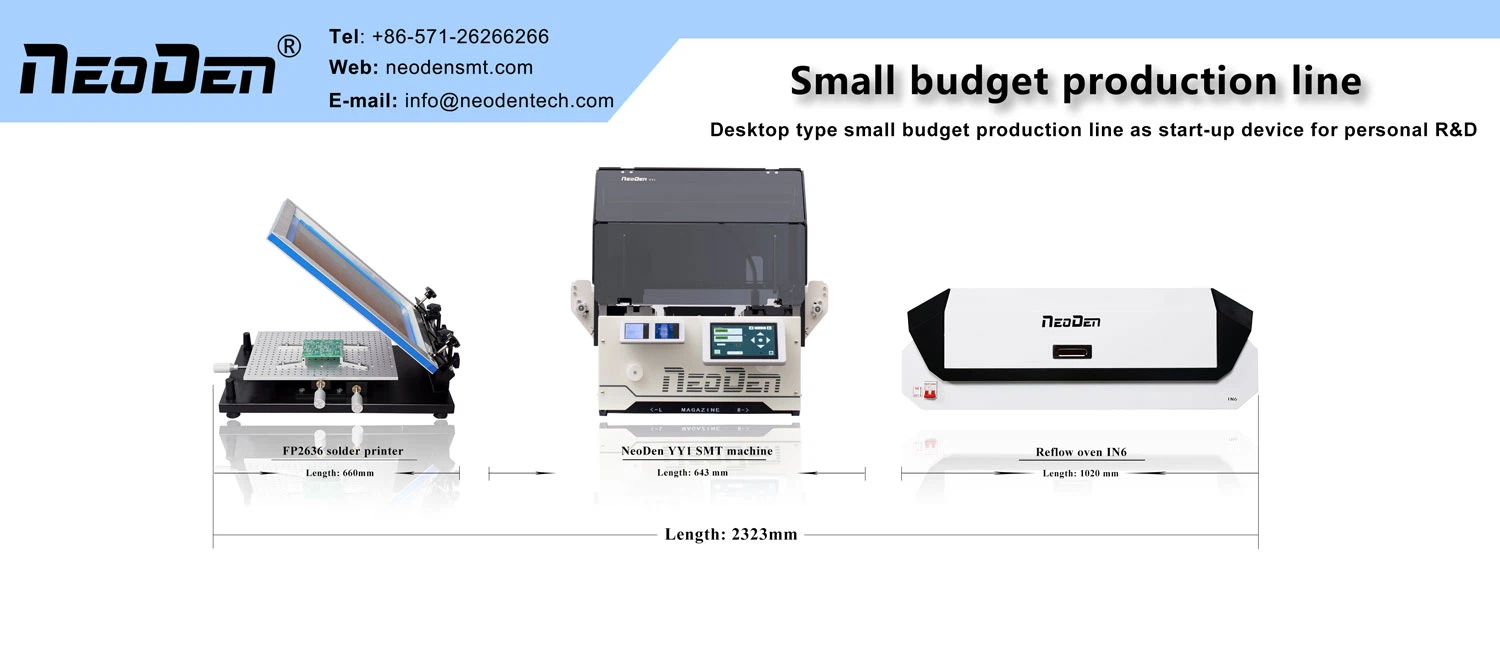

SMT production line
Surface-mount technology (SMT) is a method for producing electronic circuits in which the components are mounted or placed directly onto the surface of printed circuit boards (PCBs).
SMT surface mount technology production line includes:
solder printer - pick and place machine - soldering machine
About Us
factory
certification
exhibition
