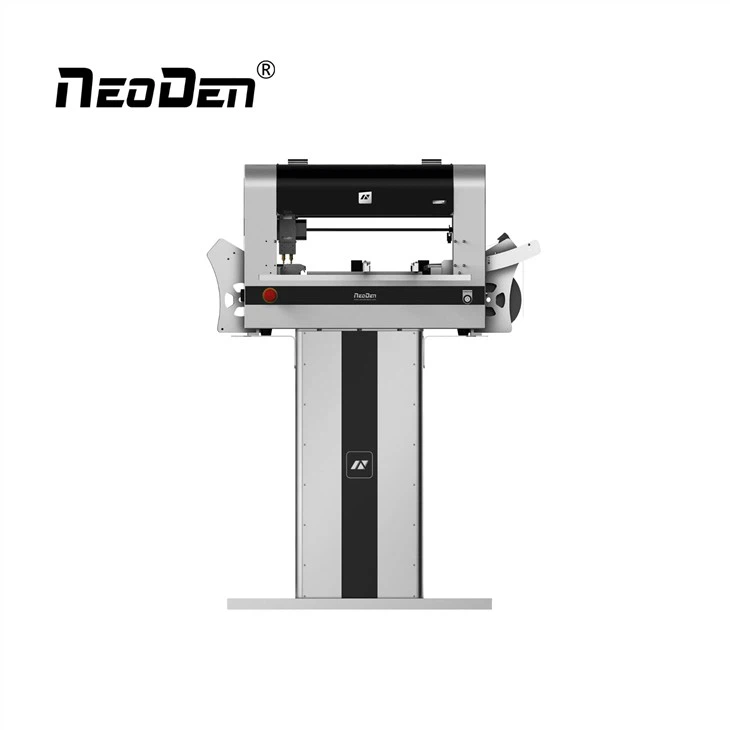

Machine Pick and Place

On-line dual rails

Machines equipped with the auto-loading rail system can accommodate boards from to in width, and  in length. Even when the rail system is installed, any space left over on the table is still available for  trays and short tapes.

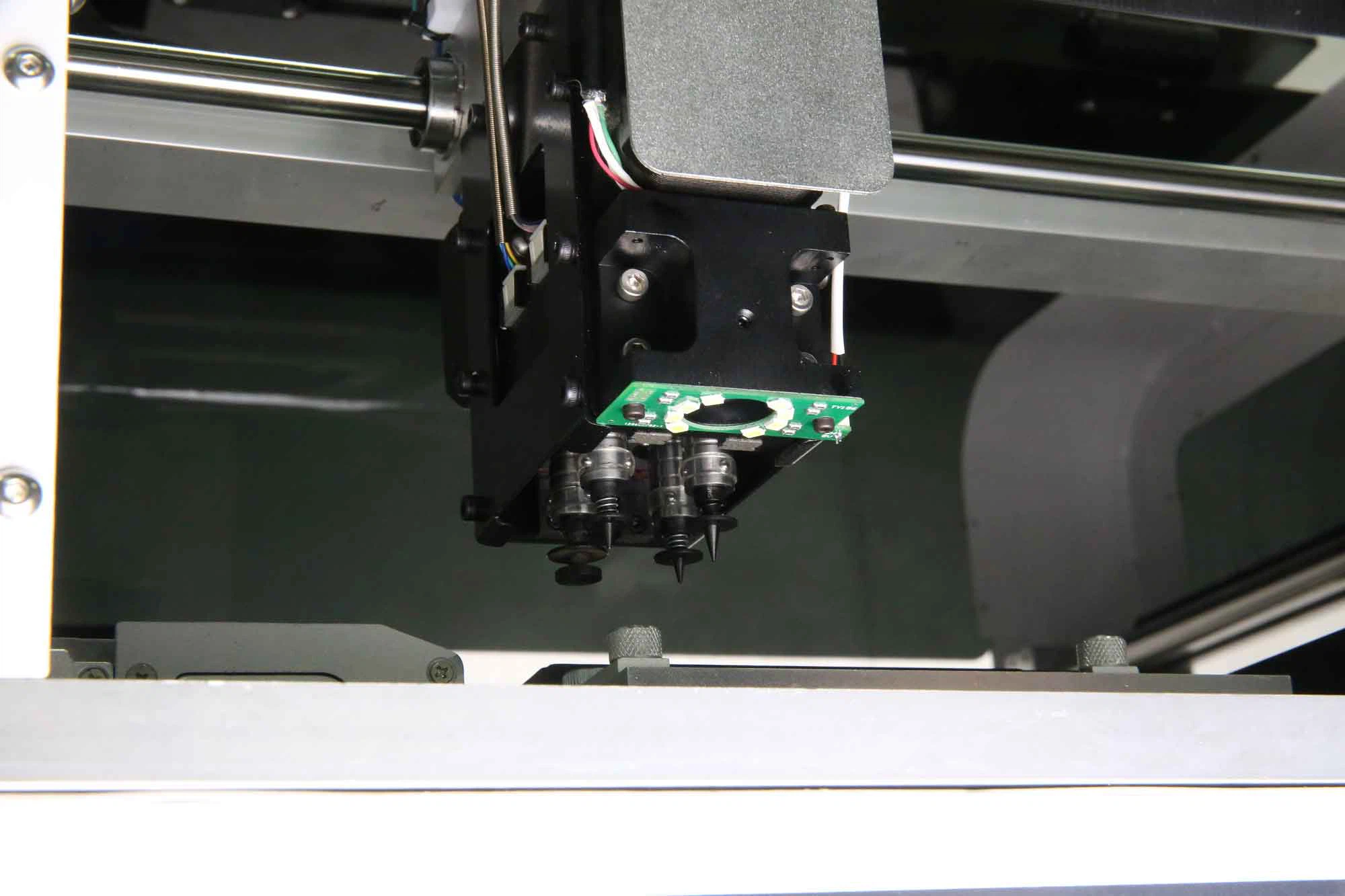

Four high precision nozzles

The mounting head is designed in a suspended, fully symmetric and high degree of coupling way, ensure it can mount components with higher space, more gentle and more efficient. Surprisedly, we design and equip with four high precision nozzles.

Vision system

Installed with high speed industry CCD cameras, and work with our patented image distortion processing algorithms, enable cameras can recognize and align different components of four nozzles. With the help of upper-camera and down looking camera, they will display the picking process with high definition image.

48 8mm tape-and-reel feeders

Our brand new patented electronic feeders adopts new technique-feeding error corrections, which smooths the feeding and picking. Meanwhile, Neoden 4 has increased the maximum feeders from 27 to 48.
