Dekstop Pick and Place Machine
NeoDen 3V Dekstop Pick and Place Machine Vdeo

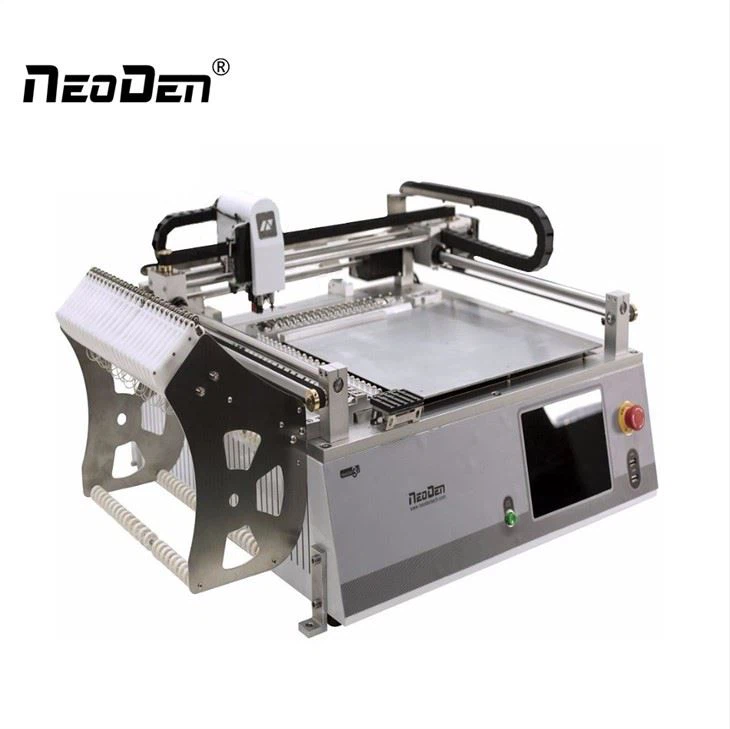

NeoDen 3V Dekstop Pick and Place Machine
Feature
|
Model |
NeoDen3V (Standard) |
NeoDen3V (Advanced) |
|

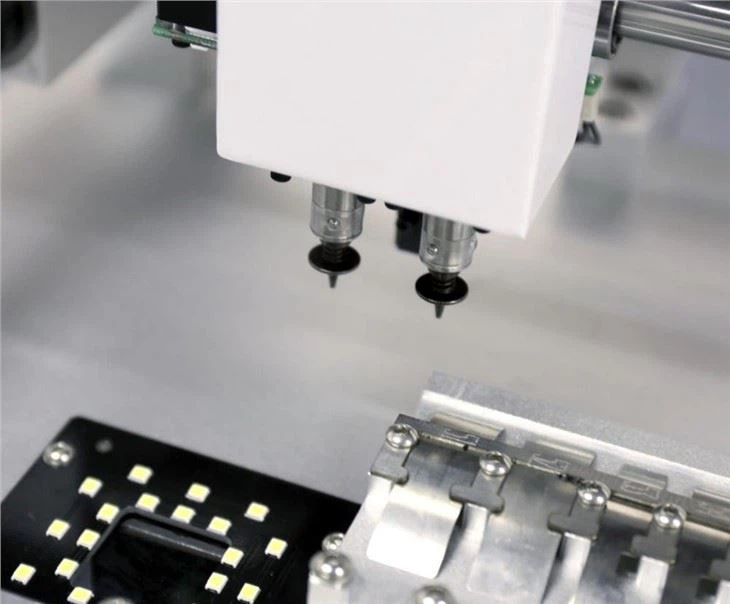

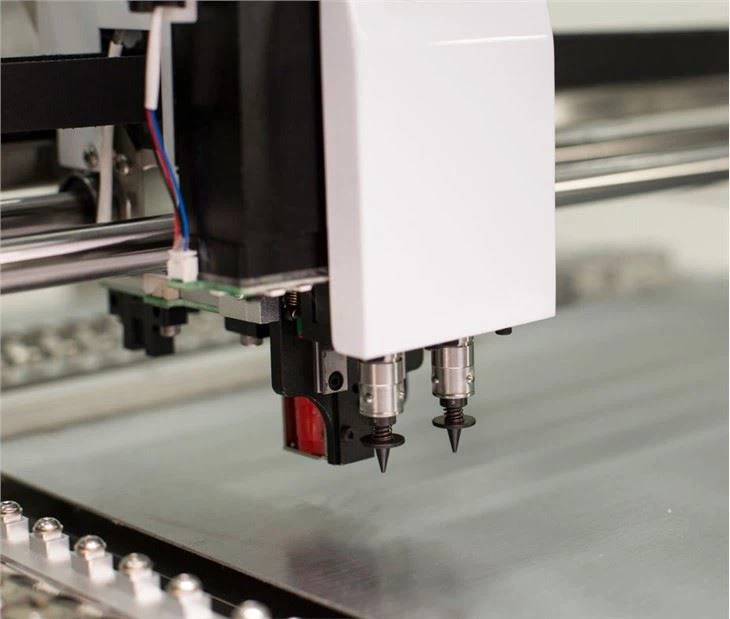

Number of heads |
2 |
2 |
|
Alignment |
Vision |
Vision |
|
Rotation |
±180° |
±180° |
|
Placement Rate |
5000CPH (without vision) 3500CPH (with vision) |
5000CPH (without vision) 3500CPH (with vision) |
|
Feeder Capacity |
Tape feeder: 24 (all 8mm) |
Tape feeder: 44 (all 8mm) |
|
Vibration feeder: 0~5 |
Vibration feeder: 0~5 |
|
|
Tray feeder: 5~10 (Customization supported) |
Tray feeder: 5~10 (Customization supported) |
|
|
Board Dimension |
Maximum: 320*420mm |
Maximum: 320*390mm |
|
Component Range |
Smallest components: 0402 |
Smallest components: 0402 |
|
Largest components: TQFP144 |
Largest components: TQFP144 | |
|
Max height: 5mm |
Max height: 5mm | |
|
Numbers Of Pumps |
3 |
3 |
|
Placement Accuracy |
±0.02mm |
±0.02mm |
|
Operate System |
Windows XP-NOVA |
Windows XP-NOVA |
|
Power |
160~200W |
160~200W |
|
Electricity Supply |
110V/220V |
110V/220V |
|
Machine Size |
820(L)*650(W)*410(H)mm |
820(L)*680(W)*410(H)mm |
|
Packing Size |
1001(L)*961(W)*568(H)mm |
1001(L)*961(W)*568(H)mm |
| N.W./G.W. |
55Kg/80Kg |
60kg/85Kg |
Our Service
We are in a good position not only to supply you high quality pnp machine, but also the excellent after sales service.
Well-trained engineers will offer you any technical support.
10 engineers powerful after-sales service team can respond customers queries and enquiries within 8 hours.
Professional solutions can be offered within 24 hours both workday and holidays.

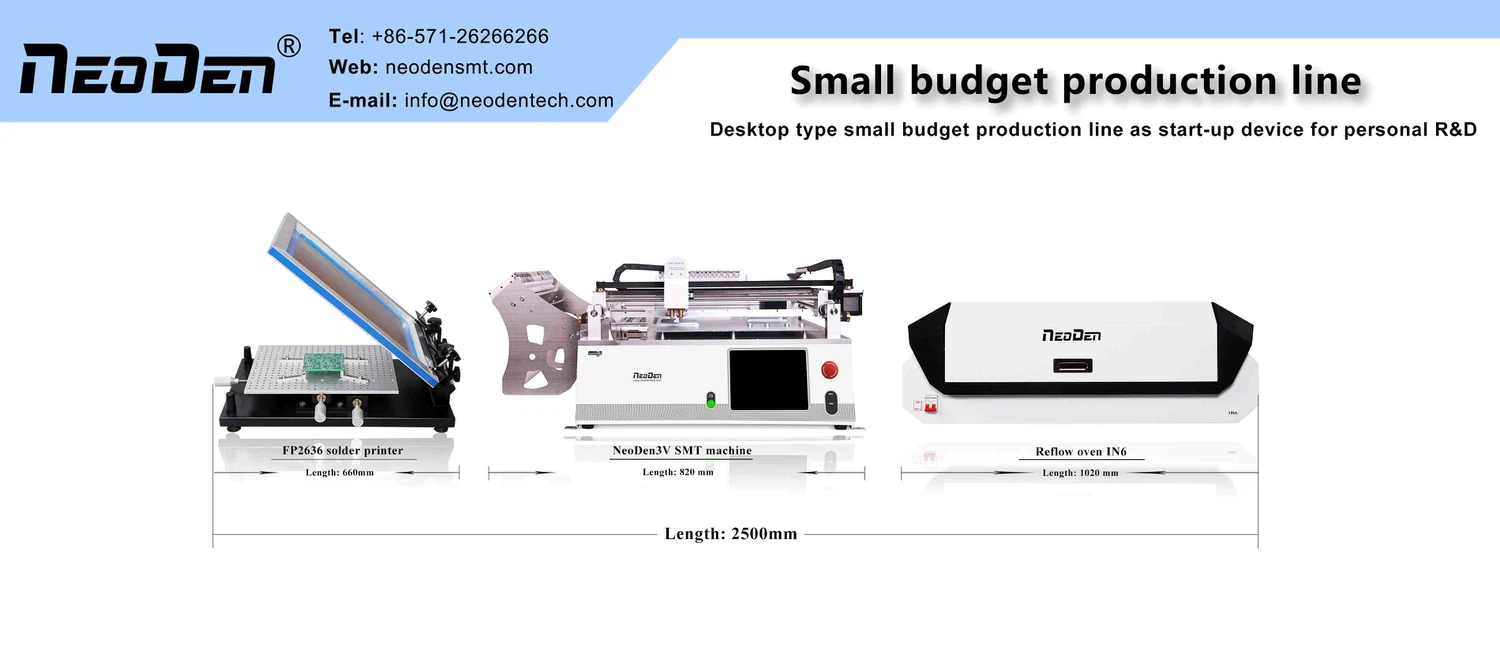

Provide one-stop SMT assembly production line
Related product
 |
 |
 |
| Stencil printer FP2636 | SMT pick and place machine NeoDen4 | Pick and place machine NeoDen K1830 |
Introduction
Stencil printer FP2636:
The mechanical fixation frame for quick installation and replacement of frameless stencils, ensure high-efficiency but low-cost.
Support for single sided as well as double sided PCB.
SMT pick and place machine NeoDen4:
Installed with high speed industry CCD cameras,and work with our patented image distortion processing algorithms, enable cameras can recognize and align different components of four nozzles. With the help of upper-camera and down looking camera, they will display the picking process with high definition image. Multiply efficiency while ensure accuracy.
And by combined their functions of above two parts precisely, our Neoden4 can easily mount high precision components in the market such as 0201, SOT-23, QFN, BGA which are difficult for most pnp machines. Meanwhile, because of our unique mechanical structure, Neoden 4 can easily handle odd-form components.
SMT pick and place machine NeoDen K1830:
8 Synchronized Nozzles which ensure a repeatable placement accuracy with high speed.
Machine runs on highly stable and secure Linux operating system.
About Us
factory
certification
Exhibition
FAQ
Q1: Do you provide software updates?
A: Customers who buy our machine, we can offer free upgrades software for you.
Q2: What's the way of shipping?
A: These are all heavy machines.
We suggest you use cargo ship.
But components for mending the machines, air transportation would be fine.
Q3: How about the warranty?
A: We support one year warranty.
We will help you in time.
All the spare parts will be provided free of charge for you within the warranty period.
