Automatic Stencil Printer
Specification
| Product name | Automatic stencil printer |
| Maximum board size（X x Y） | 450mm x 350mm |
| Minimum board size（X x Y） | 50mm x 50mm |
| PCB thickness | 0.4mm~6mm |
| Warpage | ≤1%Diagonal |
| Maximum board weight | 3Kg |
| Board margin gap | Configuration to 3mm |
| Maximum bottom gap | 20mm |
| Transfer height from the ground | 900±40mm |
| Transfer speed | 1500mm/s(Max) |
| Transfer orbit direction | L-R, R-L, L-L, R-R |
| Machine weight | Appro.1000Kg |
Feature
Standard Configuration
Accurate optical positioning system
Four way light source is adjustable, light intensity is adjustable, light is uniform, and image acquisition is more perfect;
Good identification (including uneven mark points), suitable for tinning, copper plating, Gold plating, tin spraying, FPC and other types of PCB with different colors.
Printing axis servo drive
The scraper Y axis adopts servo motor drive through screw drive,
to improve accuracy grade,operational stability and extend the service life,
to provide customers with a good printing control platform.
Intelligent squeegee system
Intelligent programmable setting, two independent direct motors driven squeegee,
built-in precise pressure control system.
Detection function on Stencil
By compensating the light source above the steel stencil, CCD is used to check the mesh in real time, so as to quickly detect and judge whether the mesh is blocked after cleaning, and carry out automatic cleaning, which is a supplement to the 2D detection of PCB.

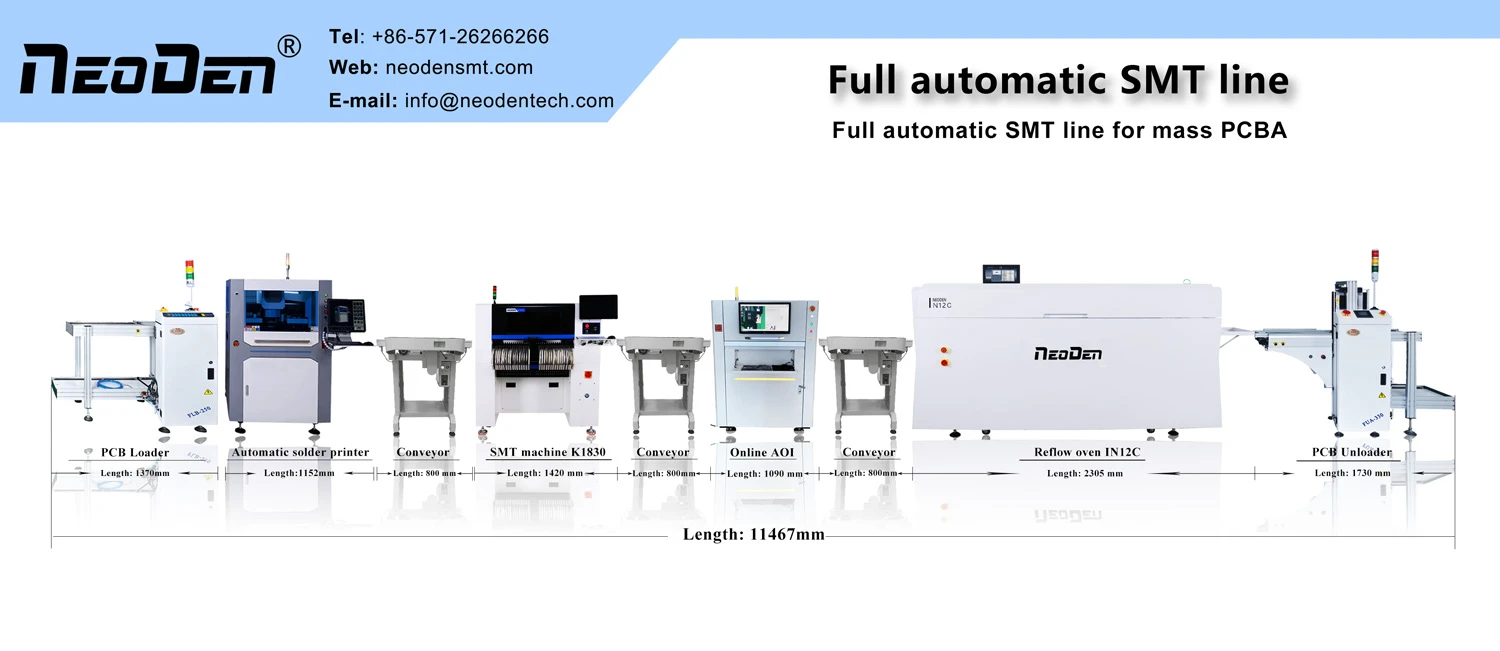

Related Products
|
|
|
FAQ
Q1: How can I buy machine from you?
A: (1) Consult us on line or by e-mail.
(2) Negotiate and confirm the final price, shipping, payment method and other terms.
(3) Send you the perfroma invoice and confirm your order.
(4) Make the payment according to the method put on proforma nvoice.
(5) We prepare your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
(6) Send your order via express or by air or by sea.
Q2: What products you sell?
A: Our company deal in the following products:
SMT equipment
SMT accessories: Feeders, Feeder parts
SMT nozzles, nozzle cleaning machine, nozzle filter
Q3: MOQ?
A: 1 set machine, mixed order is also welcomed.
