In modern electronics manufacturing, SMT has become the dominant method of printed circuit board assembly, offering higher productivity and better performance by mounting components directly to the surface of the PCB.
As electronic devices become smaller and components are packaged in increasingly tiny packages, ensuring the quality and accuracy of SMT placement becomes a key challenge. In this regard, SMT AOI machine plays an important role, and this article will delve into how AOI equipment works in SMT processing.
Basic Concept of SMT AOI machine
AOI is a type of automatic inspection equipment that uses optical technology to check the position, polarity, solder quality and other relevant features of electronic components on a PCB.
It uses a camera and a light source to capture and analyze images on the PCB in real time through image processing technology, and then compares them to standard or predetermined specifications to detect any unqualified components or solder quality issues.
AOI Working Principle
The working principle of AOI equipment can be simply summarized in the following steps:
1. Image Acquisition: AOI equipment uses cameras to capture images of different areas on the PCB, which can include component location, polarity, markings, solder joints, etc. The cameras are usually of high resolution and can be used for a variety of applications. The camera usually has a high resolution, able to capture the details of the tiny components.
2. Image Processing: The captured images are subjected to image processing algorithms that are used to analyze various features in the images. These algorithms can detect the position of the component, angle of rotation, offset, quality of solder joints etc.
3. Comparison and Analysis: The AOI equipment compares the data in the image to predetermined standards or specifications to determine if there are non-conforming components or soldering problems. Any out-of-specification problems are recorded and alarmed.
4. Feedback and Repair: If the AOI detects a problem, it usually triggers a follow-up action, such as an automatic shutdown, alerting the operator to perform a manual inspection or repair. This helps to minimize the generation of nonconforming products.
Application of AOI machine
AOI equipment is widely used in all stages of SMT processing, including:
1. Placement stage: In the component placement stage, AOI equipment can check the correct position, polarity and rotation angle of components to ensure that they are correctly attached to the PCB.
2. Soldering Stage: AOI equipment is also used in the soldering stage to check the quality of the solder joints, including the integrity of the solder, the amount of solder, and defects in the solder joints.
3. Final Inspection Stage: Finally, AOI equipment is often used in the final inspection stage to ensure the quality of the entire PCBA board, including the correct placement of components, polarity, solder quality, and the absence of other potential problems.
Advantages of AOI machine
AOI equipment has various advantages in SMT processing.
1. High Accuracy: AOI equipment is capable of detecting minute component and solder joint defects, providing high precision inspection.
2. High Efficiency: Automated inspection process is faster than manual inspection, which improves productivity.
3. Reduced Human Error: AOI equipment reduces the number of errors introduced by human operation and improves product quality.
4. Data recording: AOI equipment can record and store inspection data for quality control and quality improvement.
In modern electronics manufacturing, AOI equipment in SMT processing is a key tool in ensuring product quality and reliability. Through the use of high-precision image processing technology, it is able to detect and correct component position, polarity and soldering quality problems, improving the performance and stability of electronic products.
As technology continues to advance, AOI equipment will continue to play a key role in SMT processing to ensure high quality manufacturing of electronic products.

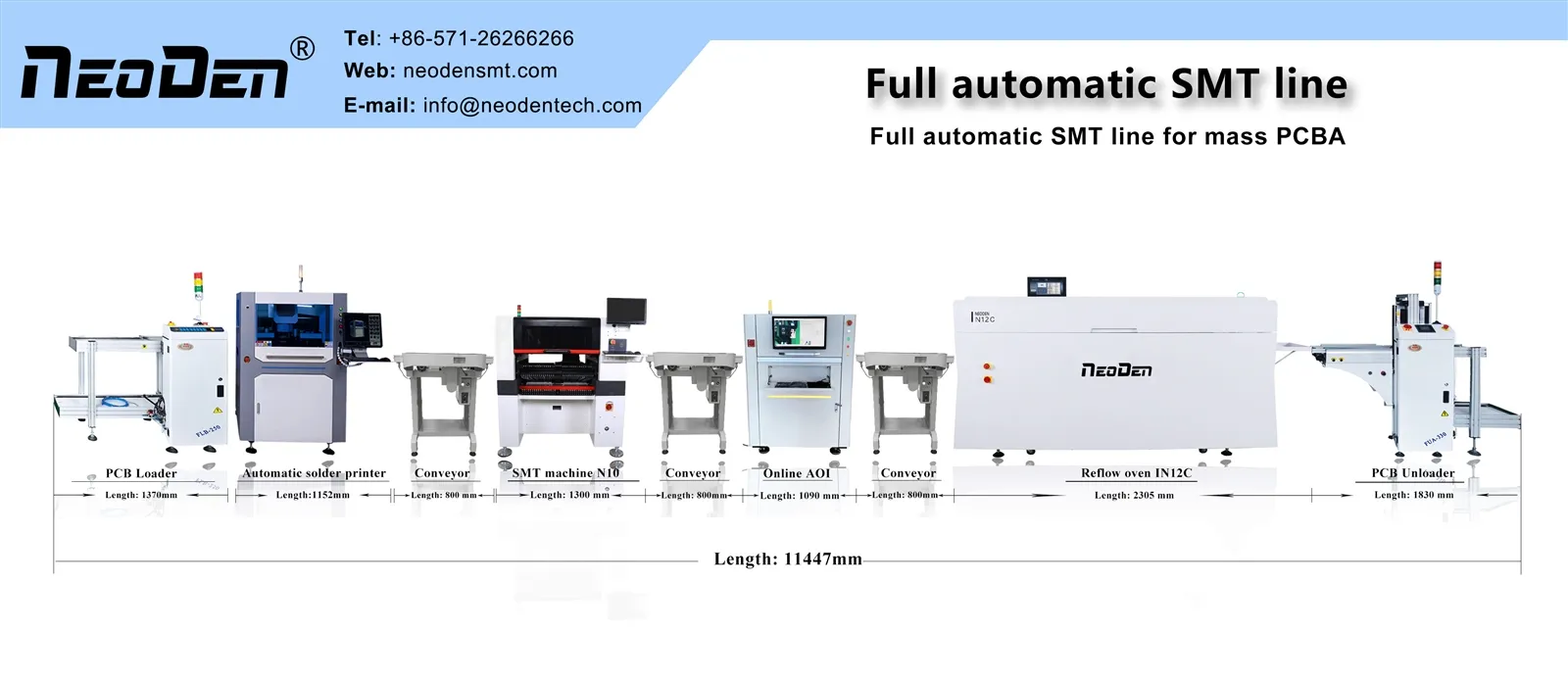

Features of NeoDen SMT AOI Machine
Inspection system Application: After stencil printing, pre/post reflow oven, pre/post wave soldering, FPC etc.
Program mode: Manual programming, auto programming, CAD data importing
Inspection Items
1. Stencil printing: Solder unavailability, insufficient or excessive solder, solder misalignment, bridging, stain, scratch etc.
2. Component defect: missing or excessive component, misalignment, uneven, edging, opposite mounting, wrong or bad component etc.
3. DIP: Missing parts, damage parts, offset, skew, inversion, etc
4. Soldering defect: excessive or missing solder, empty soldering, bridging, solder ball, IC NG ,copper stain etc.
Calculation Method: Machine learning, color calculation, color extraction, gray scale operation, image contrast.
Inspection mode: PCB fully covered, with array and bad marking function.
SPC statistics function: Fully record the test data and make analysis, with high flexibility to check production and quality status.
