SMD Pick And Place CCD
NeoDen4 SMD Pick and Place CCD Video
Feature
NeoDen4 SMD pick and place CCD mounting head was designed in a suspended, fully symmetric and high degree of coupling way, ensure it can mount components with higher space, more gentle and more efficient equipped with four high precision mounting heads, mount at the same time with 360 degrees rotation at -180 to 180.
Use standard&generalized nozzles which can help purchase&replace convenient and life assured.
Specification
| Product name | NeoDen4 SMD Pick and Place CCD | Feeders | 48pcs |
| Machine Style | Single Gantry with 4 Heads | Average working power | 220V/160W |
| Placement Rate | 5000PCS /H (vision off), 4000PCS/H (vision on) | Component Range | Smallest Size: 0201 |
| External Dimension | L 680*W 870*H 480mm | Biggest Size: TQFP240 | |
| Applicable PCB Area | 350mm*400mm | Max Height: 5mm |
Details
Auto Rails
A. Support connect to conventional conveyor directly.
B. Set the feeding position at anywhere.
C. Mount overlong boards easily.

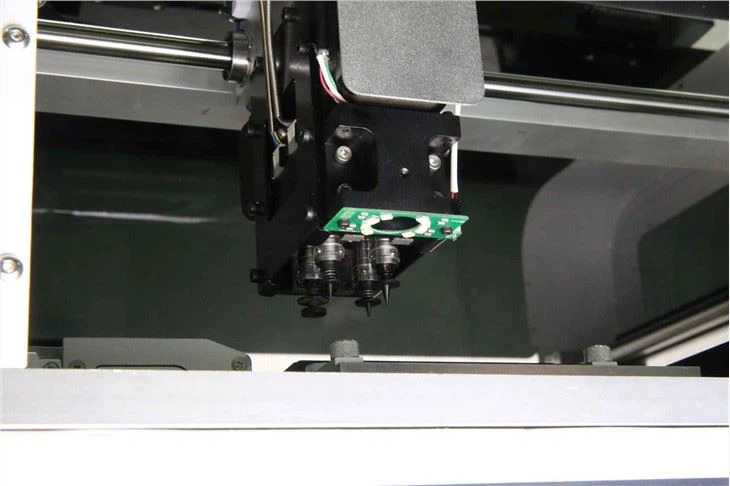

Four Nozzles
Any size nozzle can be installed
Designed in a suspended, fully symmetric
Mount at the same time with 360 degrees

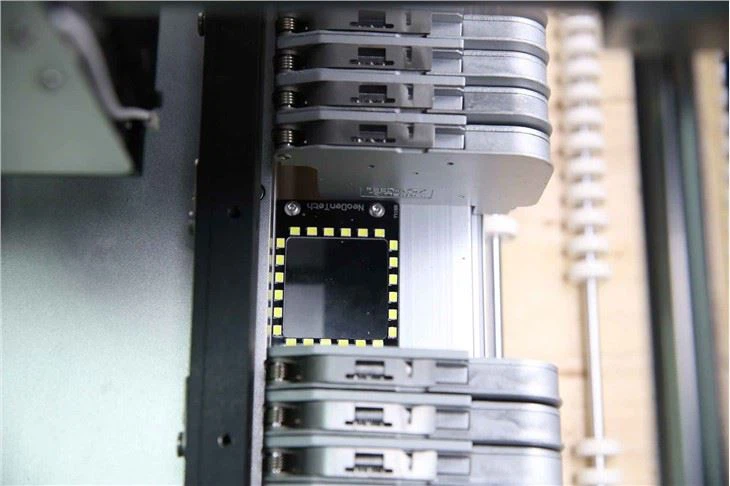

Vision System
(up-looking and down-looking camera)
Equip with high speed industry CCD cameras
Highly improved accuracy of placement from 0201 to BGA

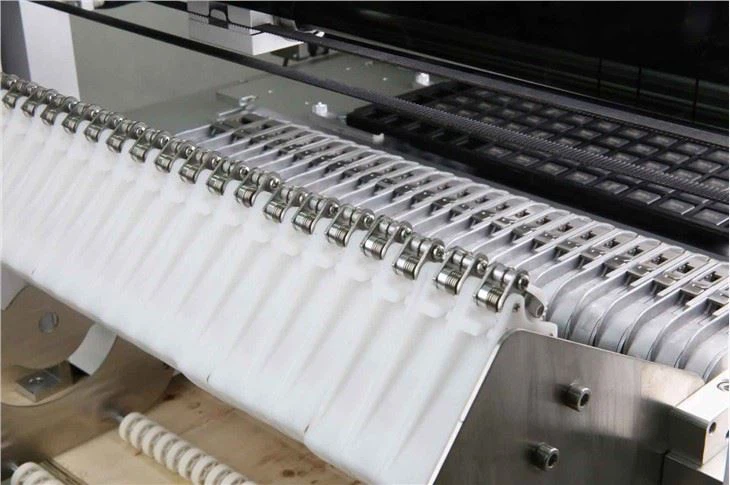

Electronic Feeders
8mm tape-and-reel feeders
Adopts feeding error corrections technique
handle up to 5 separate tubes
Packaging & Shipping
Packaging
One piece in one wooden case
Suitable quantity to an export wooden case
Other packing accessories in regular
Customer required packing is available
Shipping
by air, sea, or express
Delivery time
About 15~30 days after order details and production confirmed.
FP2636 Solder Printer
1. Letter mark for each regulating handle, better and easier to operate.
2. Rulers of stencil fixed frame for reference lines, ensure the levelness between stencil and PCB.
Reflow Oven IN6
Original high-performance aluminum alloy heating plate instead of heating pipe, both energy-saving and high-efficient, and transverse temperature difference is less than 2℃.
Original built-in soldering smoke filtering system, elegant appearance and eco-friendly.
